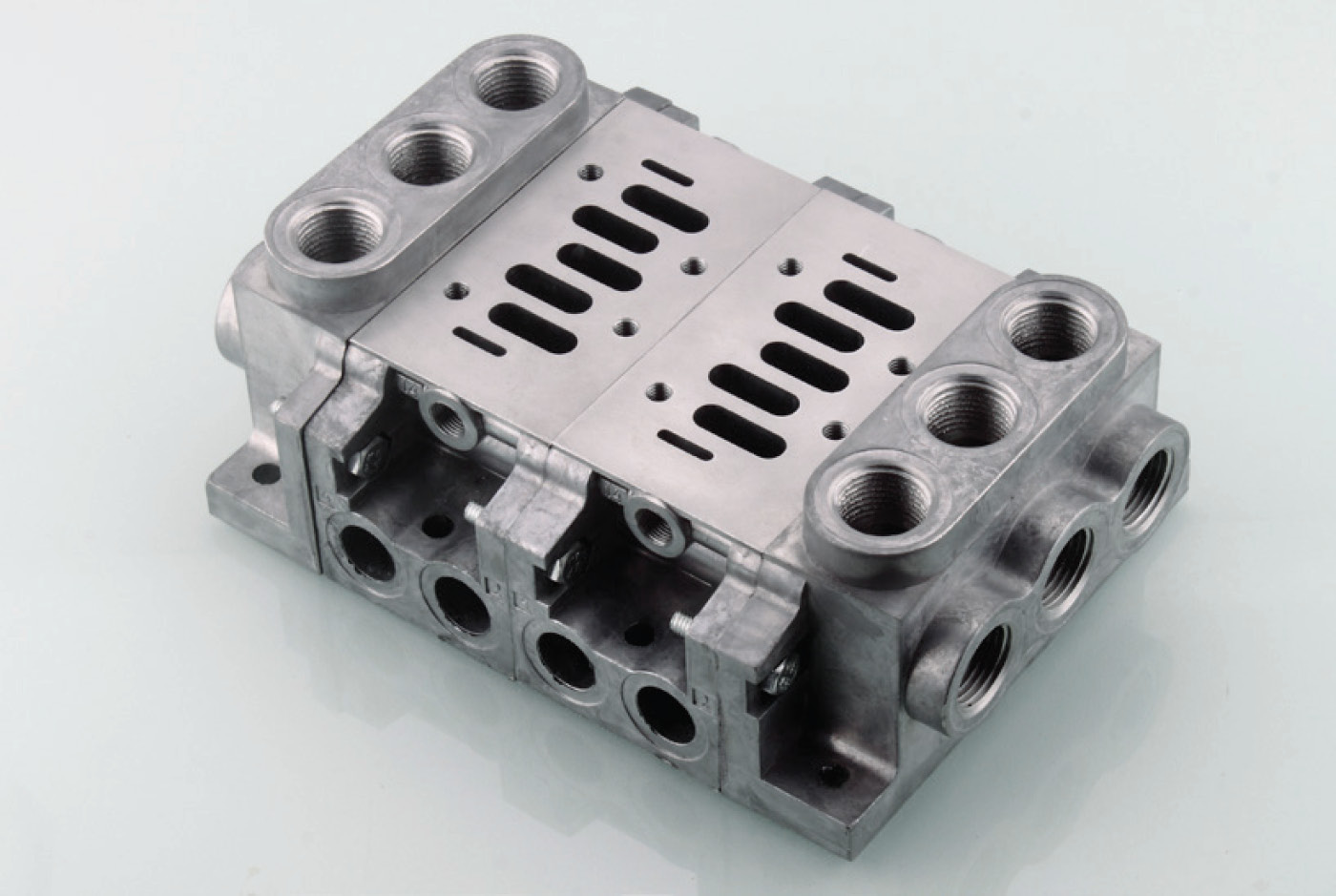

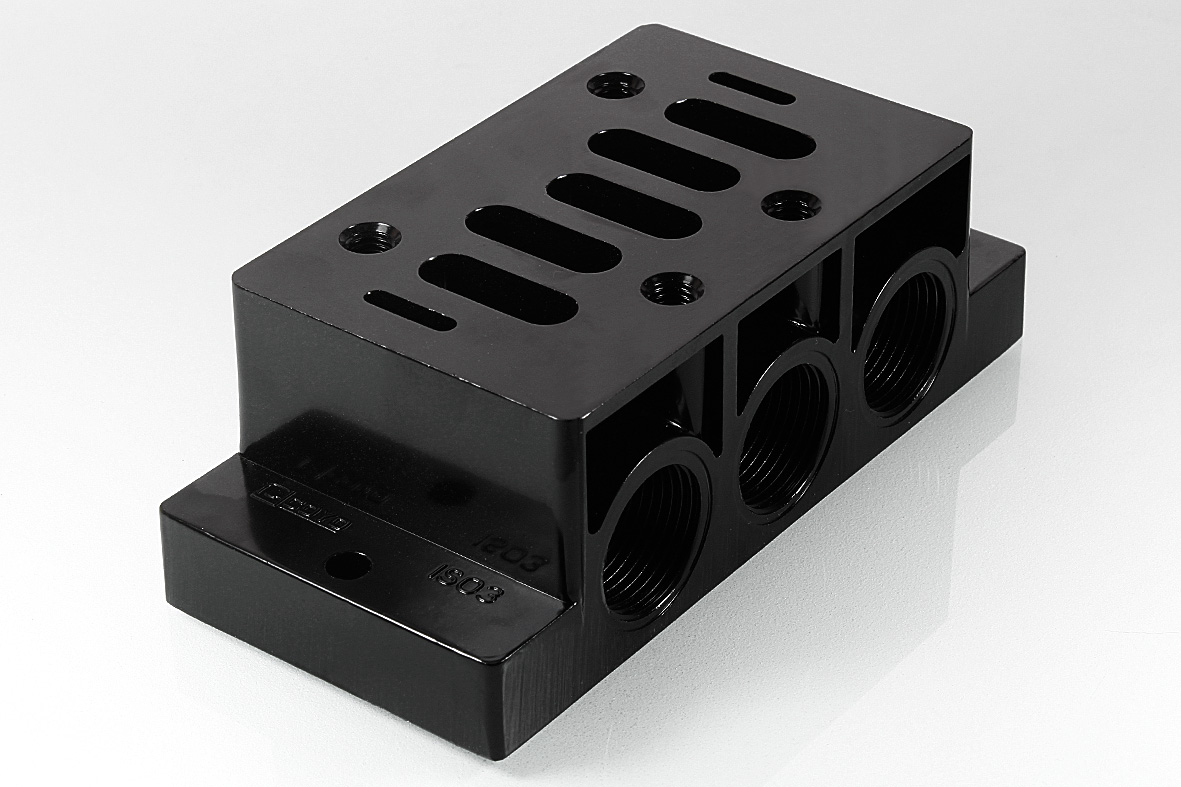

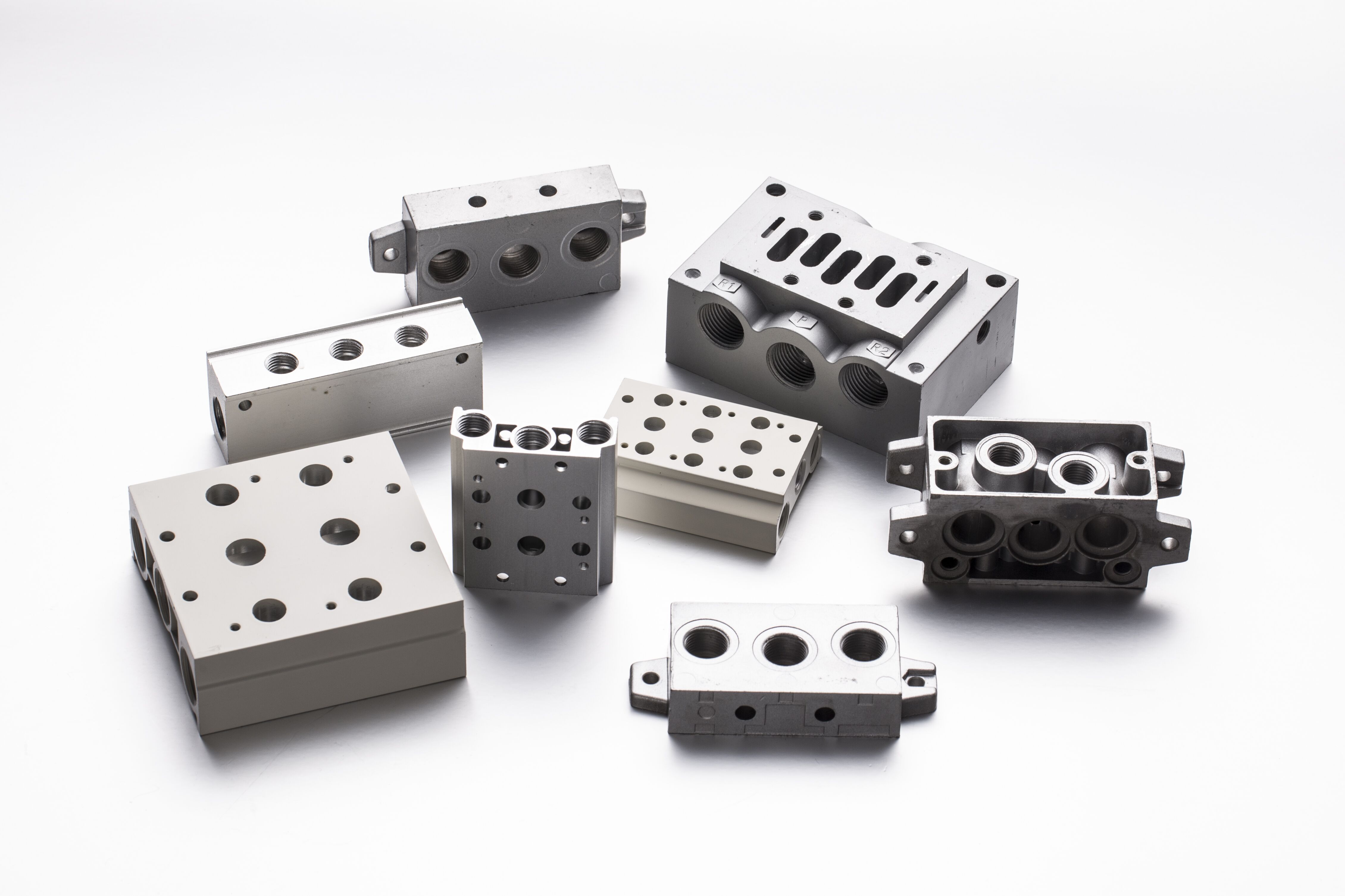

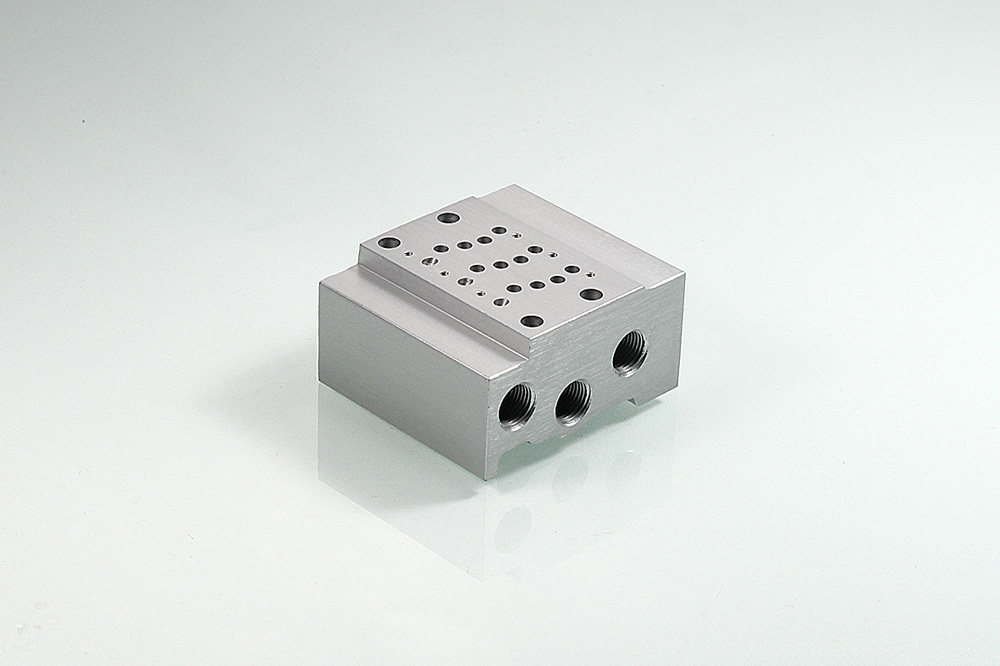

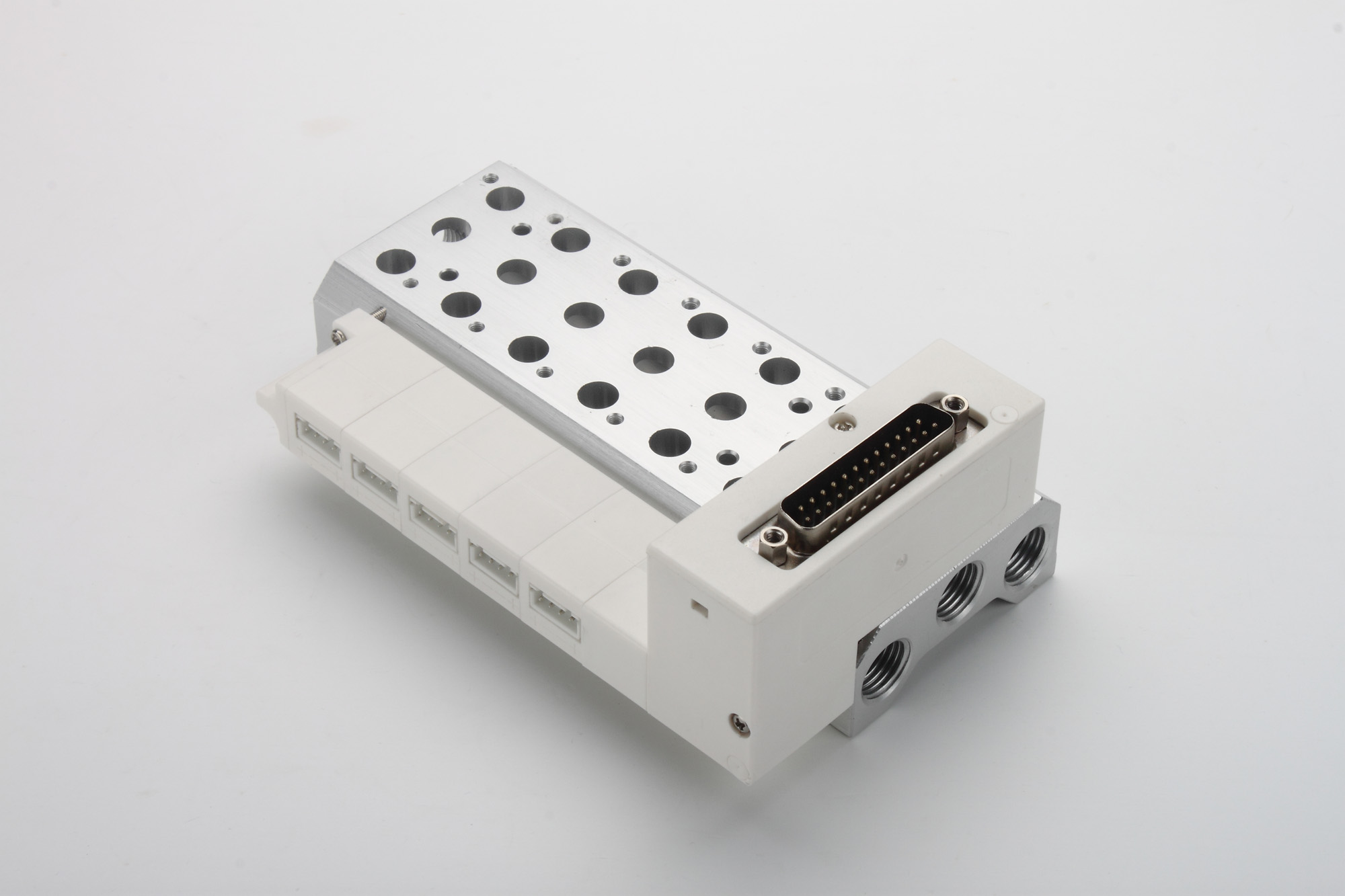

Valve manifold is an assembly that combines multiple valves into a single unit. It is used to control the flow of fluids (gases or liquids) in various industrial applications. Valve manifolds are commonly found in instrumentation and control systems, and they are essential for the proper functioning of processes such as pressure and temperature measurement, flow regulation, and fluid isolation. Here are the key aspects of valve manifolds:
1. Types of Valve Manifolds:
• 2-Valve Manifold: Typically used for pressure instruments, allowing for isolation and venting.
• 3-Valve Manifold: Commonly used for differential pressure transmitters, facilitating isolation, equalization, and venting.
• 5-Valve Manifold: Similar to the 3-valve type but with additional valves for further isolation and venting, used for more complex systems.
2. Components:
• Isolation Valves: Used to block or isolate the process fluid from the instrument.
• Equalizing Valves: Allow for the balancing of pressure between high and low sides in differential pressure applications.
• Venting/Bleed Valves: Enable the removal of trapped air or fluid from the system.
3. Materials:
• Valve manifolds are constructed from various materials depending on the application, such as stainless steel, carbon steel, and exotic alloys for corrosive environments.
4. Applications:
• Oil and Gas: For controlling the flow and pressure in pipelines and drilling operations.
• Chemical Processing: To regulate the flow of chemicals in production processes.
• Power Generation: For monitoring and controlling steam and water in power plants.
• Pharmaceutical: Ensuring precise control and measurement in drug manufacturing.
5. Advantages:
• Space Efficiency: Combines multiple valves into a compact unit, saving space.
• Ease of Installation: Simplifies the installation process, reducing the need for extensive piping.
• Improved Safety: Facilitates safe isolation and maintenance of instruments.
• Cost-Effective: Reduces the need for individual valve installations and associated fittings.
6. Operation:
• Valve manifolds are operated manually or can be automated with actuators for remote control.
