When it comes to industrial machinery, one of the most critical components is the cylinder, which converts energy into mechanical motion. Cylinders are essential for a wide range of applications, from lifting heavy loads to pushing, pulling, and performing various tasks in automation systems. The two most common types of cylinders are pneumatic cylinders and hydraulic cylinders. Both have their distinct advantages, but understanding their differences is crucial to selecting the right one for your specific needs.
In this article, we will compare pneumatic cylinders and hydraulic cylinders, focusing on their differences, advantages, disadvantages, and the applications where each is best suited. By the end of this guide, you will have a clear understanding of which cylinder technology is right for your application.
Before diving into a detailed comparison, let's first define both types of cylinders:

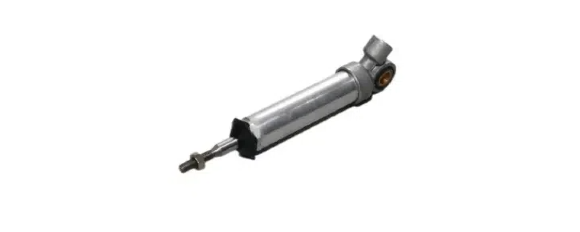

Pneumatic Cylinders: These cylinders use compressed air to create linear motion. The air pressure is applied to a piston inside the cylinder, which moves in response to the force generated by the compressed air. Pneumatic cylinders are commonly found in systems that require quick, precise movements, such as in packaging machinery, automation lines, or robotics.
Hydraulic Cylinders: These cylinders use pressurized hydraulic fluid (usually oil) to create motion. Hydraulic pressure is applied to the piston, and this force is transmitted through the fluid, causing the piston to move. Hydraulic cylinders are typically used in heavy-duty applications where high force is required, such as in construction equipment, industrial machinery, and lifting devices.
Pneumatic Cylinders: The power source for pneumatic cylinders is compressed air. Compressed air is inexpensive, readily available, and easy to control, making it ideal for systems that require moderate force and speed.
Hydraulic Cylinders: Hydraulic cylinders rely on pressurized hydraulic fluid, typically oil. Hydraulic fluid provides a much higher energy density than compressed air, making hydraulic cylinders ideal for heavy-duty applications where significant force is required.
Pneumatic Cylinders: Pneumatic cylinders generate lower force compared to hydraulic cylinders. The force they can exert is limited by the pressure of the compressed air. While pneumatic cylinders are suitable for light to medium-duty tasks, they are not capable of handling extreme loads.
Hydraulic Cylinders: Hydraulic cylinders are capable of delivering very high forces. This makes them ideal for tasks that require substantial lifting or pushing power, such as in construction, mining, or manufacturing industries.
Pneumatic Cylinders: Pneumatic cylinders are known for their high-speed operation. They can move quickly and are highly responsive, making them suitable for applications that require rapid motion and precision, such as packaging and assembly lines.
Hydraulic Cylinders: While hydraulic cylinders provide slower speeds compared to pneumatic cylinders, they offer exceptional precision and smooth movement under heavy loads. Their slower, more controlled motion makes them ideal for tasks where fine control is essential.
Pneumatic Cylinders: Pneumatic systems are relatively simple to control and maintain. The compressed air can be easily regulated using valves and pressure regulators. Additionally, pneumatic systems generally have fewer components that can wear out, making maintenance more straightforward and cost-effective.
Hydraulic Cylinders: Hydraulic systems are more complex to control, and they require specialized maintenance to manage the hydraulic fluid and prevent leaks. Hydraulic systems also require regular checks of the fluid levels and filtration systems, as contamination can affect performance and longevity.
Pneumatic Cylinders: Pneumatic cylinders are typically less expensive than hydraulic cylinders. The air compressors required for pneumatic systems are also more affordable, making them a cost-effective solution for applications where high force is not essential.
Hydraulic Cylinders: Hydraulic cylinders and their associated systems are more expensive due to the need for pumps, reservoirs, and fluid maintenance systems. The higher power output and precision offered by hydraulic systems come at a premium cost.
Pneumatic Cylinders: Pneumatic cylinders are generally smaller, lighter, and more compact compared to hydraulic cylinders. They are available in a wide variety of sizes and designs to accommodate different applications, making them a versatile option for lighter and space-constrained applications.
Hydraulic Cylinders: Hydraulic cylinders tend to be bulkier and more complex in design. Due to the high pressure required to operate them, they are generally larger and heavier, which makes them suitable for heavy-duty machinery but less ideal for applications with space or weight restrictions.
Pneumatic Cylinders: Pneumatic systems are generally considered less energy-efficient compared to hydraulic systems. Compressed air is often less efficient than hydraulic fluid in transmitting force, and energy losses in the form of air leakage and friction can reduce overall system efficiency.
Hydraulic Cylinders: Hydraulic systems are more energy-efficient than pneumatic systems because hydraulic fluid has a higher energy density. However, hydraulic systems can also lose efficiency due to fluid leakage or improper maintenance.
Pneumatic cylinders offer several advantages that make them suitable for certain applications:
Simplicity and Cost-effectiveness: Pneumatic systems are straightforward to set up and operate, with lower initial costs compared to hydraulic systems. This makes them ideal for industries looking for budget-friendly automation solutions.
Speed: Pneumatic cylinders are quick to operate, making them ideal for applications where speed is crucial, such as in packaging, sorting, and assembly lines.
Low Maintenance: Pneumatic cylinders have fewer parts that require maintenance, and their use of compressed air means there are fewer risks associated with fluid leaks or contamination.
Clean and Safe Operation: Pneumatic systems are cleaner than hydraulic systems, as they do not require oil or other fluids. This makes them ideal for industries like food and beverage packaging, pharmaceuticals, and electronics manufacturing, where cleanliness is important.
Hydraulic cylinders have their own set of advantages, making them the preferred choice for heavy-duty applications:
High Force Output: Hydraulic cylinders provide a much higher force than pneumatic cylinders, making them suitable for tasks such as lifting heavy loads or moving large machinery.
Precision and Control: Hydraulic cylinders are known for their smooth and precise movement, even under high pressure, which is essential for applications requiring accurate control and fine adjustments.
Durability: Hydraulic systems are highly durable and can withstand harsh conditions and heavy workloads without significant wear. This makes them ideal for industries such as construction, mining, and manufacturing.
Better Energy Efficiency: Hydraulic cylinders are more energy-efficient than pneumatic cylinders, making them suitable for applications where high energy efficiency is a priority.
The choice between pneumatic and hydraulic cylinders depends largely on your application’s requirements:
Choose Pneumatic Cylinders if:
You need high-speed, quick-response movements.
Your application involves light to medium-duty tasks.
You have limited space or require compact designs.
You need a cost-effective solution with minimal maintenance.
Cleanliness is important, such as in food, pharmaceutical, or electronic applications.
Choose Hydraulic Cylinders if:
You require high force output for heavy-duty tasks.
Precision and smooth, controlled movements are critical.
You are working in industries like construction, mining, or manufacturing where heavy loads are common.
Energy efficiency and durability are priorities.
Your application involves harsh conditions or environments that require robust systems.
Both pneumatic and hydraulic cylinders have their strengths and are designed for specific tasks. Pneumatic cylinders are an excellent choice for applications that require speed, precision, and cost-effectiveness for light to medium-duty tasks. In contrast, hydraulic cylinders are more suitable for applications that demand high force, precision, and control in heavy-duty scenarios.
By understanding the differences and advantages of each type, you can make an informed decision about which cylinder technology is the best fit for your needs. Companies like Ningbo Langch International Trade Co., Ltd. offer a range of pneumatic cylinders, providing solutions tailored to your specific requirements. Whether you’re looking for compact pneumatic cylinders for high-speed packaging or heavy-duty hydraulic cylinders for construction equipment, they can help you find the right solution for your application.
