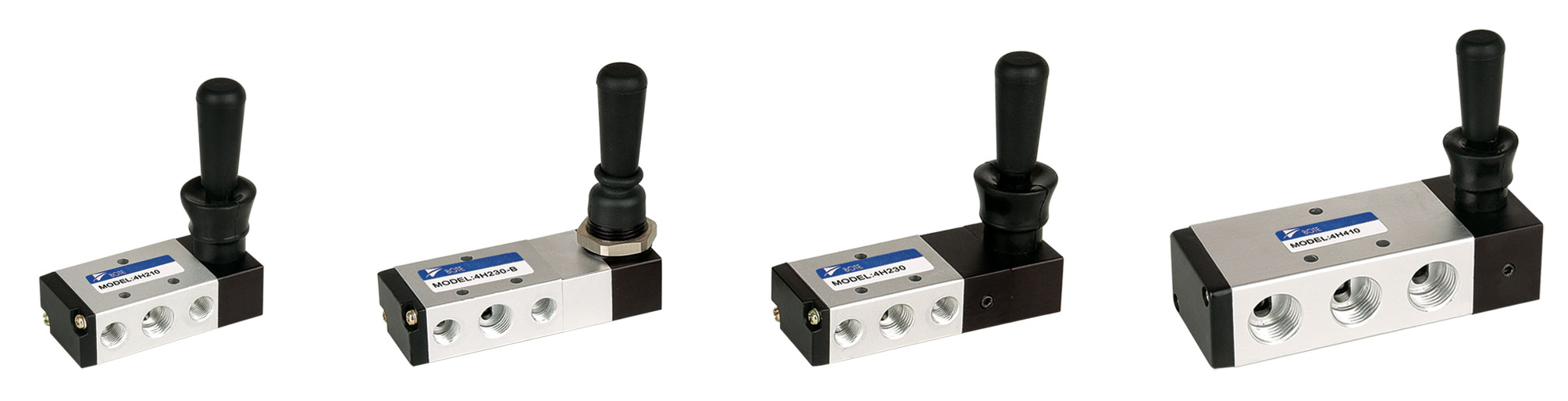

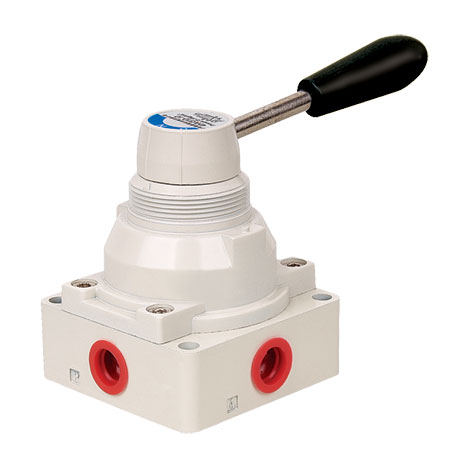

4HV230, 4F210, 4H210, 4R210, HSV
Langch
Manual control pneumatic valve is a type of valve used in pneumatic systems to manually control the flow of compressed air. These valves are operated by hand, typically via a lever, knob, or push-button, allowing the user to start, stop, or regulate the flow of air through the system.
Key Features
1. Manual Operation: Allows for direct human control without the need for electronic or pneumatic actuation.
2. Variety of Actuators: Available with different types of actuators, such as levers, knobs, push-buttons, and toggle switches.
3. Durability: Constructed from robust materials like brass, stainless steel, or high-quality plastic to withstand industrial environments.
4. Different Configurations: Comes in various configurations such as 2-way, 3-way, and 4-way, depending on the complexity of the control required.
5. Compact Design: Small and lightweight, making them easy to integrate into various pneumatic systems.
6. Positive Sealing: Ensures a tight seal to prevent air leaks when the valve is closed.
Applications
1. Industrial Automation: Used for manual control of air flow in automated systems and machinery.
2. Machinery and Equipment: Integrated into equipment that requires manual control of pneumatic actuators and cylinders.
3. Maintenance and Testing: Employed during maintenance or testing procedures to manually control pneumatic lines.
4. Packaging and Material Handling: Utilized in packaging machines and material handling systems for manual control of air operations.
5. Laboratory and Testing Equipment: Applied in laboratory setups and testing equipment for precise manual control of air flow.
Types of Manual Control Pneumatic Valves
1. 2-Way Valves: Controls the flow of air between two ports, typically used for simple on/off control.
2. 3-Way Valves: Manages the flow of air between three ports, allowing for more complex control, such as switching between two circuits or venting a port.
3. 4-Way Valves: Used for controlling double-acting cylinders or actuators, directing air to different ports based on the valve position.
Selection Criteria
• Type of Actuator: Choose between lever, knob, push-button, or toggle switch based on the desired operation method.
• Material Compatibility: Ensure the valve material is suitable for the operating environment and the type of air used.
• Pressure Rating: Select a valve that can handle the maximum operating pressure of your pneumatic system.
• Port Size: Match the valve’s port size with the tubing or piping used in your system.
• Configuration: Choose the appropriate configuration (2-way, 3-way, 4-way) based on the control requirements.
Example Specifications
• Material: Commonly made from brass, stainless steel, or high-grade plastic.
• Pressure Range: Typically designed to operate at pressures up to 10 bar (145 psi) or higher.
• Temperature Range: Suitable for a wide range of operating temperatures, often from -20°C to 80°C (-4°F to 176°F).
• Port Sizes: Available in various port sizes, such as 1/8”, 1/4”, 3/8”, or 1/2” NPT or BSP.
• Actuator Type: Options include lever, knob, push-button, or toggle switch.
Examples
1. Lever-Operated 2-Way Valve: Simple on/off control for starting and stopping air flow.
2. Push-Button 3-Way Valve: Used for switching air flow between two outlets or venting.
3. Knob-Operated 4-Way Valve: Allows control of double-acting cylinders by directing air to different ports.
Benefits
• Direct Control: Provides immediate and intuitive control over pneumatic systems.
• Simplicity: No need for complex electronic controls or actuators.
• Reliability: Robust construction ensures long-lasting performance in industrial environments.
• Flexibility: Suitable for a wide range of applications and environments.
Manual control pneumatic valves are essential components in systems where direct and reliable control of air flow is required. Their versatility and simplicity make them ideal for various industrial, maintenance, and testing applications.
