| Material: | |
|---|---|
| Quantity: | |
MC,SPP,STP-H,SFP,STM,STP
Langch
Powder coating silicone plugs are specialized devices used to mask or protect certain areas of a component during the powder coating process. These plugs are made from high-temperature silicone rubber, which can withstand the curing temperatures required for powder coating without degrading. They are designed to fit into holes, threaded areas, or other features of a part that need to be kept free of powder coating.
Key Characteristics of Powder Coating Silicone Plugs:
1. High Temperature Resistance:
• Material: Made from silicone rubber, which can typically withstand temperatures up to 600°F (315°C) or higher, depending on the specific formulation.
• Function: Ensures the plugs remain intact and do not degrade during the powder coating curing process.
2. Chemical Resistance:
• Durability: Resistant to the chemicals and solvents used in cleaning and pre-treatment processes before powder coating.
• Application: Ensures the plugs can be reused multiple times without deteriorating.
3. Flexibility and Conformability:
• Design: Flexible enough to conform to various shapes and sizes, ensuring a tight seal to prevent powder from entering masked areas.
• Ease of Use: Can be easily inserted and removed, making them convenient for operators.
4. Variety of Shapes and Sizes:
• Customization: Available in various shapes (tapered, flanged, threaded) and sizes to fit different applications and component geometries.
• Versatility: Can be used for masking holes, studs, bolts, and other features.
Common Types of Powder Coating Silicone Plugs:

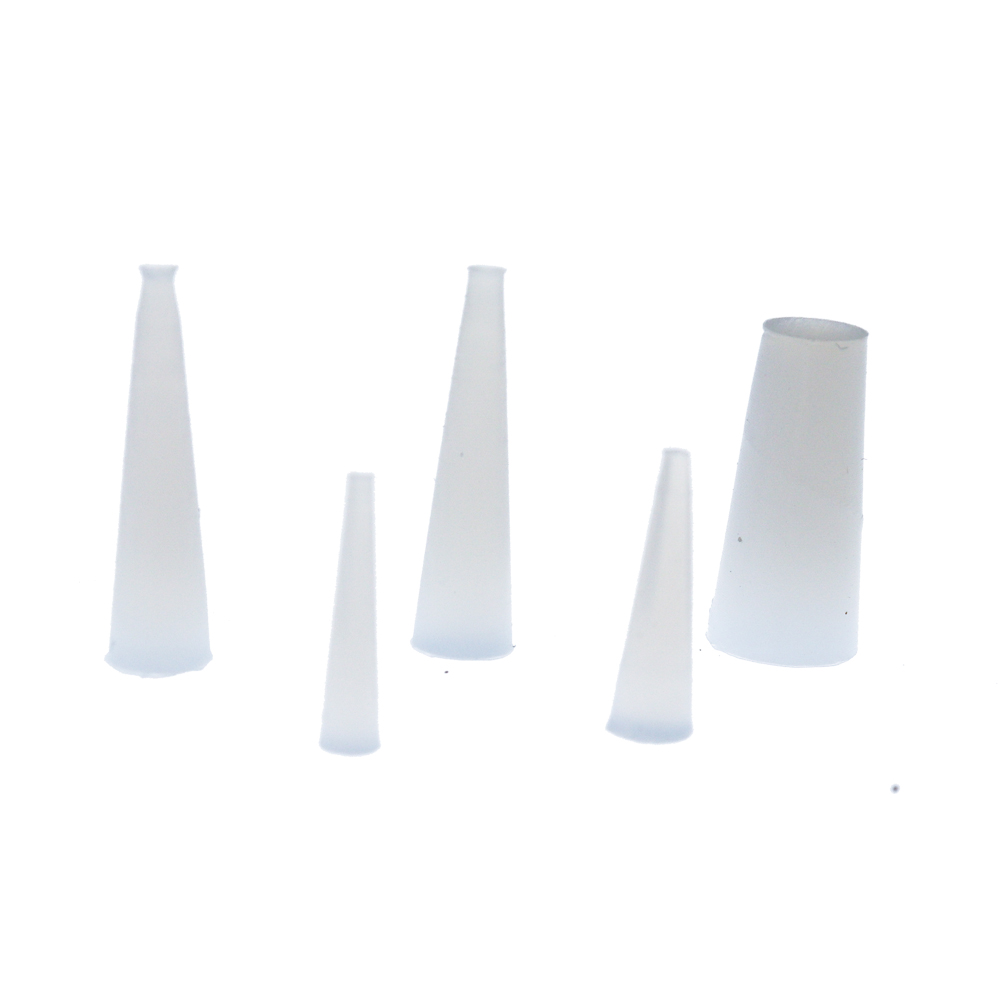

1. Tapered Plugs:
• Design: Cone-shaped plugs that can fit a range of hole sizes due to their tapered design.
• Application: Ideal for masking through-holes and blind holes.
2. Flanged Plugs:
• Design: Tapered plugs with an added flange at one end to prevent the plug from being pushed through the hole.
• Application: Useful for masking threaded holes or areas where a secure seal is required.

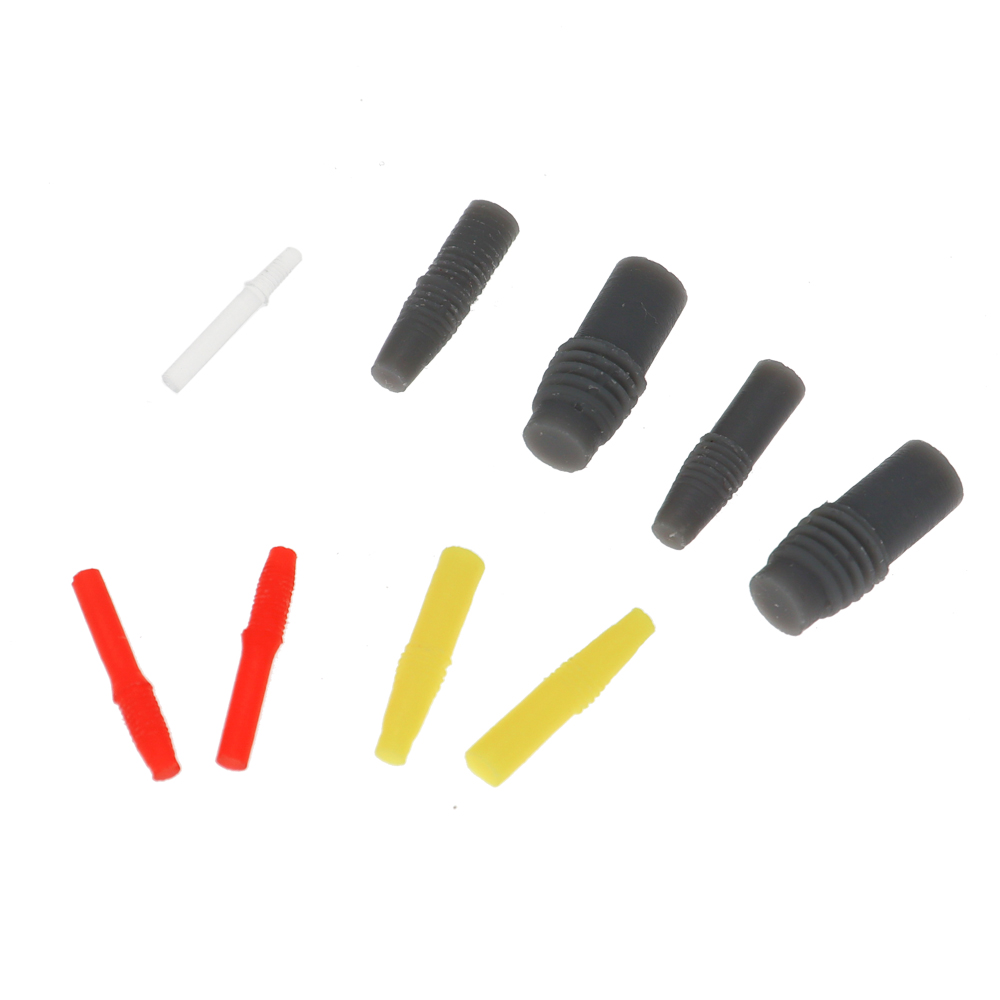

3. Threaded Plugs:
• Design: Plugs with threaded designs to screw into threaded holes, providing a secure fit.
• Application: Specifically for masking threaded holes to protect the threads during powder coating.

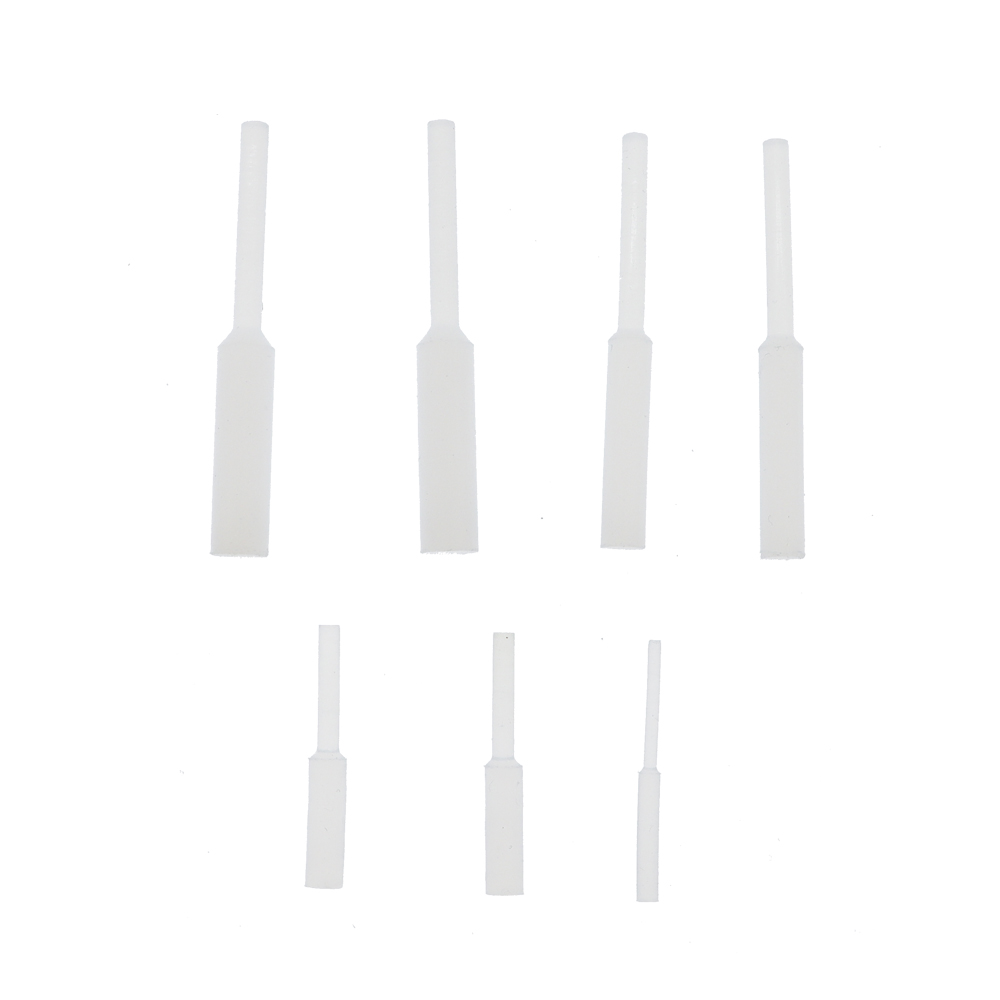

4. Pull Plugs:
• Design: Tapered or cylindrical plugs with a pull tab for easy removal after the coating process.
• Application: Suitable for deep or hard-to-reach holes where a standard plug might be difficult to remove.
Applications of Powder Coating Silicone Plugs:
1. Automotive Industry:
• Use: Masking engine components, brake parts, and other metal parts during powder coating to ensure precise coating and protection of critical areas.
2. Aerospace Industry:
• Use: Masking aircraft components that require high precision and durability in their coatings.
3. Manufacturing and Fabrication:
• Use: Masking various metal parts and assemblies during powder coating to ensure specific areas remain uncoated.
4. Electronics:
• Use: Protecting delicate or sensitive areas of electronic components from powder coating.
5. General Industrial Applications:
• Use: Any application requiring masking of areas during high-temperature coating processes.
Maintenance and Reuse:
1. Cleaning:
• Post-Use: Clean the plugs with appropriate solvents to remove any residual powder coating material.
• Storage: Store in a cool, dry place away from direct sunlight to maintain their flexibility and effectiveness.
2. Inspection:
• Regular Check: Inspect for any signs of wear, tearing, or degradation before reuse.
• Replacement: Replace any plugs that show signs of damage to ensure a proper seal and effective masking.
Conclusion
Powder coating silicone plugs are essential tools for ensuring precision and quality in the powder coating process. Their high temperature and chemical resistance, flexibility, and variety of shapes and sizes make them ideal for protecting specific areas of components from coating. Proper maintenance and inspection ensure these plugs can be reused multiple times, providing cost-effective and reliable masking solutions across various industries.
