Tire Pressure Monitoring Systems (TPMS) are essential for vehicle safety. A faulty TPMS sensor can lead to poor handling, reduced fuel efficiency, and dangerous blowouts.
In this article, you’ll learn how to diagnose, fix, and replace a faulty tire pressure sensor. By following these steps, you can ensure your vehicle operates safely and efficiently.
A tire pressure sensor is a small device installed inside each tire, typically attached to the valve stem. It measures the air pressure in the tire and sends real-time data to your vehicle’s TPMS. If a tire’s pressure falls below the recommended level, the sensor triggers a warning light on your dashboard. The system works to help you avoid driving with under-inflated tires, which can cause unsafe driving conditions.
There are two main types of tire pressure sensors:
● Direct TPMS: These sensors measure the actual air pressure inside each tire and communicate wirelessly with the vehicle’s computer system.
● Indirect TPMS: These systems estimate tire pressure by monitoring the wheel speed, using data from the anti-lock braking system (ABS). If one tire rotates faster than the others, it can indicate lower air pressure.
Type of Sensor | Method of Monitoring | Pros | Cons |
Direct TPMS | Measures actual tire pressure | More accurate, real-time data | More expensive to replace |
Indirect TPMS | Estimates pressure using ABS data | Less expensive, fewer components | Less accurate, depends on wheel speed |
Tire pressure sensors can malfunction for several reasons:
● Battery Failure: Most sensors are powered by batteries, which can wear out over time (usually 5-10 years).
● Physical Damage: Road hazards like potholes or debris can damage the sensor.
● Corrosion: Exposure to moisture and road salts can cause corrosion in the sensor.
● Improper Installation: If sensors are not properly installed, they can malfunction or give inaccurate readings.
Before assuming the sensor is faulty, manually check the air pressure in all tires using a reliable tire pressure gauge. Ensure that each tire is inflated to the recommended level, which can usually be found on a label inside the driver’s door or in the owner’s manual.
If your tire pressure is fine but the warning light remains on, try resetting the TPMS system. Some vehicles allow you to reset the system by pressing a button beneath the dashboard or via the vehicle’s infotainment system. This can help clear minor errors and reset the sensors.
If the TPMS light persists, inspect the valve stems and tires for visible damage. Look for signs of wear, cracks, or corrosion on the valve stem, which could affect the sensor’s performance. If damage is found, the affected sensor may need to be replaced.
Symptom | Description |
TPMS warning light stays on | Indicates sensor malfunction or incorrect tire pressure |
Incorrect pressure readings | Shows pressure that doesn't match actual tire pressure |
False alerts | Continuous alerts despite proper tire inflation |
No data displayed | TPMS system not showing any readings |
Ensure you purchase the correct tire pressure sensor for your vehicle’s make, model, and year. Some vehicles may require specific sensors, while others can use universal sensors that are compatible with many models. If you’re unsure, consult your vehicle's owner’s manual or contact a professional.
You will need a few basic tools for replacing a tire pressure sensor:
● Tire Changer: To remove the tire from the wheel.
● Valve Stem Tool: To remove and install the sensor.
● Torque Wrench: To ensure the sensor is installed with the correct torque.
● Loosen the lug nuts on the wheel:
Before lifting the vehicle, use a lug wrench or impact wrench to loosen the lug nuts on the wheel where the TPMS sensor needs to be replaced. Do not remove them completely at this stage; just break the tightness.
● Lift the vehicle using a jack and secure it with jack stands:
Use a car jack to lift the vehicle off the ground. Be sure to place the jack in the designated lift points (check your vehicle's manual for specific locations). Once the vehicle is raised, insert jack stands for additional safety to ensure the vehicle doesn’t fall. Never work under a car supported only by a jack.
● Remove the wheel from the vehicle:
Once the car is securely lifted, remove the loosened lug nuts and take the wheel off. Place the wheel to the side in a safe spot for the next steps.
● Use a valve core removal tool to release the air from the tire:
Using a valve core removal tool, unscrew the valve core from the valve stem to release all the air from the tire. Make sure to hold the tool in place as you twist to avoid damage to the valve stem. This step is necessary to relieve pressure before removing the tire from the rim, which makes it easier to work with the tire and sensor.
● Use a valve stem removal tool to take out the old sensor:
The TPMS sensor is typically secured to the valve stem with screws or clips. Use a valve stem removal tool to carefully unscrew or unclip the sensor. Take note of its orientation and installation method to make sure you install the new sensor in the same way. If the sensor is damaged or stuck, gently wiggle or rotate it until it comes free.
● Position the new sensor inside the valve stem hole, ensuring it's aligned correctly:
Insert the new TPMS sensor into the valve stem hole. Align it carefully according to the notes you took earlier about the old sensor’s position. Some sensors may come with a new valve stem, so ensure it's correctly installed as per the manufacturer’s instructions.
● Tighten any screws or nuts as specified in the manufacturer’s instructions:
Secure the new sensor by tightening the screws or nuts using the proper tools. Make sure not to overtighten, as this can damage the sensor or the valve stem. Follow the manufacturer's torque specifications to ensure proper installation.
● Use a tire changer to remount the tire onto the rim, ensuring the tire bead is properly seated:
Mount the tire back onto the rim using a tire changer. Carefully position the tire onto the wheel rim and ensure the tire bead is correctly seated on the rim’s edge. This step is important to avoid air leaks and ensure the tire is mounted evenly.
● Inflate the tire to the recommended pressure:
Once the tire is mounted, use an air compressor to inflate the tire to the recommended pressure level. Always check the tire pressure using a tire gauge to confirm it’s at the optimal level. Overinflation or underinflation can both lead to tire wear and performance issues.
Once these steps are completed, your new TPMS sensor should be installed correctly, and the tire will be ready for reinstallation on the vehicle.
Once the tire is mounted and inflated, reinstall the wheel onto the vehicle’s hub. Tighten the lug nuts by hand, and then use an impact wrench to tighten them in a star pattern to ensure even pressure distribution.
After the tire is installed, drive the vehicle at a speed of at least 50 mph for 10-15 minutes. This will allow the TPMS system to recalibrate and recognize the new sensor.
If the system does not reset automatically, you may need to reset it manually. Consult your owner’s manual to locate the TPMS reset button, which is often beneath the dashboard. Hold the button until the TPMS light blinks, then release it. Start the vehicle and check the light after a few minutes.
If the TPMS light remains on after resetting the system and ensuring proper tire pressure, it may indicate a deeper issue. This could be a faulty sensor, a communication problem, or an issue with the vehicle’s TPMS module.
In cases where the issue persists, it’s best to visit a professional mechanic or tire shop. They can perform a comprehensive diagnostic on the TPMS system, identify the faulty component, and replace it as necessary. A professional may also have access to specialized diagnostic tools to pinpoint the exact problem.
Maintaining a functional TPMS is crucial for vehicle safety and performance. By following this guide, you can easily diagnose, repair, or replace faulty tire pressure sensors, ensuring your tires remain in optimal condition. Regular tire pressure checks and prompt repairs will prevent road issues while improving fuel efficiency and handling. Langch offers reliable products and services that help keep your TPMS system running smoothly, providing value through quality and performance.
A: A tire pressure sensor monitors the air pressure inside your tires. It alerts the driver when the pressure drops below a safe level, helping to prevent tire damage and improve vehicle safety.
A: Common signs include the TPMS light staying on, incorrect pressure readings, or frequent alerts about low tire pressure despite properly inflated tires.
A: Yes, you can replace the pressure sensor if you have the right tools and follow the proper steps. However, if unsure, it’s best to seek professional help.
A: The sensor light may stay on if the tire pressure is incorrect, the sensor is damaged, or there is a battery issue. Checking tire pressure and resetting the system may help.

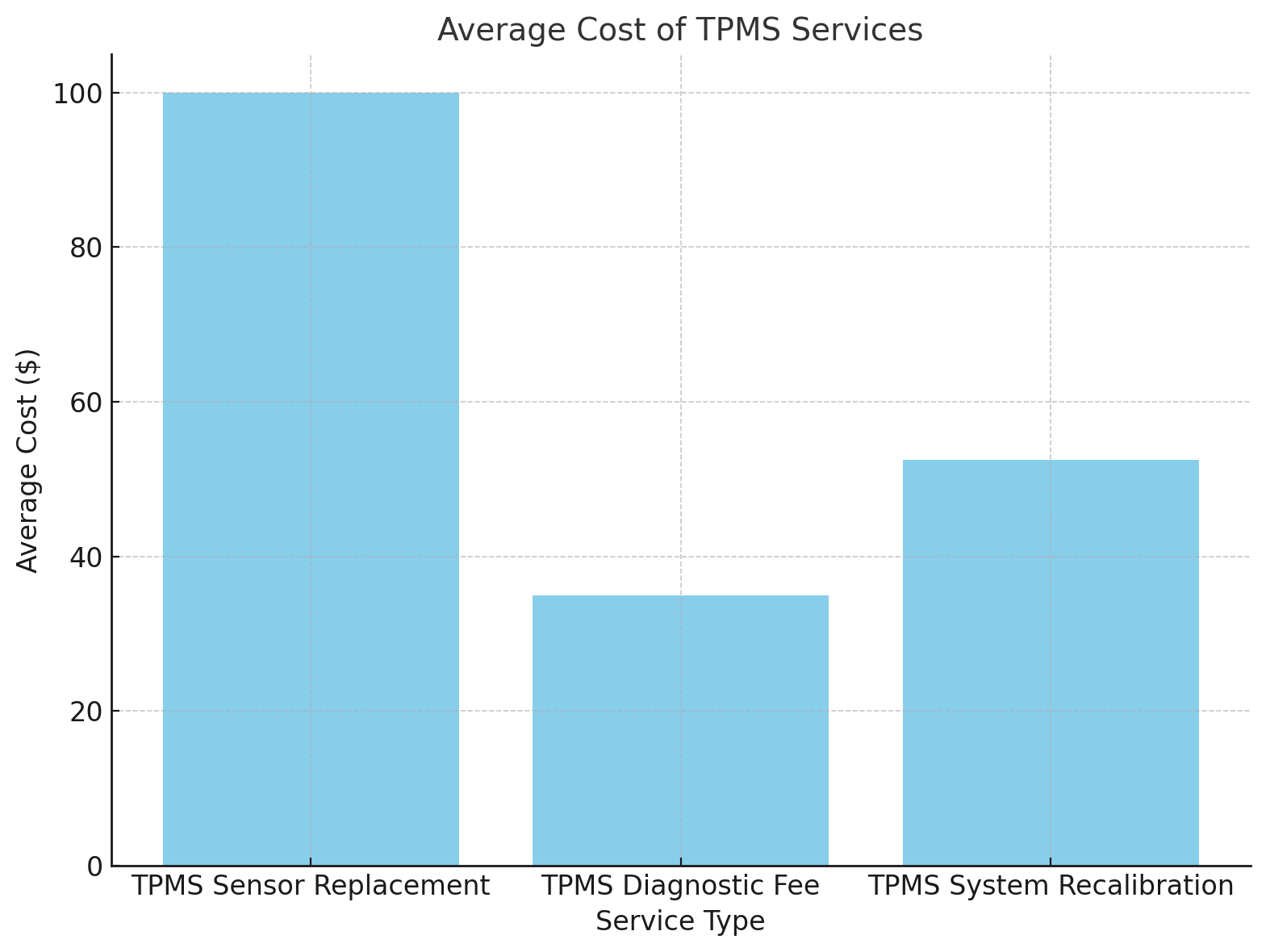

A: The cost of replacing a pressure sensor typically ranges from $50 to $150 per sensor, depending on the vehicle and the sensor type.
