A malfunctioning tire pressure sensor can lead to unsafe driving conditions. When your tire pressure monitoring system (TPMS) alerts you, it's crucial to act quickly.
In this article, we'll guide you through replacing your TPMS sensor, explaining when it needs replacement and how to handle the process step by step. You’ll learn how to identify sensor issues and install a new one for improved vehicle safety.
A tire pressure sensor is a small device located inside the tire, typically attached to the valve stem. Its main function is to measure the air pressure within the tire and transmit this data to the vehicle’s onboard computer. If the air pressure falls below a certain threshold, the sensor triggers a warning light on your dashboard, alerting you that the tire needs attention.
There are two primary types of TPMS sensors:
● Direct TPMS Sensors: These sensors are located inside the tire, directly on the valve stem. They provide real-time pressure readings and are more accurate than indirect systems.
● Indirect TPMS Sensors: These sensors don't directly measure tire pressure. Instead, they use the vehicle's ABS (anti-lock braking system) to detect wheel speed variations, which indicate under-inflation.
When replacing your tire pressure sensor, it’s important to know which type you have to ensure compatibility with the replacement part.
One of the most common signs that your TPMS sensor needs replacement is the TPMS warning light on your dashboard. This light typically comes on when one or more tires are underinflated. However, if the light remains on despite having properly inflated tires, it could mean the sensor itself is malfunctioning.
Other symptoms of a faulty TPMS sensor include:
● Flashing warning lights: The TPMS light may flash for a few minutes and then remain on, indicating sensor failure.
● Inaccurate tire pressure readings: If the tire pressure readings on your dashboard seem off or are inconsistent, the sensor could be the problem.
● Low battery alert: Most TPMS sensors have built-in batteries, and when the battery is low or dead, the sensor will need replacing.
If you encounter any of these issues, it’s time to replace your tire pressure sensor.
Before you begin, make sure you have the following tools and materials:
● Valve stem removal tool: This tool helps you safely remove the valve core to deflate the tire.
● Torque wrench: A torque wrench is essential to ensure that the new sensor is tightened to the manufacturer’s specified torque value.
● Jack and jack stands: To lift the vehicle off the ground and safely remove the wheel.
Tool | Purpose |
Valve Stem Removal Tool | To deflate the tire by removing the valve core. |
Torque Wrench | To securely tighten the new pressure sensor. |
Car Jack & Jack Stands | To lift the vehicle and safely remove the wheel. |
Depending on your situation, you may also need the following:
● TPMS programming tool: Some vehicles require the new sensor to be programmed to the vehicle’s onboard computer. This tool ensures the sensor is properly synced with your car.
● Tire bead sealant: Helps to maintain a tight seal between the tire and the rim.
Having these tools ready will make the replacement process smoother and more efficient.
Before you begin the process of replacing the tire pressure sensor, it’s essential to prioritize safety. Ensure your vehicle is parked on a flat and stable surface. Always engage the parking brake to prevent the car from rolling while you work. It’s also important to wear safety gloves and safety glasses to protect yourself from debris, dirt, and any potential hazards that may arise during the replacement.
To start, you’ll need to loosen the lug nuts on the wheel that contains the malfunctioning TPMS sensor. Using a lug wrench, turn the lug nuts counterclockwise, but do not remove them completely just yet.
Next, use a car jack to lift the vehicle off the ground. Make sure to place the jack under the designated lift points on the car to avoid damage to the vehicle. Once the vehicle is raised, secure it with jack stands to ensure it is stable and won’t shift while you work.
After the car is securely lifted, remove the lug nuts completely and set them aside. Now, carefully remove the wheel from the vehicle and place it in a safe spot.
With the wheel removed, the next step is to demount the tire. Begin by deflating the tire to release the air. Use a valve core removal tool to remove the valve core, which will allow the air to escape from the tire. Be sure to keep the valve core in a safe place, as you’ll need it later.
Next, break the tire bead. This step can be done with a tire machine or manually. If you don’t have access to a tire machine, you can use a block of wood and a heavy hammer to apply pressure to the edge of the tire, breaking the seal between the tire and the rim. Once the bead is broken, carefully pull the tire away from the rim to expose the TPMS sensor located on the valve stem.
Now that the sensor is accessible, it’s time to replace it. First, remove the old TPMS sensor by unscrewing or unclipping it from the valve stem. If it’s a clamp-on type, you may need to use a flathead screwdriver to carefully pry it off. Take note of how the old sensor was positioned and installed to ensure the new sensor goes in the same way.
Once the old sensor is removed, position the new TPMS sensor into the valve stem hole. Align the sensor properly, ensuring it fits securely in place. Using a torque wrench, tighten the sensor to the manufacturer’s specified torque value to ensure a proper seal and avoid damage to the valve stem or sensor.
With the new sensor in place, it’s time to remount the tire. Use a tire changer to mount the tire back onto the rim, making sure it’s seated correctly along the edges. This step is crucial to avoid air leaks and ensure a proper seal between the tire and the rim.
Once the tire is securely mounted, inflate it to the recommended tire pressure. The correct pressure can usually be found on a sticker inside the driver’s door frame or in the vehicle’s manual.
With the tire properly inflated, place the wheel back onto the vehicle’s hub. Hand-tighten the lug nuts to hold the wheel in place. Once the wheel is secured, use a torque wrench to tighten the lug nuts in a star pattern. Tightening the lug nuts in this pattern ensures even distribution of pressure, preventing the wheel from becoming unevenly secured.
Now, remove the jack stands and lower the vehicle back to the ground. Once the car is securely on the ground, perform a final tightening of the lug nuts using the torque wrench to the manufacturer’s specified torque value.
After replacing the TPMS sensor, many vehicles require a reset to ensure the new sensor is properly synced with the car’s onboard system. Some vehicles have a manual reset process, while others may require a TPMS reset tool. Refer to your vehicle’s manual for specific instructions on how to perform the reset.
In addition to resetting the system, some vehicles may require the new sensor’s ID to be programmed or “learned” by the car’s computer. This ensures that the new sensor communicates correctly with the system. If necessary, use a TPMS programming tool to program the new sensor, following the manufacturer’s instructions to ensure the sensor is functioning properly.
Step | Description |
1 | Safety First: Park the vehicle and wear safety gear. |
2 | Remove the Tire: Loosen the lug nuts and lift the vehicle. |
3 | Demount the Tire: Deflate the tire and remove the old sensor. |
4 | Install New Sensor: Place and secure the new sensor. |
5 | Reinstall the Tire: Mount and inflate the tire. |
6 | Reinstall the Wheel: Tighten the lug nuts and lower the vehicle. |
7 | Reset the TPMS: Use a reset tool to sync the new sensor. |
If the sensor is corroded or damaged, it may be difficult to remove. Use a penetrating oil to loosen it, or carefully use a flathead screwdriver to pry it off. If the valve stem is damaged, it might need to be replaced as well.
Ensure that the replacement sensor is compatible with your vehicle’s make, model, and year. Some sensors are universal, but it's always best to check the manufacturer’s specifications before purchasing.
If the TPMS light remains on after installing the new sensor, it could indicate a programming issue. Use a TPMS programming tool to reset and sync the sensor with your vehicle’s system.
In some cases, you may be able to replace the TPMS sensor without fully removing the tire. Specialized tools can help access the sensor and make the replacement process easier.
If the sensor is particularly stubborn and cannot be removed, cutting the valve stem might be necessary. This method should only be used as a last resort, as it can permanently damage the valve stem.
Replacing a tire pressure sensor is key to maintaining your vehicle's TPMS system. By following this guide, you can replace a malfunctioning sensor, saving time and money. Ensure safety, compatibility, and proper sensor reprogramming. If uncertain, seek professional help. Proper tire inflation is essential for vehicle safety. Langch offers high-quality TPMS sensors, providing reliable solutions to keep your vehicle's tire pressure system functioning optimally.
A: A tire pressure sensor monitors the air pressure in your tires. It alerts you when pressure is low, helping to avoid tire damage, improve fuel efficiency, and ensure driving safety.
A: If your TPMS warning light stays on or flashes, it could indicate a malfunctioning sensor. Inaccurate tire pressure readings can also signal the need for replacement.

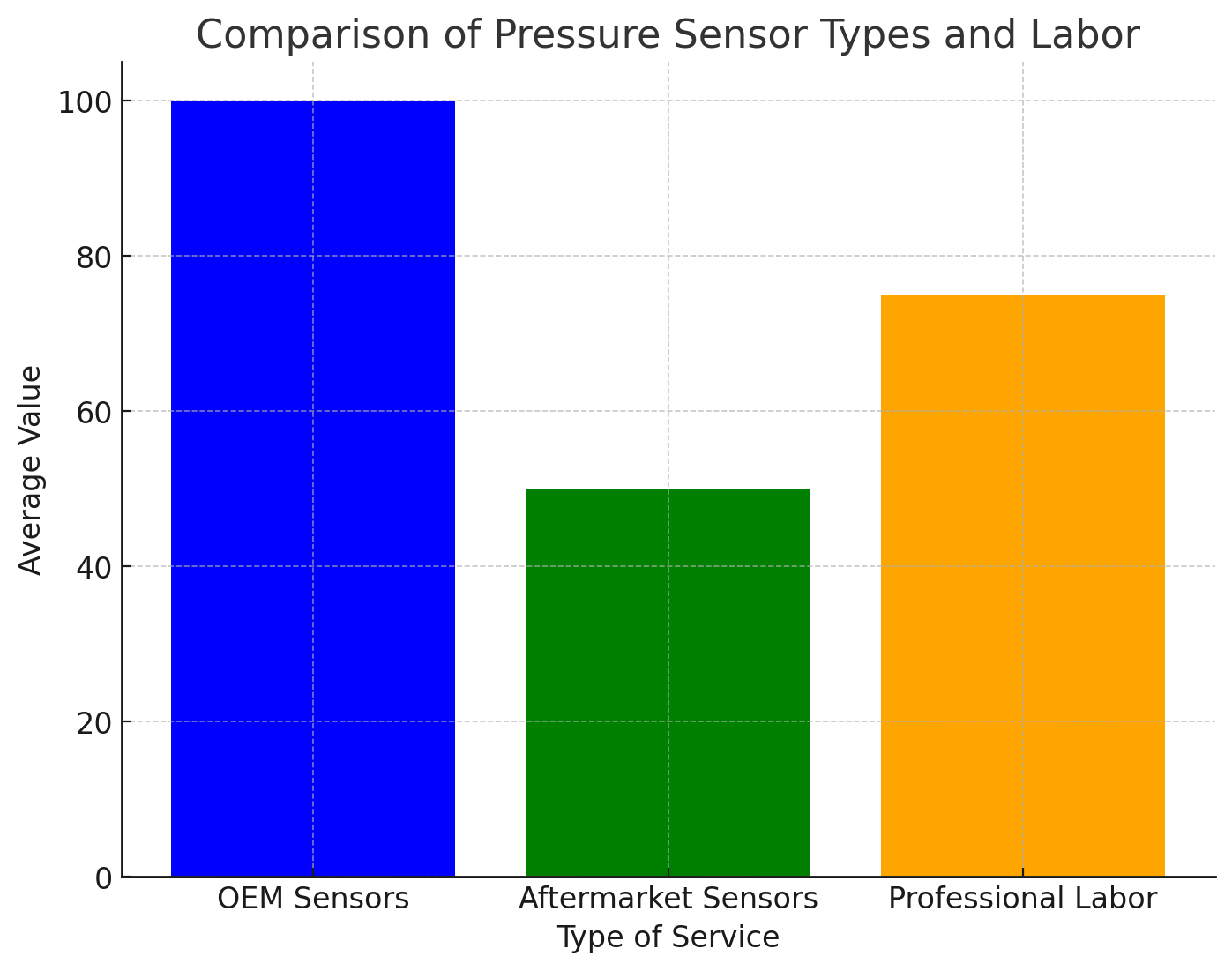

A: Replacing a pressure sensor typically costs between $25 and $150 per sensor, depending on the brand and whether you choose professional service or do it yourself.
A: Yes, with the right tools, you can replace a tire pressure sensor yourself. Follow the necessary steps, including deflating the tire, removing the old sensor, and installing the new one securely.
A: After replacing the sensor, use a TPMS reset tool or follow your vehicle’s manual to program and sync the new sensor with the vehicle's system.
