Choosing the right pneumatic cylinder is a critical decision for engineers and designers working in industries such as manufacturing, automation, and robotics. Pneumatic cylinders are integral components in systems where linear motion is required, and their selection can significantly impact the efficiency, reliability, and cost-effectiveness of an application. This article delves into the factors that influence the choice of a pneumatic cylinder, providing a comprehensive guide for professionals. For those interested in exploring the various types of pneumatic cylinders available, the pneumatic cylinder product category offers a wide range of options to suit different needs.

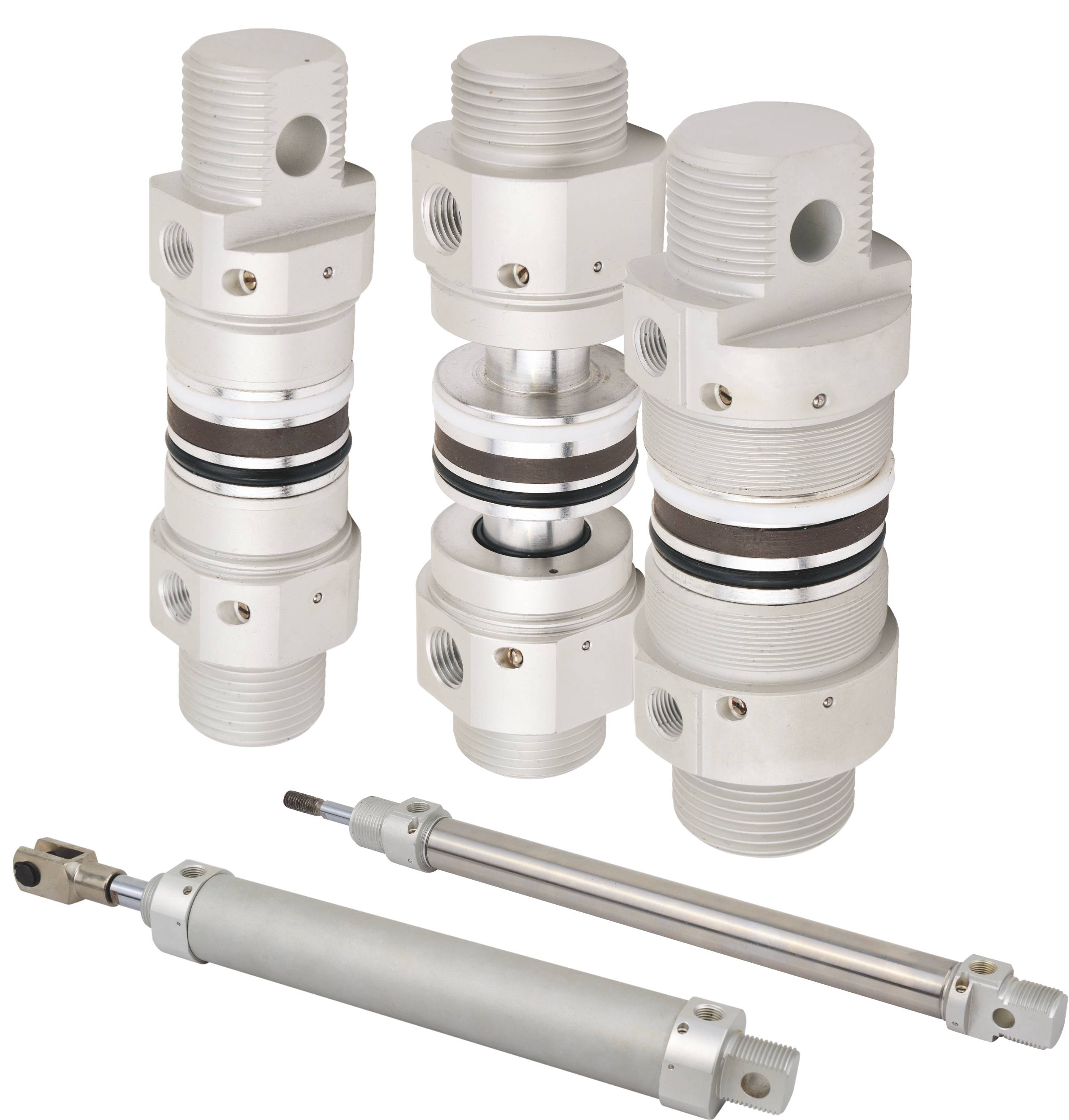

Pneumatic cylinders, also known as air cylinders, are mechanical devices that use compressed air to produce linear motion. They are widely used in industrial applications for tasks such as lifting, pushing, pulling, and clamping. The primary components of a pneumatic cylinder include a cylinder barrel, piston, piston rod, and end caps. The compressed air enters the cylinder, exerting force on the piston, which in turn moves the piston rod to perform the desired action.
Pneumatic cylinders come in various types, each designed for specific applications. The most common types include:
Single-Acting Cylinders: These cylinders use compressed air to move the piston in one direction, with a spring or external force returning it to its original position.
Double-Acting Cylinders: These cylinders use compressed air to move the piston in both directions, offering greater control and flexibility.
Tie-Rod Cylinders: Known for their durability, these cylinders are commonly used in heavy-duty applications.
Compact Cylinders: Designed for applications with space constraints, these cylinders offer high performance in a small footprint.
Rodless Cylinders: These cylinders are ideal for applications requiring long strokes and minimal space.
The first step in selecting a pneumatic cylinder is understanding the specific requirements of your application. Consider factors such as the load to be moved, the stroke length, and the speed of operation. For instance, applications requiring high-speed motion may benefit from lightweight cylinders, while heavy-duty tasks may necessitate robust tie-rod cylinders.
The operating environment plays a crucial role in determining the type of cylinder to use. Factors such as temperature, humidity, and exposure to corrosive substances should be considered. For example, stainless steel cylinders are ideal for corrosive environments, while compact cylinders may be suitable for confined spaces.
The size of the cylinder and its stroke length are critical parameters. The cylinder diameter determines the force it can exert, while the stroke length defines the distance the piston can travel. Standard sizes are available, but custom options can be explored for unique applications.
Mounting options affect the cylinder's stability and alignment. Common mounting types include flange, clevis, and trunnion mounts. The choice depends on the application's mechanical setup and the direction of the applied force.
The material and construction of the cylinder impact its durability and performance. Aluminum cylinders are lightweight and corrosion-resistant, making them suitable for general applications. Steel cylinders, on the other hand, offer higher strength and are ideal for heavy-duty tasks.
Modern pneumatic cylinders often come equipped with sensors and feedback mechanisms for enhanced control and monitoring. These features are particularly useful in automation and robotics, where precision is paramount.
For specialized applications, custom-designed cylinders can be developed to meet specific requirements. This includes unique sizes, materials, and features tailored to the application's needs.
Selecting the right pneumatic cylinder involves a thorough understanding of the application's requirements, operating environment, and performance criteria. By considering factors such as cylinder type, size, material, and mounting options, you can ensure optimal performance and longevity. For a comprehensive range of pneumatic cylinders and related components, visit the pneumatic cylinder product category.
