| Quantity: | |
|---|---|
CA,CB,SNC,CR,CU
Langch

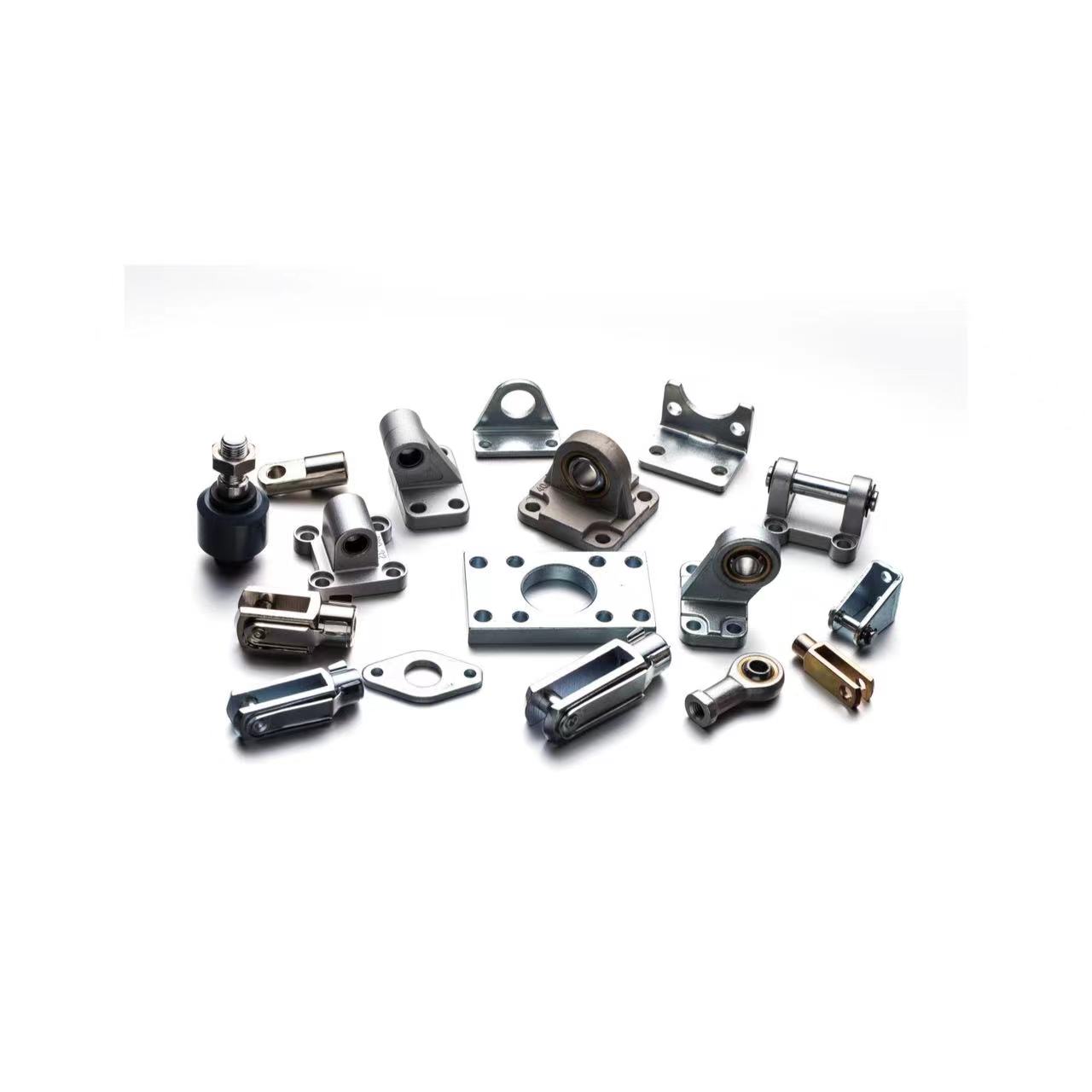

Pneumatic cylinder mounting accessories are essential components that help secure and position pneumatic cylinders within various industrial applications. These accessories ensure that the cylinders are properly aligned and function efficiently, allowing for reliable and precise motion control. Here are the key types of pneumatic cylinder mounting accessories:
Key Mounting Accessories:
1. Mounting Brackets:
• Foot Mounts (NFPA): L-shaped brackets that attach to the base of the cylinder, providing a stable mount on flat surfaces.
• Flange Mounts: Circular or rectangular flanges attached to the cylinder’s end caps, allowing for face mounting on a surface or structure.
• Clevis Mounts: U-shaped brackets that allow the cylinder to pivot at the mounting point, providing flexibility in alignment and movement.
2. Rod End Attachments:
• Rod Clevis: U-shaped fitting that connects to the piston rod end, allowing for attachment to a pivoting load.
• Rod Eye: Eyelet fitting that attaches to the piston rod end, providing a simple and secure connection point.

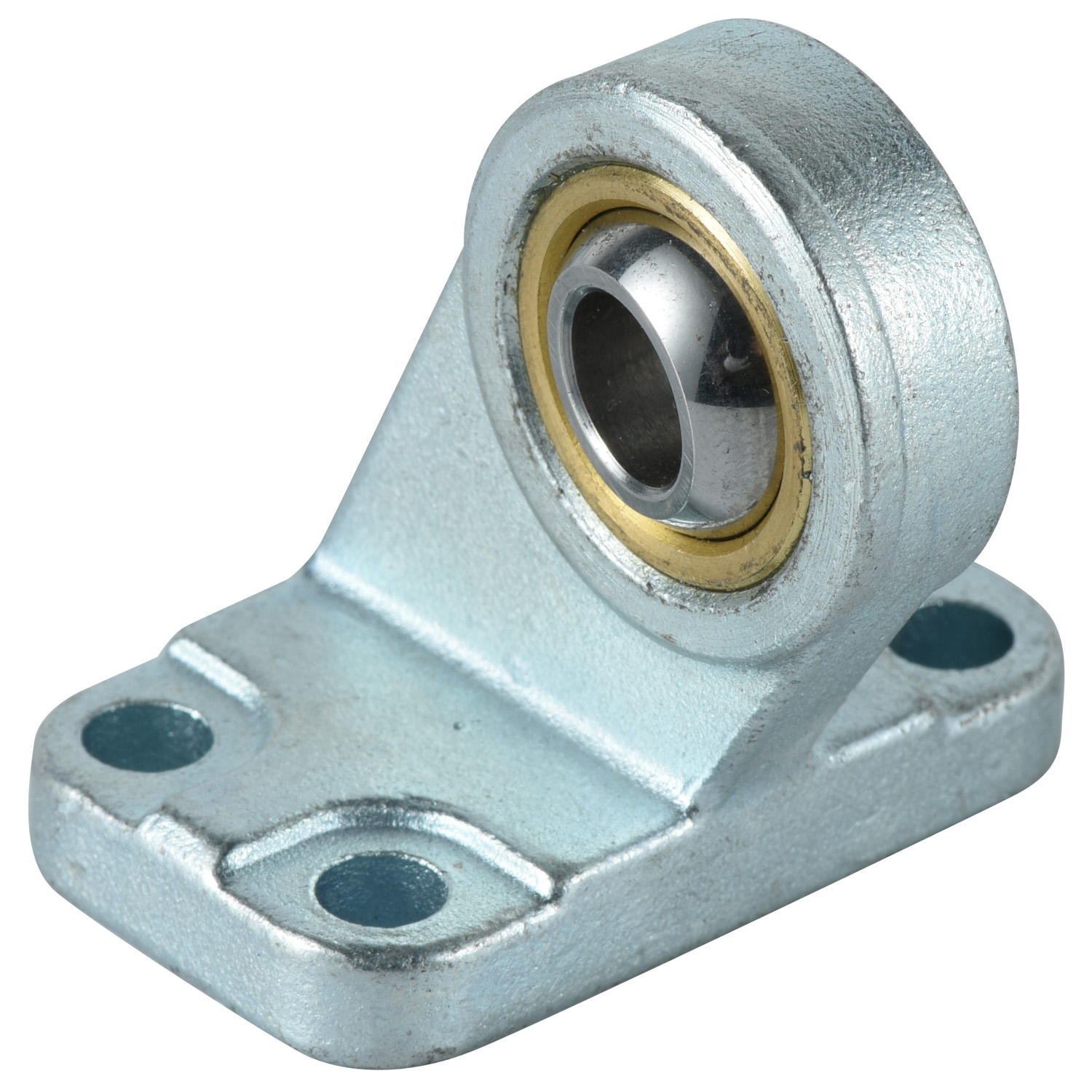

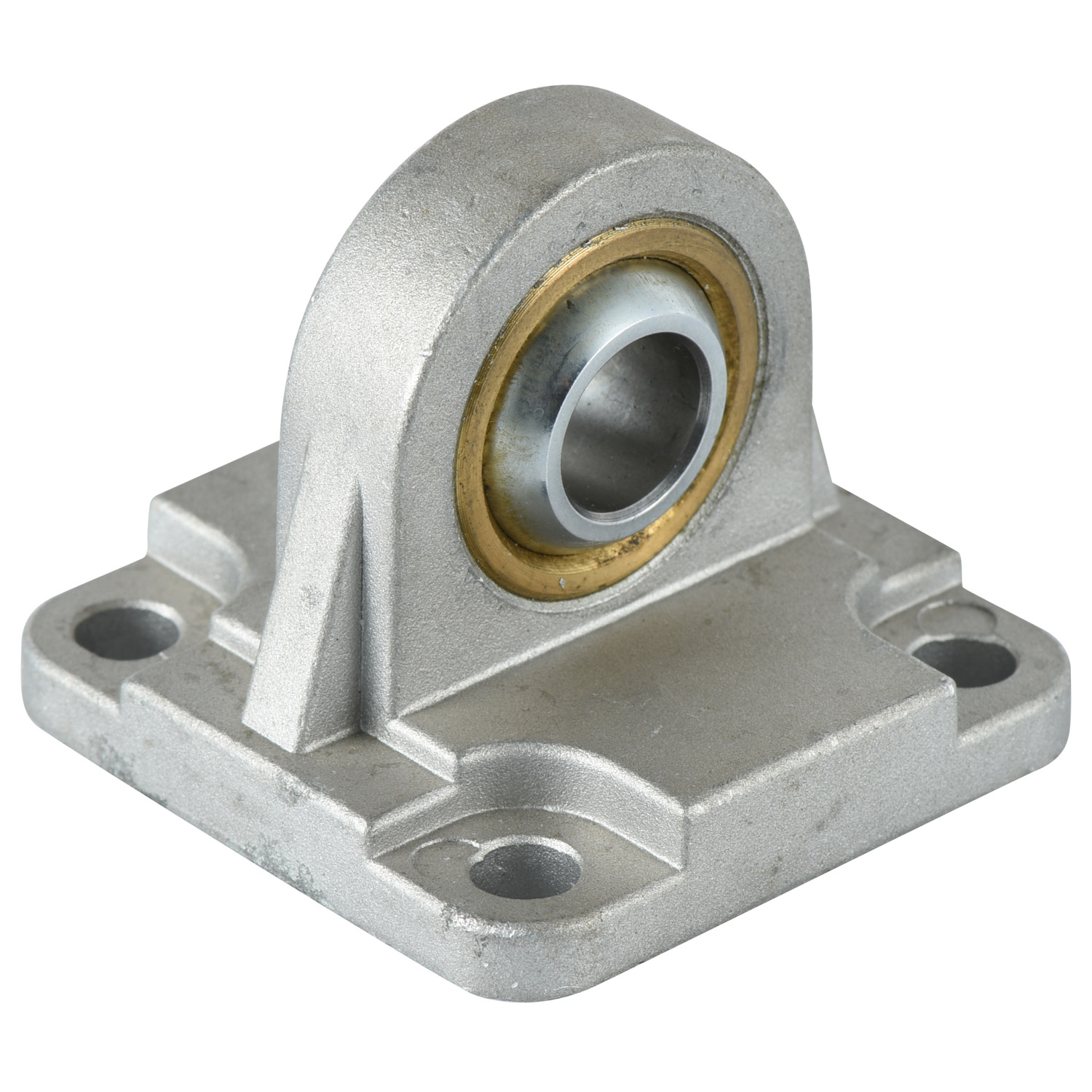

• Spherical Bearing (Rod End Bearing): Bearing that accommodates angular misalignment between the cylinder rod and the load.
3. Pivot and Trunnion Mounts:
• Trunnion Mounts: Mounting pins attached to the cylinder’s midpoint or ends, allowing the cylinder to pivot and accommodate angular motion.
• Center Trunnion: A trunnion mount located at the cylinder’s center, offering balanced pivoting for long-stroke applications.
4. Mounting Plates and Blocks:
• Mounting Plates: Flat plates with pre-drilled holes that attach to the cylinder, providing a versatile mounting surface.
• Mounting Blocks: Solid blocks used to elevate and secure the cylinder, often used in conjunction with other mounting accessories.
5. Tie Rods and Extended Tie Rods:
• Tie Rods: Extend through the cylinder’s end caps and provide structural support and mounting points.
• Extended Tie Rods: Longer tie rods that extend beyond the cylinder body, allowing for easy attachment to a mounting surface or bracket.
6. Swivel Mounts:
• Swivel Brackets: Allow the cylinder to pivot in multiple directions, providing flexibility in movement and alignment.
• Swivel Rod Ends: Connect to the piston rod end and allow for rotational movement, accommodating misalignment.
Applications:
1. Industrial Automation:
• Used in assembly lines, packaging machines, and robotic systems where precise and reliable motion control is essential.
2. Material Handling:
• Employed in conveyor systems, lifting devices, and positioning equipment to ensure smooth and accurate movement of materials.
3. Automotive Industry:
• Utilized in manufacturing processes, such as welding, stamping, and painting, where robust and flexible mounting solutions are required.
4. Aerospace and Defense:
• Essential in applications requiring high precision and reliability, such as in aircraft control systems and military equipment.
Advantages:
1. Versatility:
• A wide range of mounting options allows for flexible installation and adaptation to various applications and environments.
2. Stability and Precision:
• Ensures that pneumatic cylinders are securely mounted and properly aligned, enhancing the accuracy and efficiency of the system.
3. Ease of Installation:
• Designed for easy attachment and adjustment, reducing installation time and complexity.
4. Durability:
• Made from robust materials that withstand harsh industrial conditions and provide long-lasting performance.
