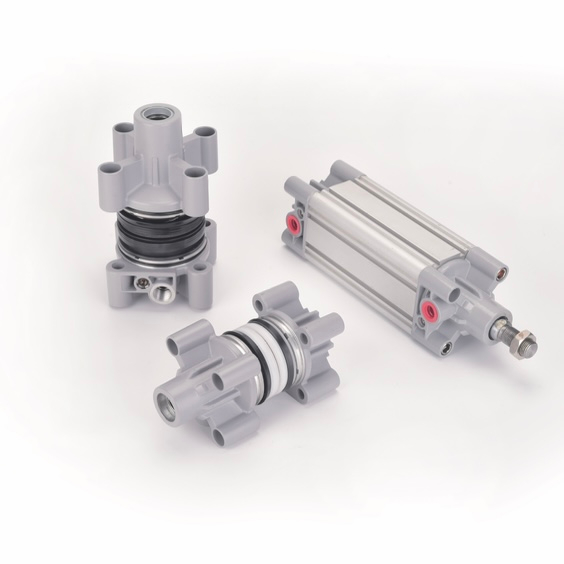

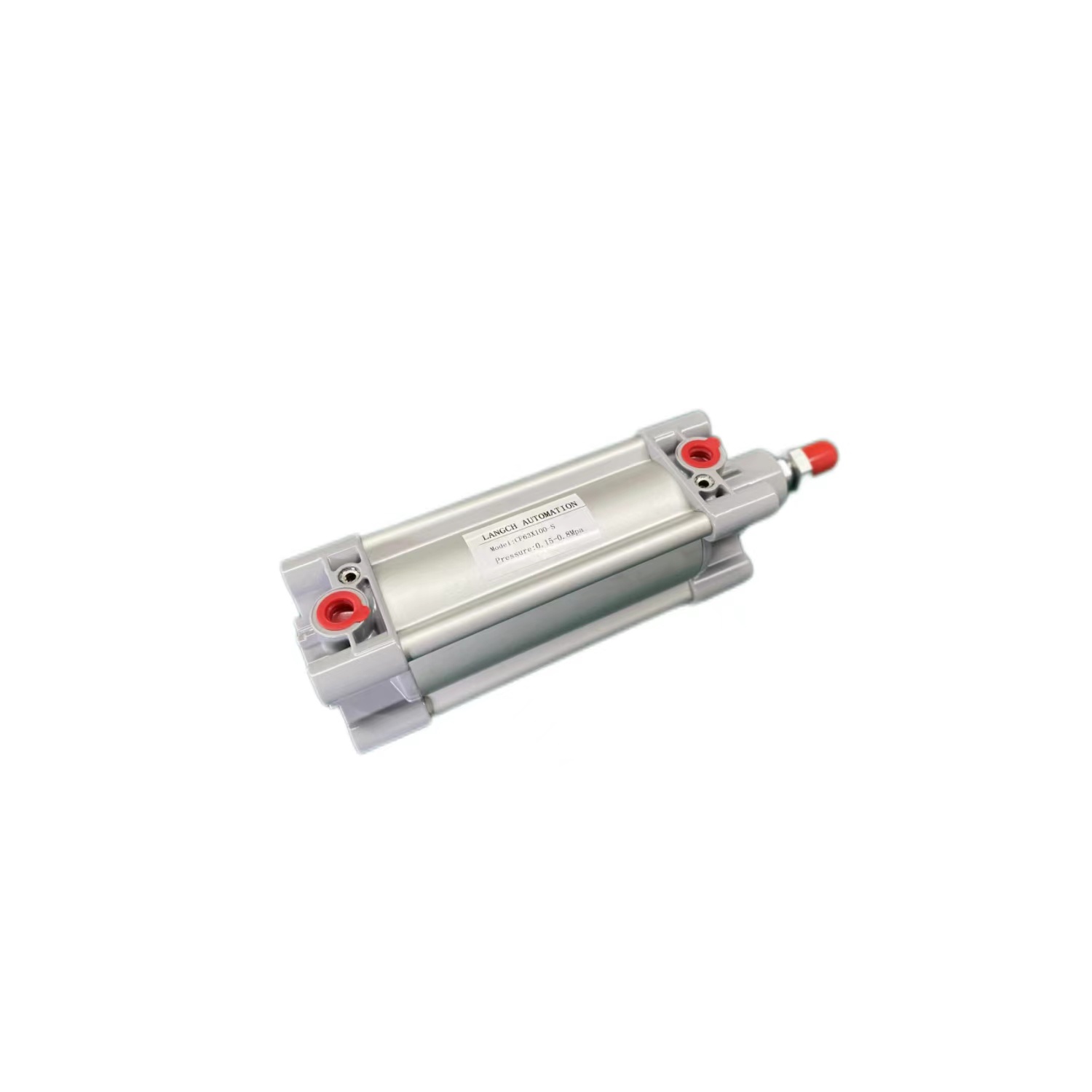

ISO 15552 pneumatic cylinder, previously known as an ISO 6431 cylinder, is a type of linear actuator designed and standardized for use in industrial automation and machinery. The ISO 15552 standard ensures compatibility and interchangeability of these cylinders across different manufacturers, making them widely adopted in various industrial applications.
Key Features
1. Standardization: The ISO 15552 standard specifies the dimensions, mounting options, and performance characteristics of pneumatic cylinders, ensuring they can be easily replaced or integrated regardless of the manufacturer.
2. Construction: Typically constructed from materials like aluminum or stainless steel for durability and resistance to corrosion.
3. Double-Acting Design: Most ISO 15552 cylinders are double-acting, meaning they use air pressure to extend and retract the piston, providing control over both directions of movement.
4. Adjustable Cushioning: Many models include adjustable cushioning at the end of the stroke to reduce impact and noise, improving the lifespan of the cylinder and associated machinery.
5. Variety of Bore Sizes: Available in a wide range of bore sizes (the internal diameter of the cylinder) to accommodate different force requirements.
Components
1. Cylinder Barrel: The main body of the cylinder where the piston moves.
2. Piston: The internal part that moves back and forth within the barrel.
3. Piston Rod: Connected to the piston and extends out of the cylinder to transmit the force.
4. End Caps: Seal the ends of the cylinder barrel and include ports for air supply and exhaust.
5. Seals: Prevent air leakage and ensure smooth operation.
6. Cushioning: Mechanisms to absorb energy at the end of the piston stroke.
Mounting Options
ISO 15552 cylinders come with various standardized mounting options to facilitate easy installation in different applications. Common mounting styles include:
• Foot Mount: Using feet attached to the cylinder body.
• Flange Mount: A flange attached to one end of the cylinder.
• Clevis Mount: A U-shaped bracket allowing pivoting.
• Trunnion Mount: Pins attached to the cylinder body for pivot mounting.
Applications
• Industrial Automation: Used in assembly lines, robotics, and automated machinery to provide linear motion.
• Material Handling: For positioning, lifting, and moving products or materials.
• Packaging Machines: Ensures precise and repeatable movement for packaging processes.
• Automotive Manufacturing: In various stages of vehicle assembly and part production.
• Food and Beverage Processing: In applications where hygiene and corrosion resistance are critical.
Advantages
• Interchangeability: Standardized dimensions and mounting options make it easy to replace or integrate cylinders from different manufacturers.
• Versatility: Suitable for a wide range of applications due to various sizes and mounting options.
• Durability: Constructed from robust materials to withstand industrial environments.
• Efficiency: Double-acting design provides efficient and controlled motion in both directions.
Maintenance
• Regular Inspection: Check for air leaks, wear on seals, and proper functioning of the cushioning mechanisms.
• Lubrication: Ensure adequate lubrication of the piston and rod to reduce friction and wear.
• Air Quality: Use clean, dry air to prevent contamination and corrosion inside the cylinder.
• Replacement of Worn Parts: Replace seals and other components as needed to maintain performance.
ISO 15552 pneumatic cylinders are integral components in modern industrial automation, providing reliable, standardized solutions for linear motion applications across diverse industries.
