Pneumatic cylinder kits are essential for building, repairing, or customizing pneumatic cylinders, which are widely used in automation, manufacturing, and other industrial applications for converting compressed air into linear motion. Here’s a more detailed look at what these kits typically include and their functions:
Components of Pneumatic Cylinder Kits

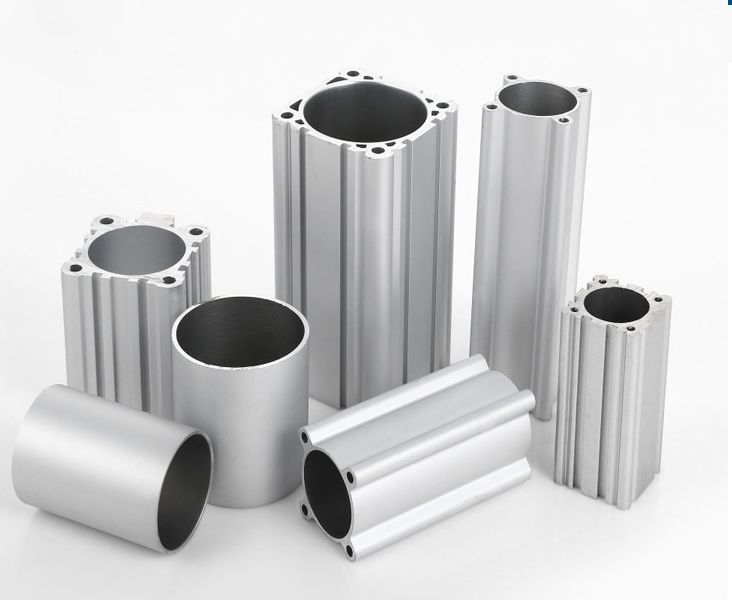

1. Cylinder Tube (Barrel)
• The main body where the piston travels back and forth.
• Usually made of materials like aluminum, stainless steel, or other metals for durability and strength.
2. Piston
• The internal part that moves within the cylinder tube.
• Often equipped with seals to ensure air-tight movement and to prevent leaks.
3. Piston Rod
• Connected to the piston and extends outside the cylinder to perform the desired work.
• Typically made of hardened steel or stainless steel for high strength and corrosion resistance.
4. End Caps (Head and Cap Ends)
• These close off both ends of the cylinder tube.
• May have ports for air supply and exhaust, as well as mounting points for installation.
5. Seals and O-rings
• Ensure a tight seal to prevent air leakage.
• Made from materials like rubber, polyurethane, or Teflon, depending on the application and environmental conditions.
6. Mounting Hardware
• Includes various brackets, bolts, and nuts for securely mounting the cylinder to a fixed surface or machinery.
7. Cushions and Bumpers
• Used to absorb shock and reduce noise at the end of the piston stroke.
• Can be adjustable to control the cushioning effect.
8. Guide Rods (if applicable)
• Provide additional stability and alignment for the piston rod, especially in applications with side loads.
• Help prevent bending or deflection of the piston rod.
Types of Pneumatic Cylinders
1. Single-Acting Cylinders
• Use air pressure to move the piston in one direction, with a spring or external force returning it to its original position.
2. Double-Acting Cylinders
• Use air pressure to move the piston in both directions, providing more control and force in both directions.
3. Rodless Cylinders
• The piston is contained within the cylinder, and the load is moved along the length of the cylinder without an external piston rod.
• Suitable for applications with space constraints.
4. Compact Cylinders
• Designed for applications where space is limited.
• Typically have a shorter stroke length and are used in tight spaces.
Applications
• Automation and Robotics: For precise and repetitive movements in manufacturing processes.
• Material Handling: To move, lift, or position materials.
• Packaging Machines: For sealing, cutting, or labeling packages.
• Automotive Industry: In assembly lines and machinery for manufacturing car parts.
• Textile Industry: In machinery for weaving, dyeing, and finishing fabrics.
Selecting a Pneumatic Cylinder Kit
When selecting a pneumatic cylinder kit, consider the following factors:
• Bore Size: The internal diameter of the cylinder tube, which affects the force the cylinder can generate.
• Stroke Length: The distance the piston can travel within the cylinder.
• Operating Pressure: The maximum pressure the cylinder can handle.
• Material: Compatibility with the working environment and required durability.
• Mounting Style: How the cylinder will be mounted in the application (e.g., foot-mounted, flange-mounted).
Pneumatic cylinder kits provide all necessary components to either build a new cylinder or repair an existing one, making them invaluable for maintenance and customization in industrial settings.
