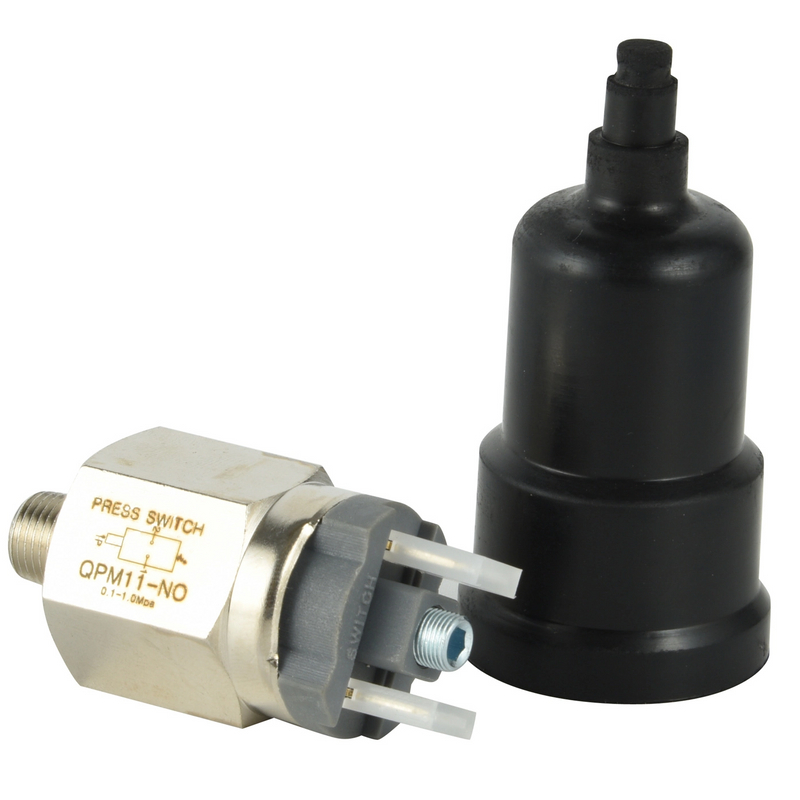

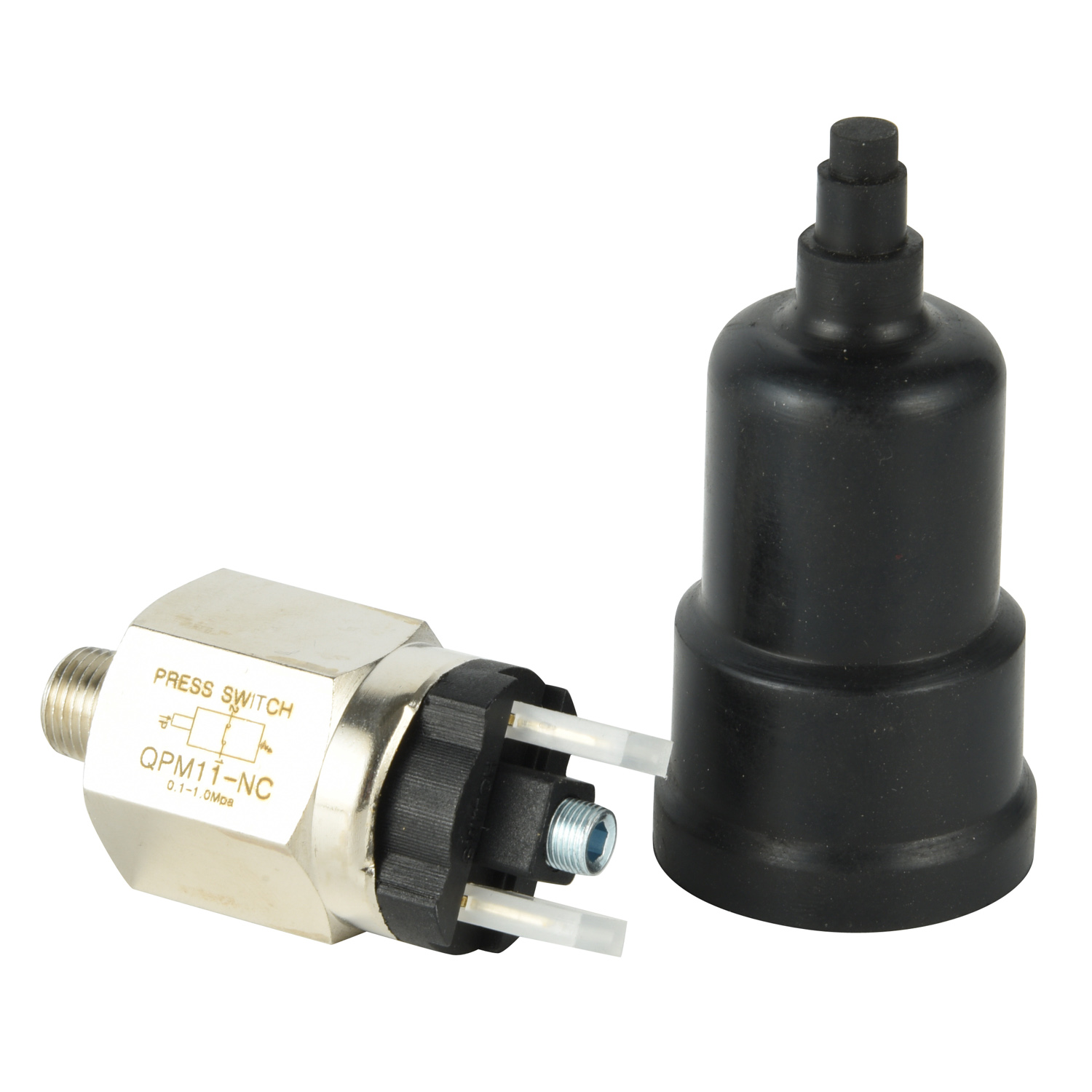

QPM11-NC, QPM11-NO
Langch
Diaphragm pressure switch is a type of pressure switch that uses a diaphragm to sense pressure changes and actuate a switch. It is commonly used in various industrial and commercial applications to monitor and control pressure levels in systems such as pumps, compressors, and hydraulic machinery.
Components:
1. Diaphragm: A flexible membrane that responds to pressure changes.
2. Pressure Chamber: The area where the fluid pressure is applied against the diaphragm.
3. Spring Mechanism: Provides a counteracting force against the diaphragm.
4. Switch Mechanism: An electrical switch that is actuated by the movement of the diaphragm.
5. Adjustable Setpoint: A mechanism to adjust the pressure level at which the switch actuates.
Working Principle:
1. Pressure Application: The pressure from the system is applied to one side of the diaphragm.
2. Diaphragm Movement: As the pressure increases or decreases, the diaphragm flexes.
3. Actuation: When the pressure reaches the setpoint, the diaphragm movement actuates the switch mechanism.
4. Electrical Signal: The switch changes state (open or close), sending an electrical signal to the control system or triggering an alarm.
5. Reset: When the pressure returns to a level below the setpoint, the diaphragm returns to its original position, and the switch resets.
Advantages:
• Accuracy: Provides precise pressure control and monitoring.
• Reliability: Simple mechanical design with few moving parts, reducing the risk of failure.
• Versatility: Can be used for a wide range of pressure settings and applications.
• Cost-Effective: Typically less expensive than other types of pressure switches.
Applications:
• HVAC Systems: Monitoring and controlling air pressure in heating, ventilation, and air conditioning systems.
• Water Pumps: Controlling the operation of water pumps to maintain desired pressure levels.
• Industrial Machinery: Ensuring safe operation of compressors, hydraulic presses, and other machinery.
• Automotive: Used in fuel systems and braking systems to monitor and control pressure.
Example:
In a water pump system, a diaphragm pressure switch might be used to turn the pump on when the water pressure drops below a certain level and turn it off when the desired pressure is reached. This ensures that the system maintains a consistent pressure level without manual intervention.
Diaphragm pressure switches are valued for their durability, precision, and ability to operate in harsh environments, making them a crucial component in many pressure-sensitive applications.
