| Quantity: | |
|---|---|

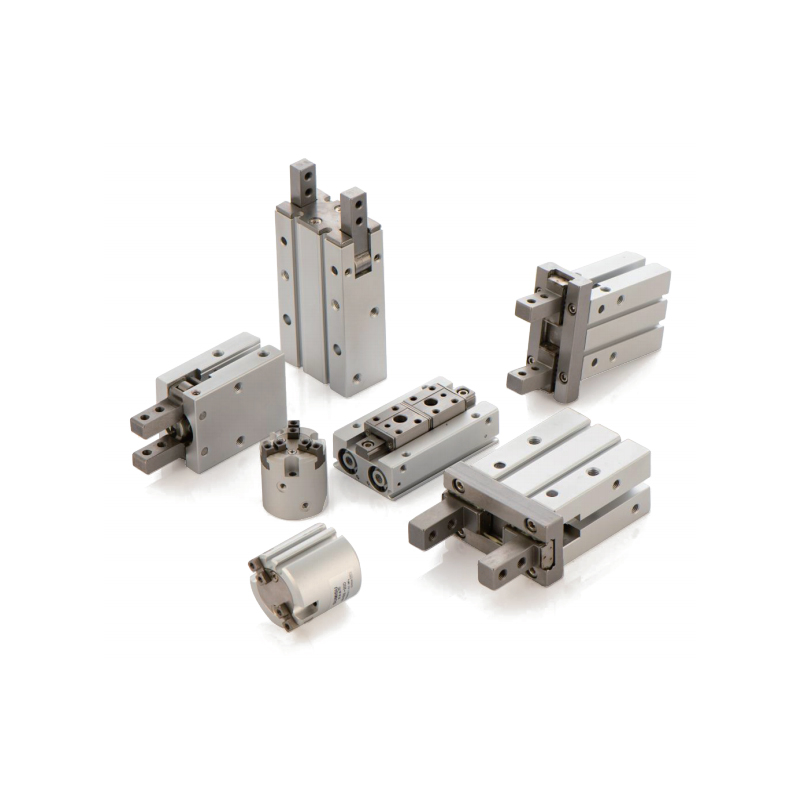

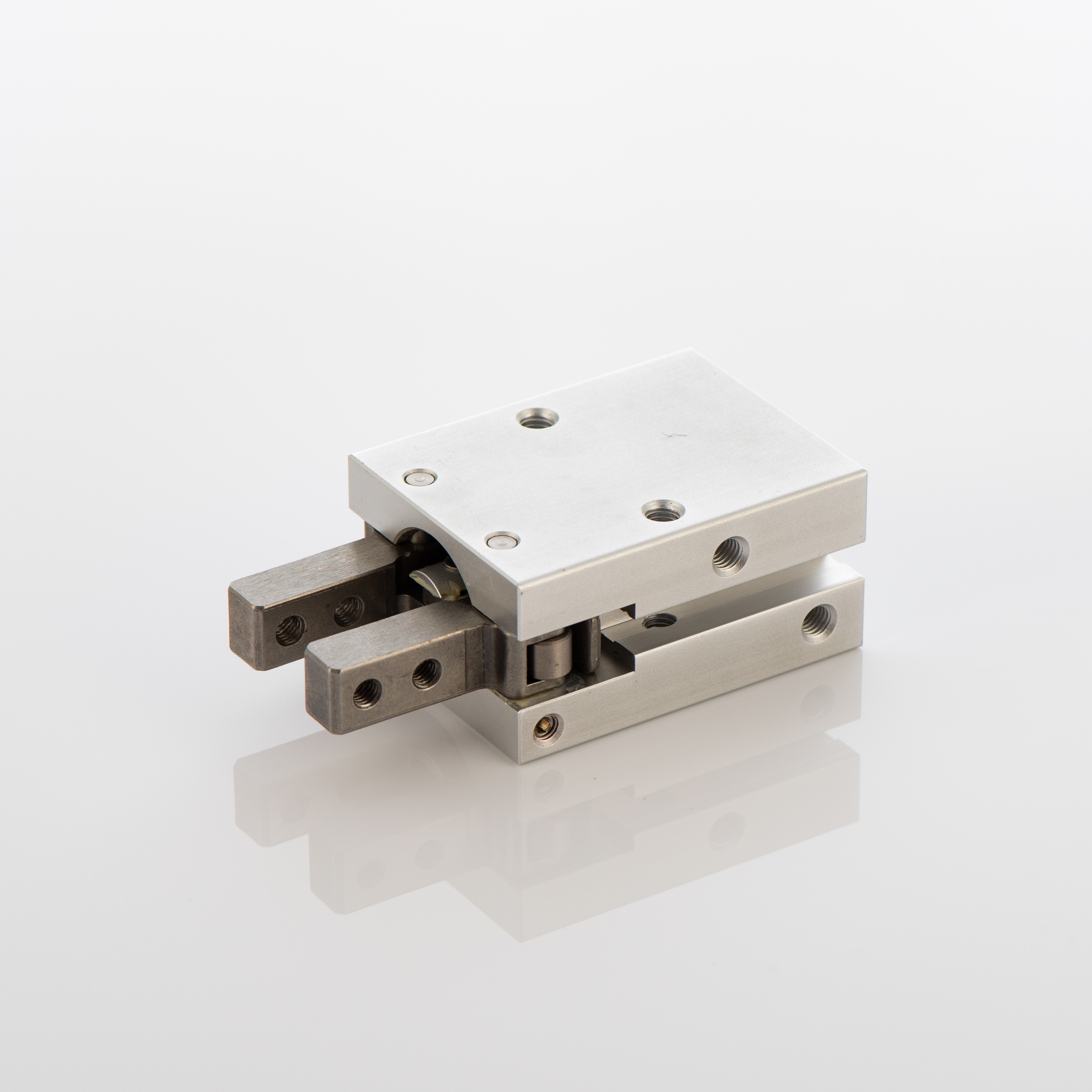

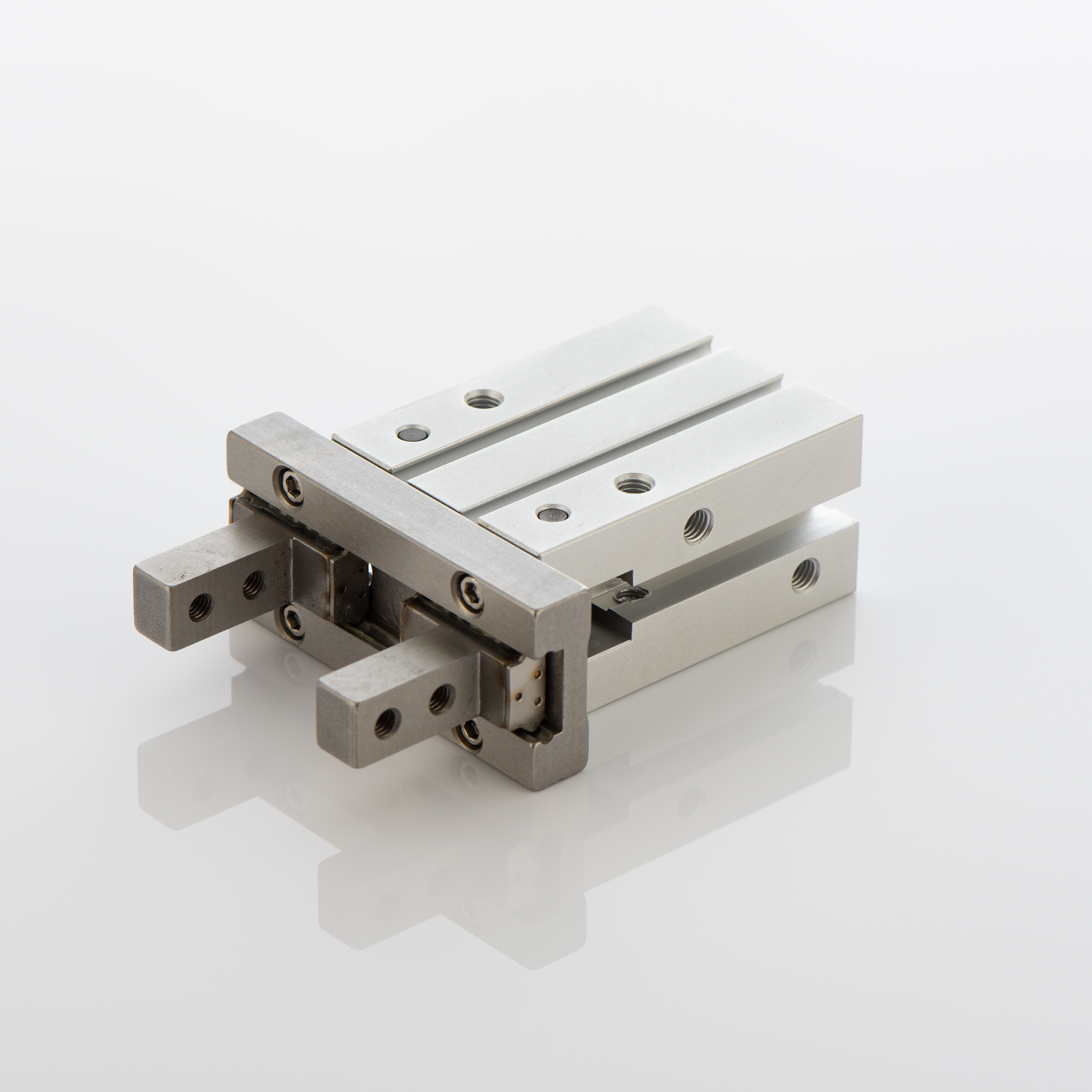

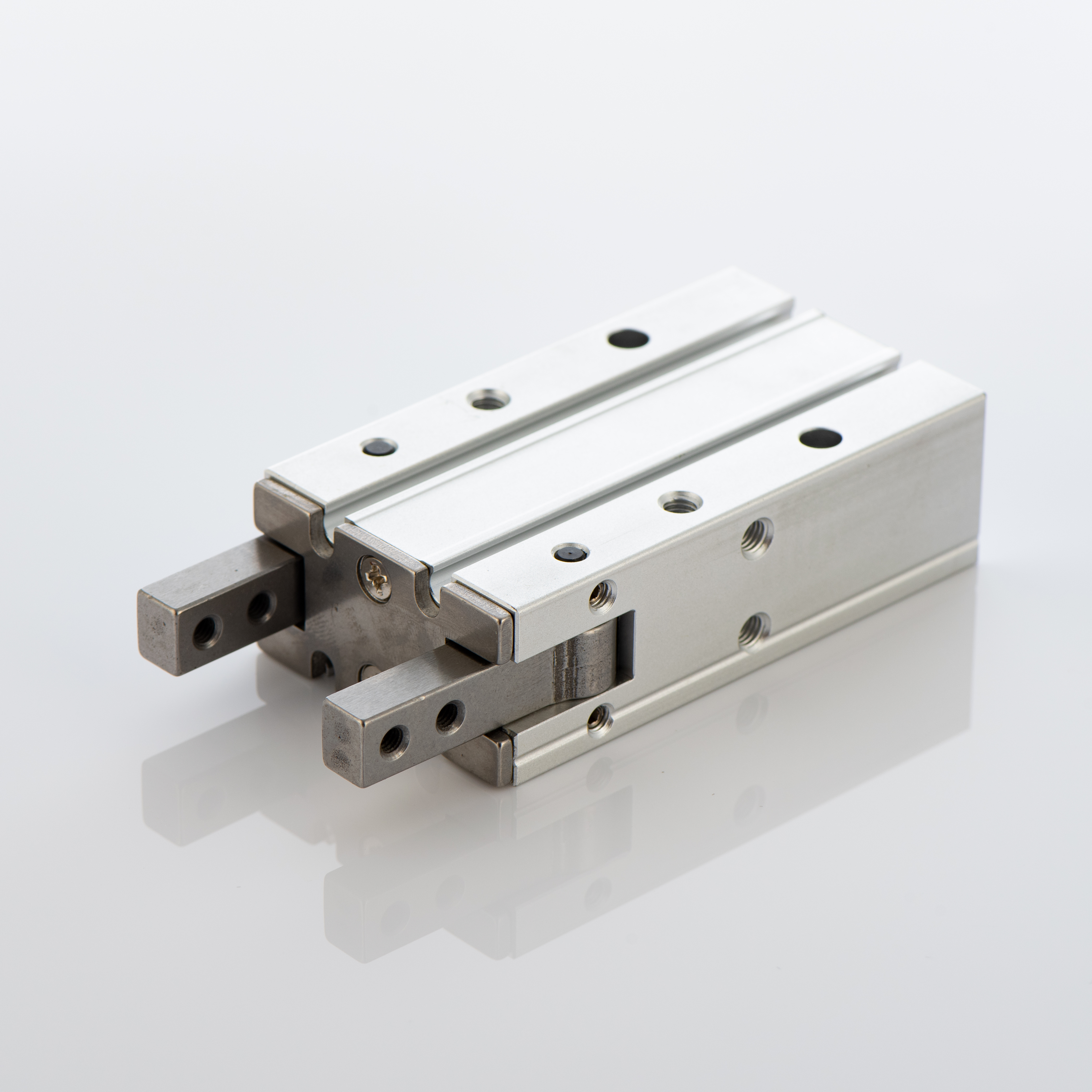

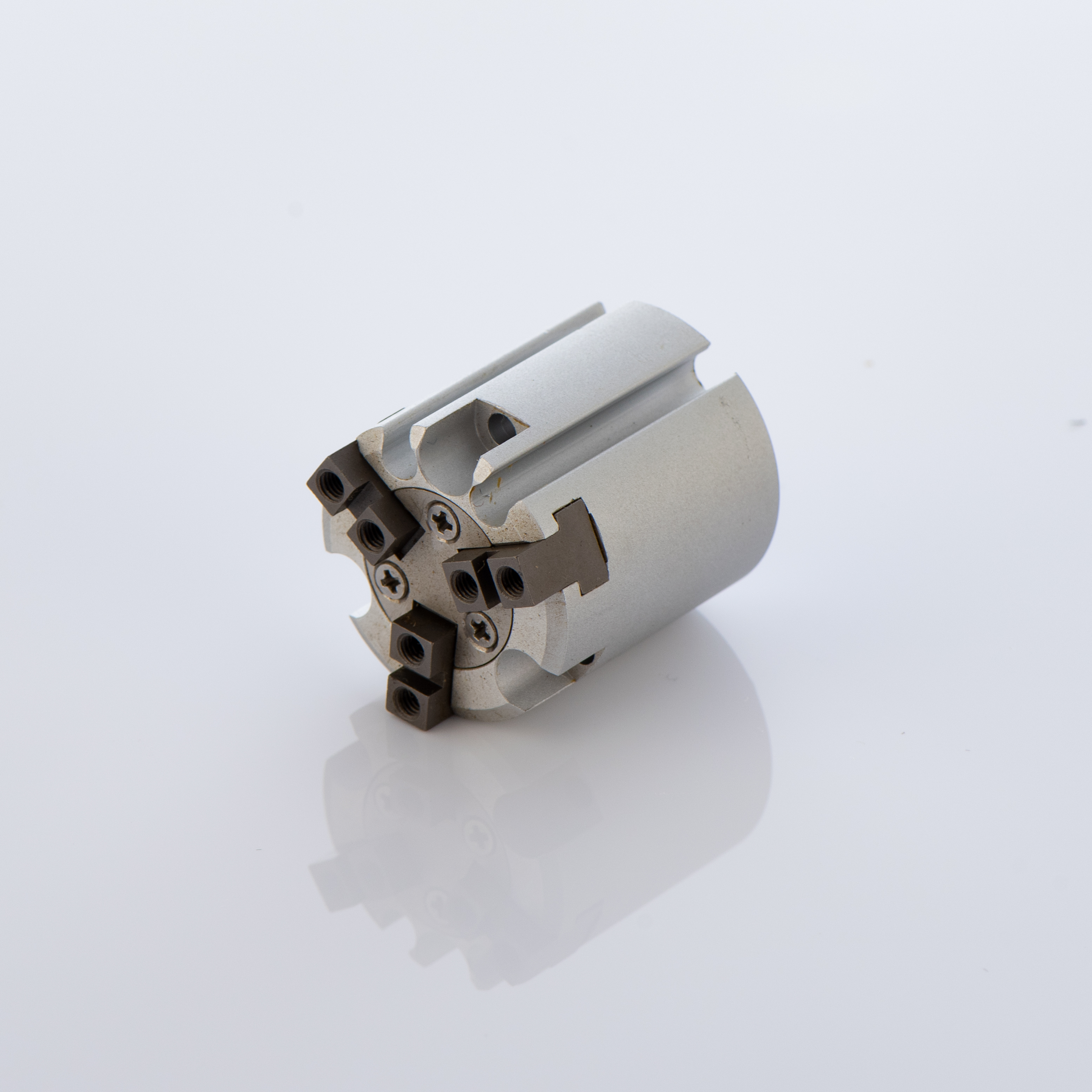

MHZ2,MHC2,MHY2
Langch
Pneumatic gripper is a type of end effector used in robotics and automation systems to grasp and manipulate objects. It operates using compressed air to generate motion and force. Here are the main components and working principles of a pneumatic gripper:
Components:
1. Gripper Fingers/Jaws: The parts that come into direct contact with the object. They can be customized in shape and size to fit the specific application.
2. Pneumatic Cylinder: Provides the actuation force. The cylinder moves the gripper fingers in response to the air pressure.
3. Valves and Tubing: Control the flow of compressed air to the pneumatic cylinder.
4. Sensors: Optional components that can detect the position of the gripper fingers or the presence of an object.
Working Principle:
1. Compressed Air Supply: Compressed air is supplied to the gripper through a network of tubes and controlled by valves.
2. Air Pressure Application: When the valve is opened, compressed air enters the pneumatic cylinder, causing the piston to move.
3. Motion Transfer: The movement of the piston is transferred to the gripper fingers, causing them to open or close around the object.
4. Grasping and Release: By controlling the air pressure and direction, the gripper can grasp and release objects as needed.
Advantages:
• Speed: Pneumatic grippers are fast-acting due to the quick response of pneumatic systems.
• Simplicity: They are mechanically simple and easy to maintain.
• Cost-Effective: Generally cheaper than electric or hydraulic grippers.
Applications:
• Manufacturing: Used in assembly lines for picking and placing parts.
• Packaging: Handling products for packaging.
• Material Handling: Moving items in warehouses or during sorting processes.
• Medical Devices: Precision handling in medical device manufacturing.
Pneumatic grippers are widely used in various industries due to their reliability and efficiency in handling a wide range of objects.
