In pneumatic systems, “air units” typically refer to air preparation units, which are essential for ensuring that the compressed air is clean, dry, and regulated before it is used in various applications. These units generally consist of filters, regulators, and lubricators, collectively known as FRLs. Proper air preparation is critical for the efficient and reliable operation of pneumatic equipment.
Components of Air Units
1. Filters (F):
• Purpose: Remove contaminants such as dust, dirt, and moisture from the compressed air.
• Types: Particulate filters, coalescing filters, and activated carbon filters.
• Common Specifications: Filtration ratings (e.g., 5 microns, 0.01 microns for finer filtration).
2. Regulators (R):
• Purpose: Maintain a consistent and adjustable air pressure to ensure the pneumatic system operates within its designed pressure range.
• Features: Pressure adjustment knob, pressure gauge for monitoring.
• Common Specifications: Pressure ranges (e.g., 0-150 psi), accuracy levels.
3. Lubricators (L):
• Purpose: Add a controlled amount of lubricant (typically oil) to the compressed air, which lubricates internal components of pneumatic tools and machinery.
• Types: Mist lubricators and micro-fog lubricators.
• Common Specifications: Oil delivery rate, compatibility with different types of oil.
Combined Air Units

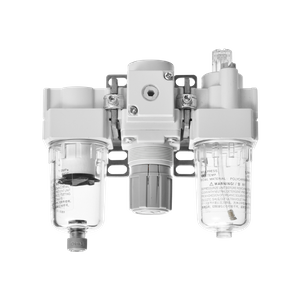

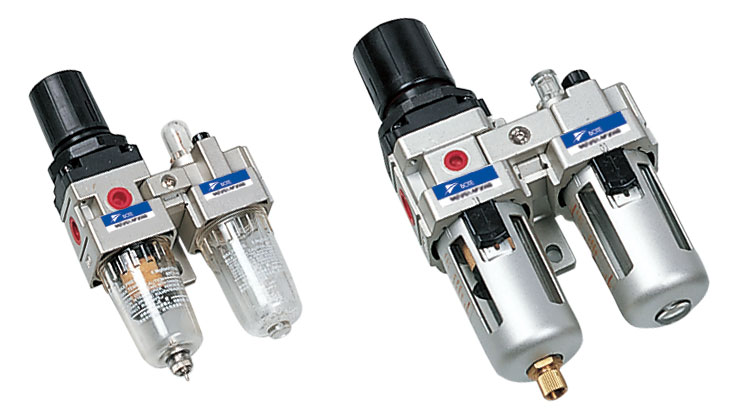

• FRL Combinations: Many air preparation units combine filters, regulators, and lubricators into a single assembly for convenience and space-saving.

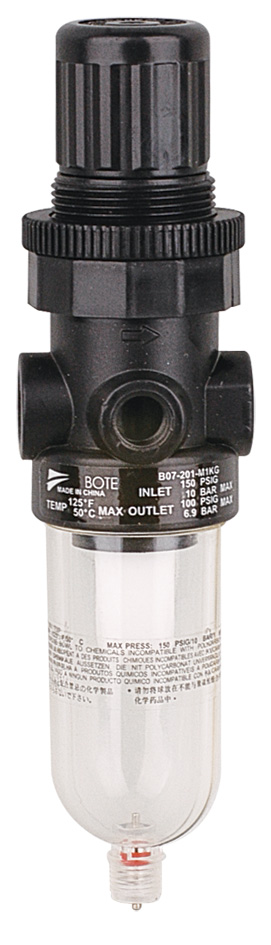

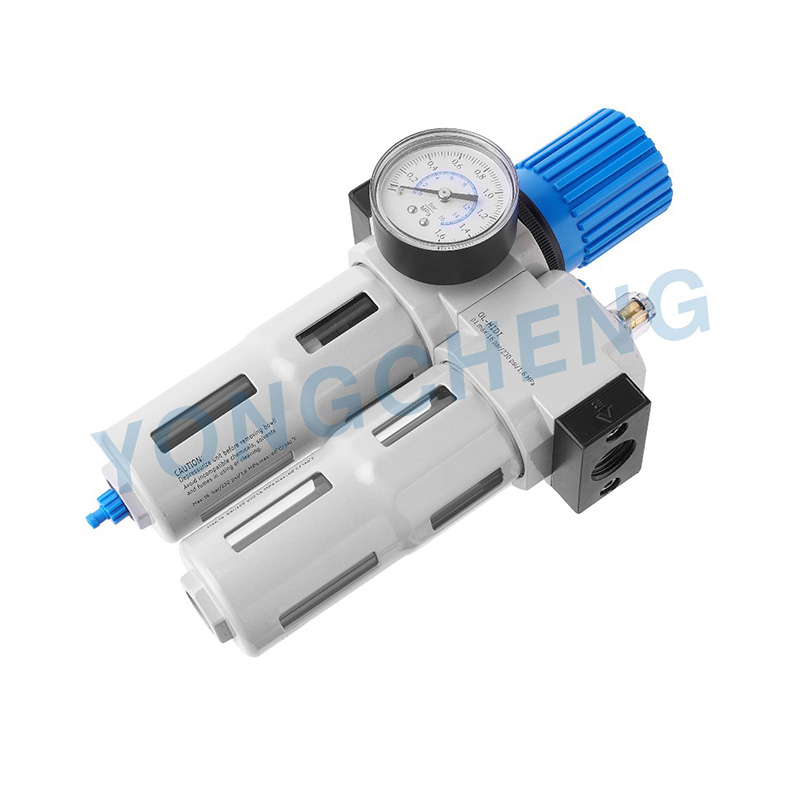

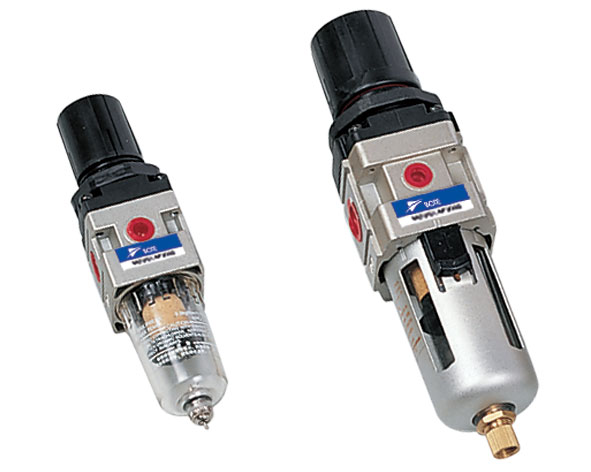

• Filter-Regulator (FR) Units: Combine a filter and regulator into a single unit, often used when lubrication is not necessary.
• Modular Designs: Allow for easy addition or removal of components to customize the air preparation setup for specific applications.
Applications
1. Industrial Automation: Ensures pneumatic actuators and valves receive clean, dry, and regulated air.
2. Manufacturing: Used in various machinery and equipment for consistent performance and longevity.
3. Automotive: Provides reliable air supply for pneumatic tools and assembly line equipment.
4. Packaging: Maintains the proper function of pneumatic components in packaging machines.
5. Food and Beverage: Ensures hygienic air supply in processes requiring clean air.
6. Medical Equipment: Provides precise and clean air for medical pneumatic devices.
Selection Criteria
• Air Quality Requirements: Choose the appropriate filter type based on the required air quality.
• Pressure Range: Ensure the regulator can handle the system’s pressure requirements.
• Flow Rate: Select components that can handle the required flow rate without causing significant pressure drops.
• Lubrication Needs: Determine if lubrication is necessary for your application and select the appropriate lubricator type.
• Environmental Conditions: Consider the operating environment (e.g., temperature, humidity) and choose components with suitable specifications.
Example Specifications
• Filter: 5-micron particulate filter, maximum pressure 150 psi.
• Regulator: Adjustable pressure range 0-125 psi, accuracy ±2%.
• Lubricator: Micro-fog type, oil delivery rate 0.1-1.0 drops per minute.
Benefits
• Enhanced Equipment Longevity: Proper air preparation reduces wear and tear on pneumatic components.
• Improved System Efficiency: Clean, dry, and regulated air ensures optimal performance and reduces downtime.
• Cost Savings: Reduces maintenance costs and extends the life of pneumatic tools and machinery.
• Consistent Performance: Maintains consistent operation by preventing pressure fluctuations and contamination-related issues.
Maintenance Tips
• Regular Inspection: Check filters, regulators, and lubricators regularly for signs of wear or clogging.
• Replacement Intervals: Follow manufacturer recommendations for replacing filter elements and lubricator oil.
• Pressure Adjustment: Periodically verify and adjust regulator settings to ensure consistent performance.
• Leak Detection: Inspect for air leaks around fittings and connections, which can reduce efficiency.
Air preparation units are critical for the reliable and efficient operation of pneumatic systems across various industries, ensuring that compressed air is clean, dry, and properly regulated.
