Spray nozzle is a device designed to disperse liquid into a spray. They are used in a wide range of applications, including industrial processes, agricultural irrigation, firefighting, cleaning, cooling, and coating. The design of the spray nozzle determines the spray pattern, droplet size, and flow rate of the liquid being dispersed, which can be tailored to meet specific requirements.
Key Components of a Spray Nozzle:
1. Orifice:
• Function: The opening through which the liquid exits the nozzle.
• Design: The size and shape of the orifice influence the spray pattern and droplet size.
2. Swirl Chamber:
• Function: Some nozzles have a swirl chamber to impart a spinning motion to the liquid, creating a fine mist or a specific spray pattern.
• Application: Common in atomizing nozzles used for fine spray applications.
3. Body:
• Material: Made from various materials such as stainless steel, brass, plastic, or ceramic, depending on the application and the type of liquid being sprayed.
• Function: Houses the internal components and connects to the liquid supply.
4. Cap and Retainer:
• Function: Secure the orifice and other internal components in place.
• Design: Can influence the maintenance and replacement ease of the nozzle.

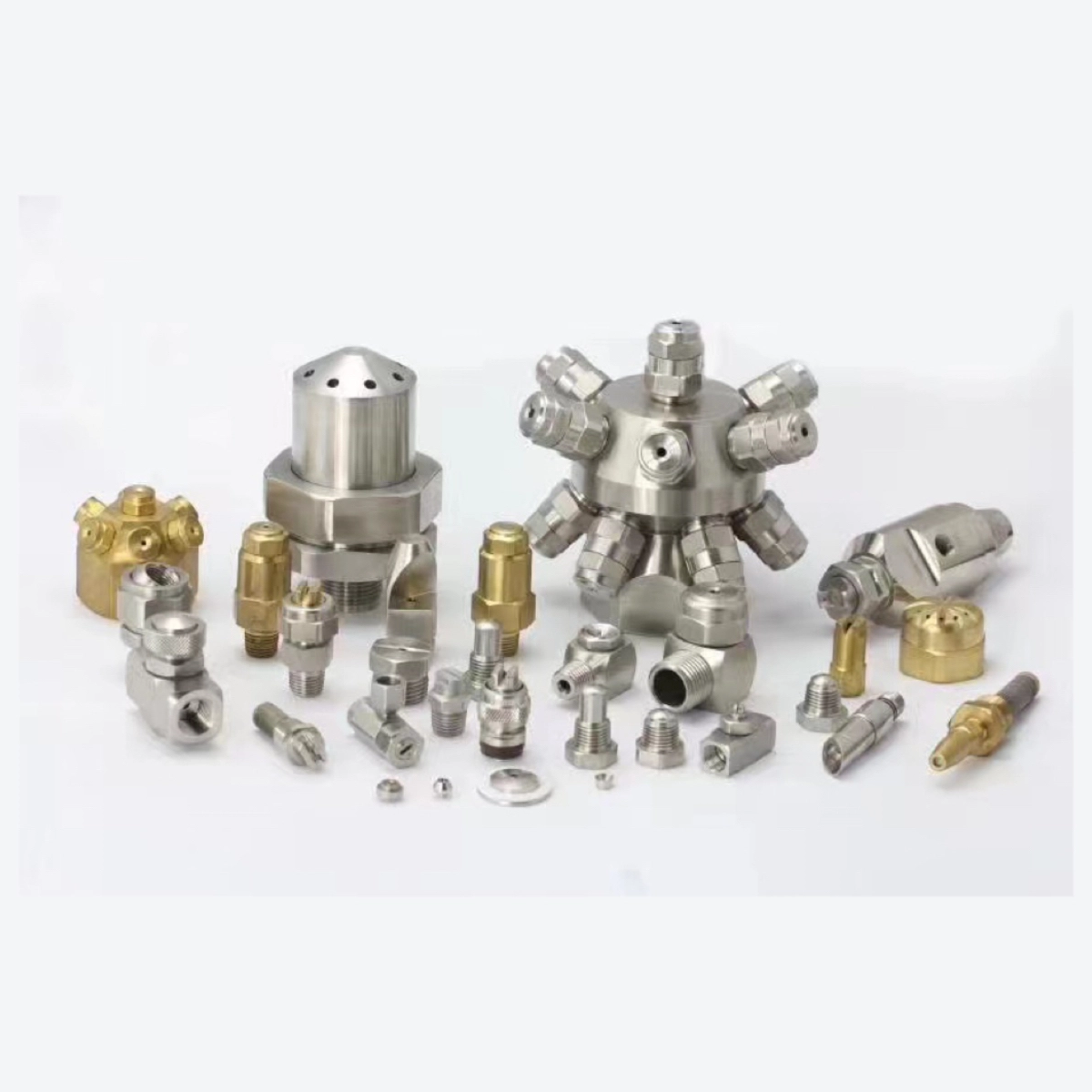

Types of Spray Nozzles:

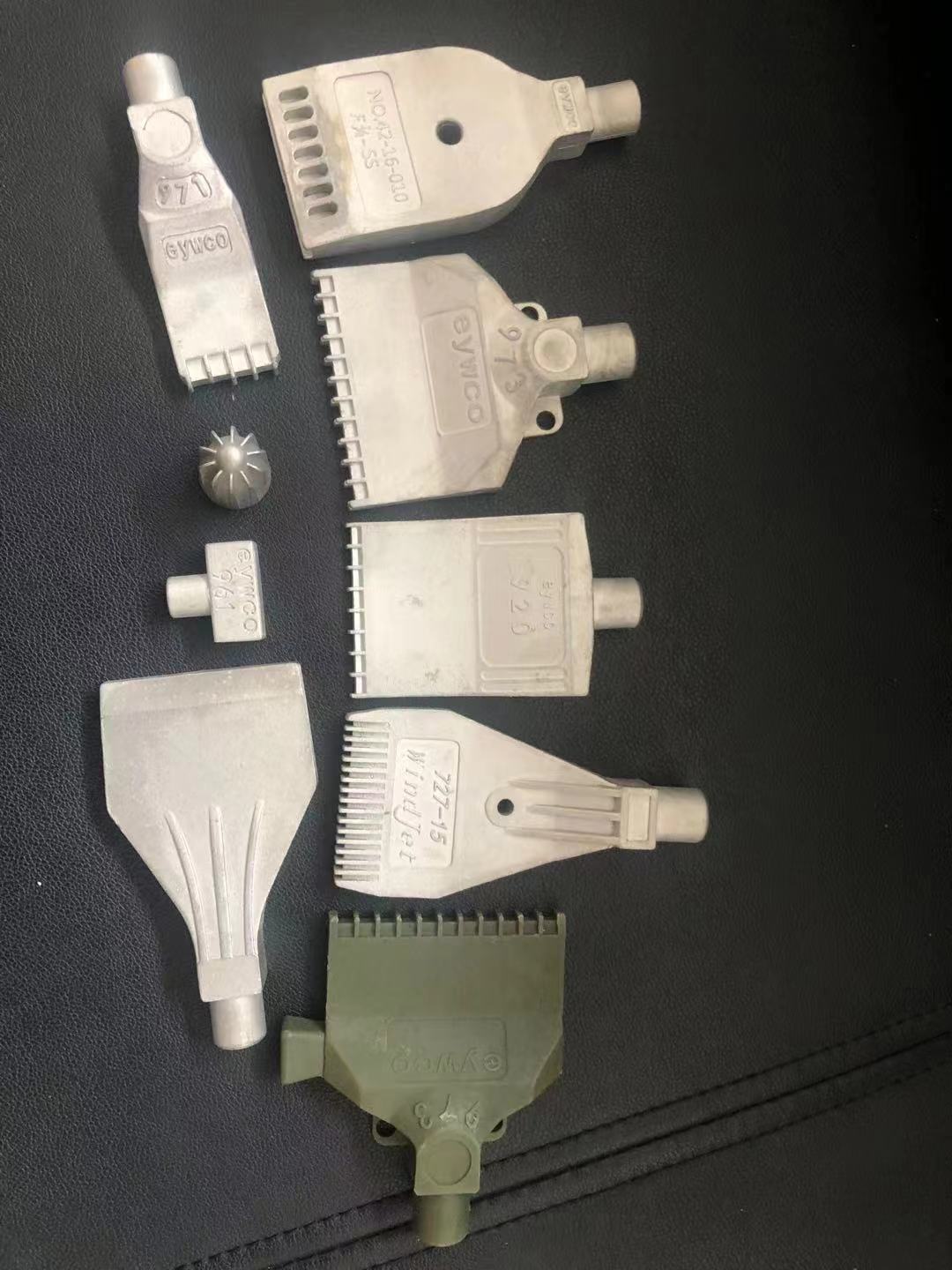

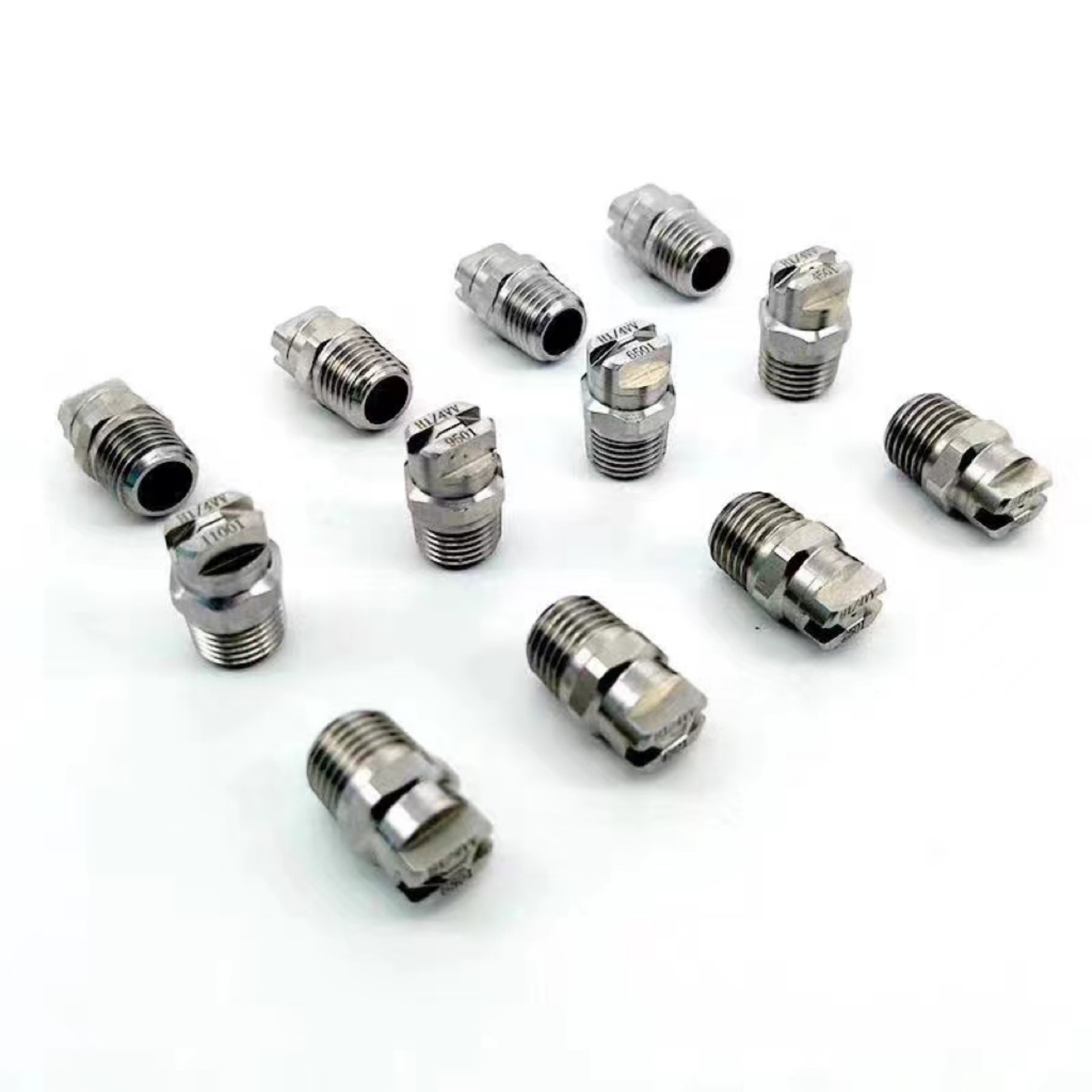

1. Flat Fan Nozzles:
• Spray Pattern: Produce a flat, fan-shaped spray.
• Application: Used for uniform coverage in agricultural spraying, car washing, and coating processes.
2. Full Cone Nozzles:
• Spray Pattern: Create a full, circular cone of spray.
• Application: Ideal for cooling, washing, and dust control where a wide coverage area is needed.
3. Hollow Cone Nozzles:
• Spray Pattern: Produce a hollow circular cone of spray.
• Application: Suitable for applications where a ring of spray is required, such as in certain chemical processes.
4. Solid Stream Nozzles:
• Spray Pattern: Emit a solid, concentrated stream of liquid.
• Application: Used for high-impact cleaning and cutting applications.
5. Mist Nozzles:
• Spray Pattern: Generate a very fine mist of droplets.
• Application: Used for humidification, cooling, and fine spray applications such as in greenhouses or cooling towers.

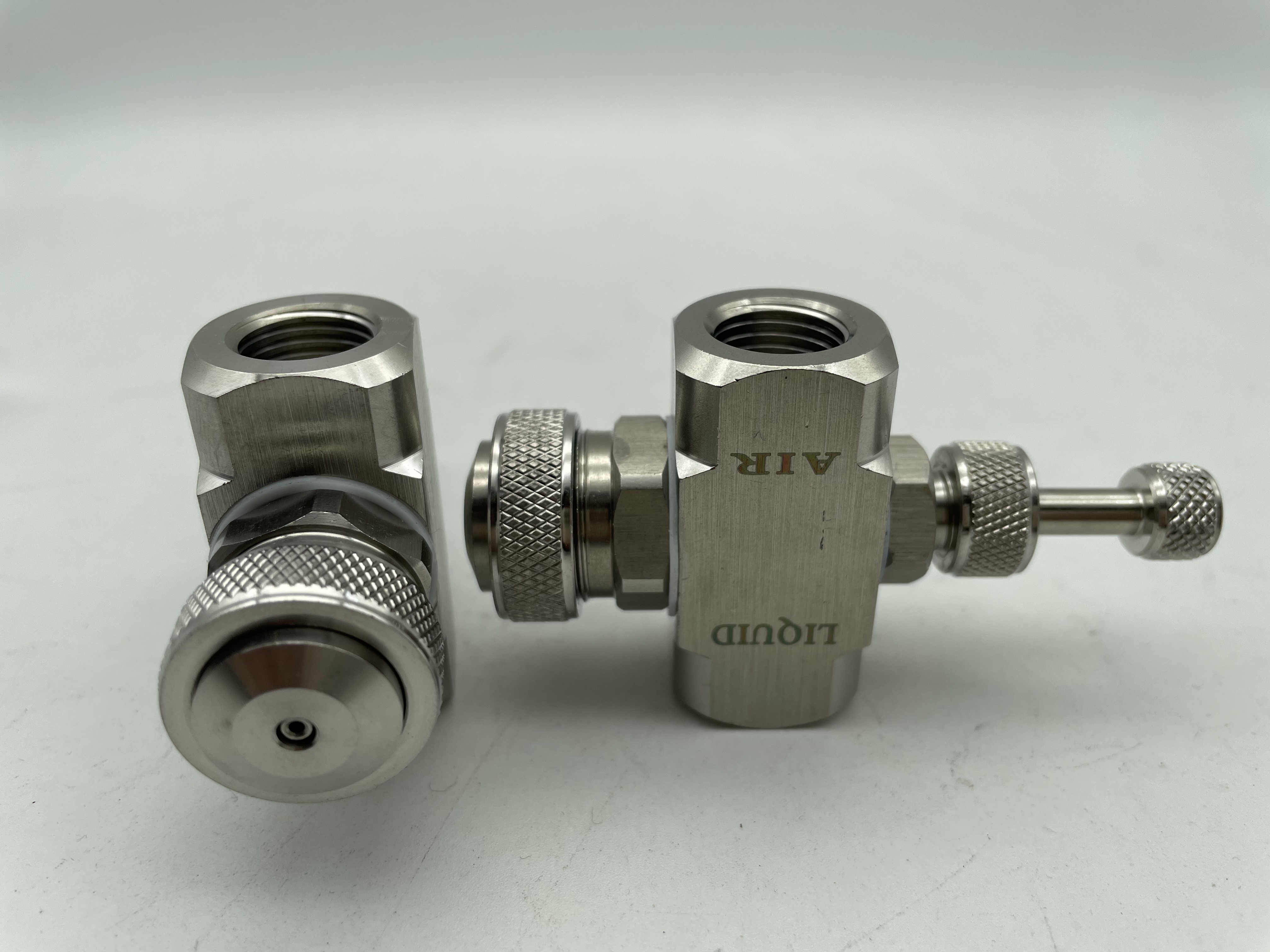

6. Air Atomizing Nozzles:
• Operation: Use compressed air to atomize the liquid into fine droplets.
• Application: Common in painting, coating, and cooling applications requiring fine mist and precise control.
7. Adjustable Nozzles:
• Function: Allow adjustment of the spray pattern and flow rate.
• Application: Versatile and used in applications where different spray characteristics are needed.
Applications of Spray Nozzles:
1. Agricultural Irrigation:
• Use: Spraying water, fertilizers, and pesticides evenly over crops.
• Requirement: Uniform coverage and droplet size to prevent plant damage and ensure efficient use of resources.
2. Industrial Processes:
• Use: Cooling, coating, cleaning, and lubrication in manufacturing and processing plants.
• Requirement: Specific spray patterns and flow rates tailored to the process needs.
3. Firefighting:
• Use: Dispersing water or fire retardants to extinguish fires.
• Requirement: High flow rates and specific spray patterns for effective coverage and penetration.
4. Cleaning:
• Use: High-pressure washing and sanitizing surfaces in industries such as food and beverage, automotive, and pharmaceuticals.
• Requirement: High-impact sprays and adjustable patterns for thorough cleaning.
5. Cooling and Humidification:
• Use: Cooling products, machinery, or air in industrial settings and humidifying environments like greenhouses.
• Requirement: Fine mist sprays for effective cooling and moisture control.
6. Coating:
• Use: Applying paint, adhesives, or other coatings uniformly on surfaces.
• Requirement: Precise control over droplet size and spray pattern for even application and finish quality.
Maintenance and Troubleshooting:
1. Regular Cleaning:
• Prevent Clogging: Clean the nozzles regularly to prevent clogging, which can affect spray pattern and flow rate.
• Use Appropriate Solvents: Clean with solvents compatible with the liquid used in the application.
2. Inspection:
• Check for Wear and Damage: Inspect nozzles for signs of wear or damage, especially if made from materials prone to erosion or corrosion.
• Replace Worn Parts: Replace orifices and other components showing significant wear to maintain performance.
3. Calibration:
• Ensure Accurate Flow Rates: Calibrate nozzles periodically to ensure they deliver the correct flow rates and spray patterns.
• Adjust Settings: Adjust pressure and other settings as needed to maintain consistent performance.
