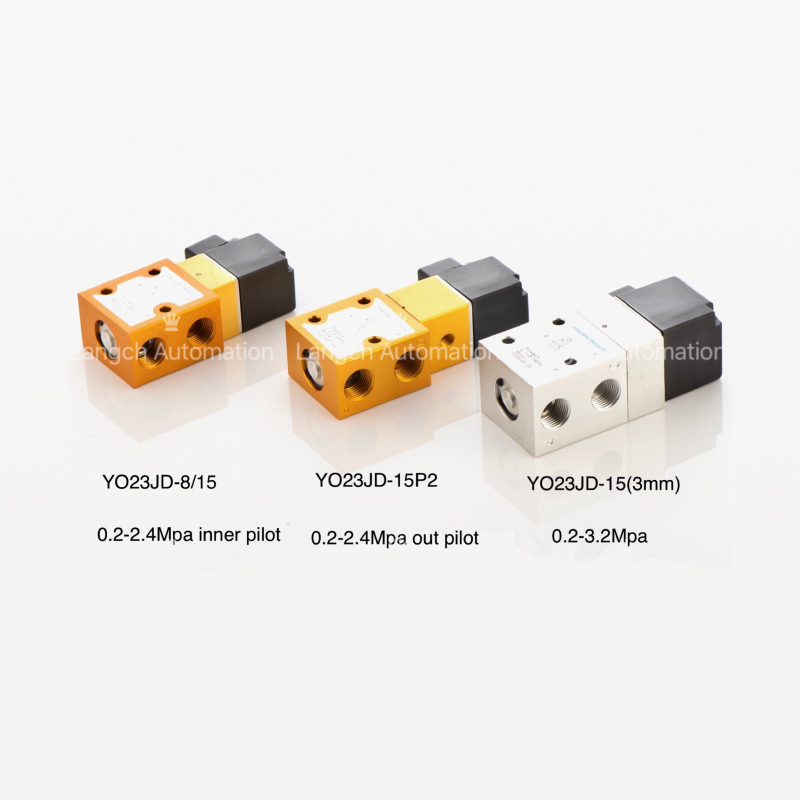

YO23JD
YONGCHENG
Using pneumatic valves for a plastic blowing machine involves selecting, installing, and configuring the valves to ensure optimal performance and reliability. Here’s a comprehensive guide:
1. Understanding the Role of Pneumatic Valves in Plastic Blowing Machines
Pneumatic valves in plastic blowing machines control the flow of compressed air that shapes the plastic. Key functions include:
• Controlling air pressure: Ensuring the correct pressure is applied to mold the plastic.
• Timing the air flow: Regulating the duration and timing of air bursts to achieve the desired plastic shape.
• Directing air flow: Routing air to specific parts of the machine as needed.
2. Selecting the Right Pneumatic Valves
Factors to Consider:
• Valve Type:
• Solenoid Valves: Electrically operated valves for precise control.
• Directional Control Valves: Direct air flow to specific paths.
• Pressure Relief Valves: Protect the system from overpressure.
• Flow Control Valves: Regulate the speed of air flow.
• Specifications:
• Pressure Rating: Ensure the valve can handle the operating pressure.
• Flow Rate: Match the valve’s flow capacity with the machine’s requirements.
• Response Time: Fast response times are crucial for precise control.
• Material Compatibility:
• Ensure the valve materials are compatible with the types of plastic and operating environment (e.g., temperature, chemical resistance).
3. Installation of Pneumatic Valves
Steps:
1. Mounting:
• Securely mount the valves on the machine frame or a dedicated valve manifold.
• Follow the manufacturer’s guidelines for mounting orientation and space requirements.
2. Pneumatic Connections:
• Connect the valves to the air supply and other components using appropriate fittings and tubing.
• Ensure all connections are airtight to prevent leaks.
3. Electrical Connections:
• For solenoid valves, connect the electrical wires to the control system (e.g., PLC).
• Follow the wiring diagram and ensure proper grounding.
4. Safety Precautions:
• Depressurize the system before installation to avoid accidents.
• Use safety valves and pressure regulators to maintain safe operating conditions.
4. Configuring and Testing the Valves
Configuration:
• Control System Integration:
• Program the control system (e.g., PLC) to operate the valves according to the machine’s cycle requirements.
• Set parameters for valve actuation timing, duration, and sequence.
• Pressure Settings:
• Adjust pressure regulators to achieve the desired air pressure for blowing the plastic.
• Use pressure gauges to monitor and fine-tune the settings.
Testing:
• Functional Testing:
• Manually actuate each valve to verify correct operation.
• Check for proper air flow and pressure at different stages of the machine cycle.
• Leak Testing:
• Apply soapy water to joints and connections to detect leaks.
• Tighten or replace any faulty connections as needed.
• Operational Testing:
• Run the machine through a complete cycle to ensure all valves operate synchronously and correctly.
• Monitor the machine’s performance and make necessary adjustments.
5. Maintenance and Troubleshooting
Regular Maintenance:
• Inspection:
• Regularly inspect valves for signs of wear, damage, or leaks.
• Check electrical connections for corrosion or loose contacts.
• Cleaning:
• Keep valves clean and free of debris.
• Use appropriate cleaning agents compatible with valve materials.
• Replacement of Parts:
• Replace worn or damaged seals, diaphragms, and other components as per the manufacturer’s recommendations.
• Keep a stock of common spare parts for quick replacements.
Troubleshooting Common Issues:
• Air Leaks:
• Check connections and seals for leaks.
• Tighten fittings or replace seals as needed.
• Valve Malfunction:
• Verify electrical connections and control signals.
• Check for obstructions or debris inside the valve.
• Replace faulty valves if necessary.
• Pressure Issues:
• Adjust pressure regulators to ensure correct settings.
• Inspect for clogged filters or regulators that may restrict air flow.
Example Setup for a Plastic Blowing Machine
1. Selecting Valves:
• Choose solenoid valves with a pressure rating of 6-8 bar and a flow rate suitable for the machine’s air demand.
2. Installing Valves:
• Mount the valves on a valve manifold attached to the machine frame.
• Connect the air supply using pneumatic tubing with quick-connect fittings.
• Wire the solenoid valves to the machine’s PLC following the wiring diagram.
3. Configuring Valves:
• Program the PLC to actuate the valves in the correct sequence, ensuring the timing aligns with the plastic blowing process.
• Set the pressure regulators to 7 bar for optimal plastic molding.
4. Testing:
• Manually trigger each valve to verify air flow and response.
• Run a test cycle to monitor the machine’s performance and make adjustments as needed.
By following these steps, you can effectively use pneumatic valves in a plastic blowing machine, ensuring efficient and reliable operation.
