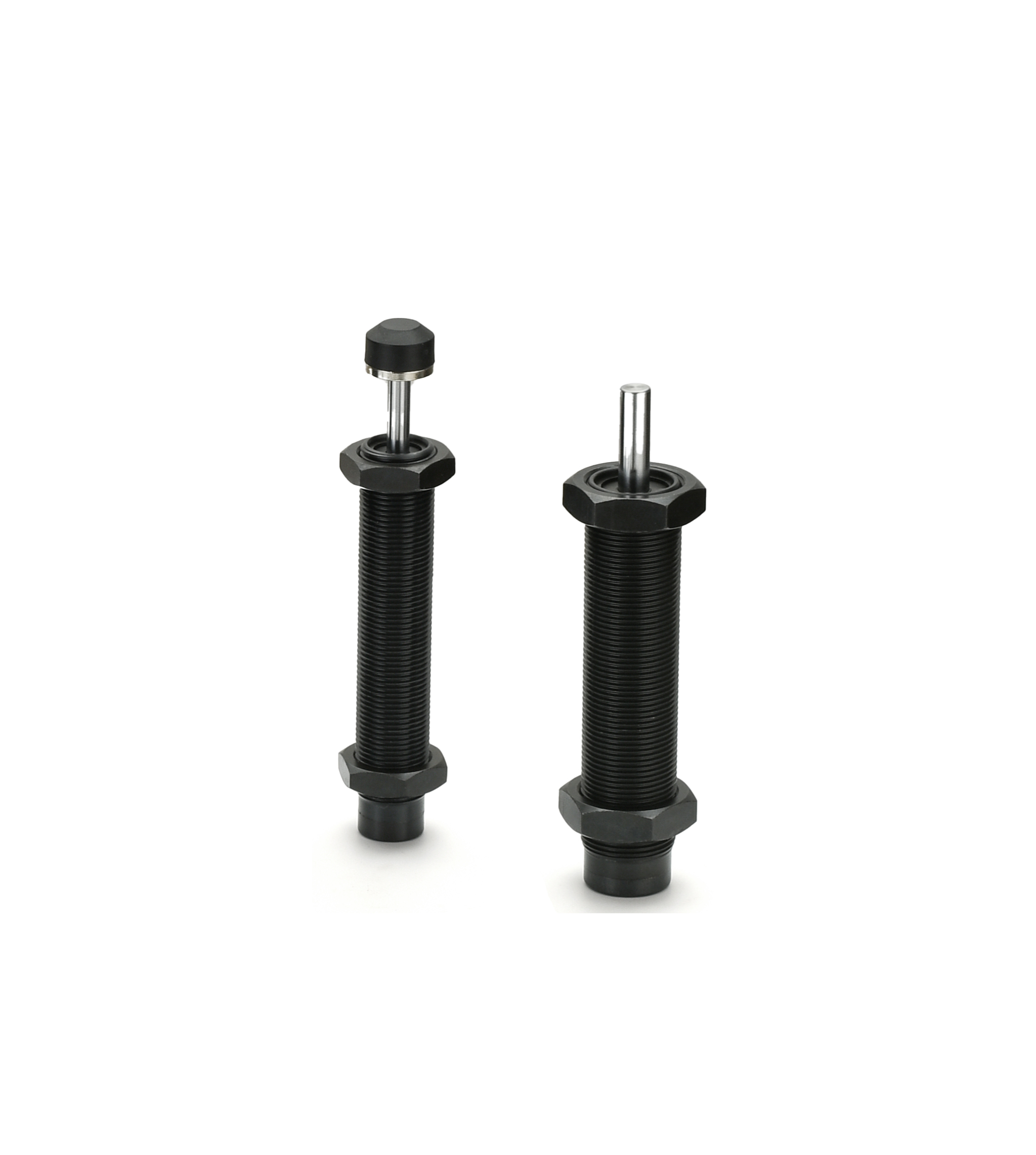

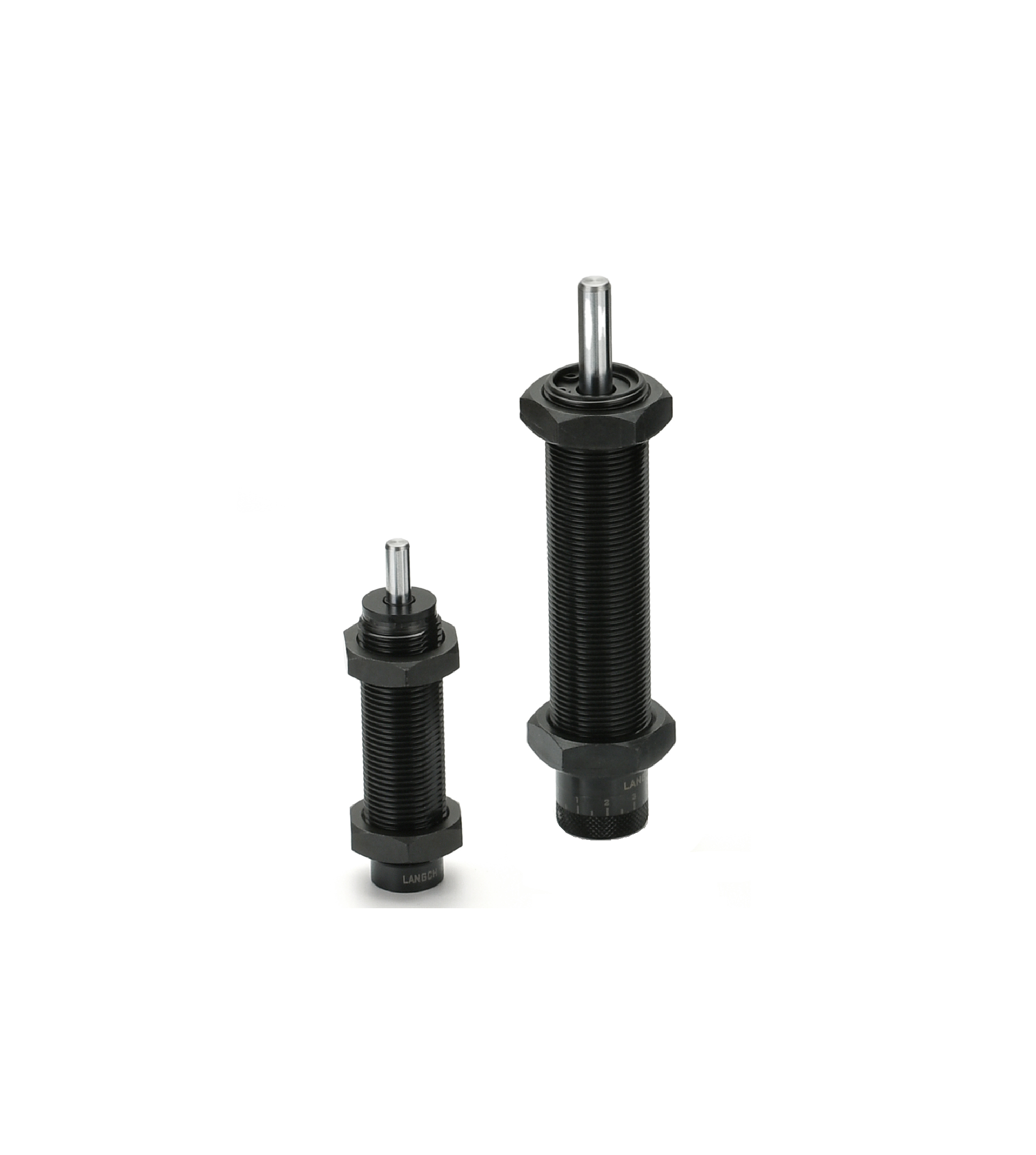

Adjustable Industrial Shock Absorber pneumatic shock absorber

The AD series Adjustable Industrial Shock Absorber pneumatic shock absorber is designed with an adjustable structure.

Adjustable Industrial Shock Absorber pneumatic shock absorber offer the most flexible solutions to energy absorption application requirements when input parameters vary or are not clearly defined. By simply turning an innovative adjustment knob, the damping force of the miniature shock absorbers can be changed incrementally to accommodate a wide range of input conditions and applications requiring limited space and energy absorption flexibility

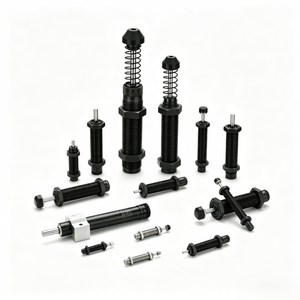

We can offers the broadest range from small bore adjustable miniature shock absorbers to mid-bore adjustable hydraulic series industrial shock absorbers, and mounting accessories in the marketplace today. The adjustable shock absorbers have a low profile adjustment knob for easy energy absorption customization for both imperial or metric thread configurations to accommodate a wide array of applications.

• Stroke:  10mm-50mm

• Screw thread: M14x1.5-M36x1.5

• Max.Effective Mass Weight: 80kgs -1400kgs

• Max.Impact Speed: 3.2m/s -3.6m/s

• Operation Temperature : -10℃-+85℃

APPLICATION

The Adjustable Industrial Shock Absorber pneumatic shock absorber are widely used in PET bottle blowing industry, robot technology , lumber industry equipment , circuit breake , pick and place system, turnstile and other deceleration , vibration control industry area .

THE ADVANTAGES OF INDUSTRIAL SHOCK ABSORBER

• Safe, reliable production

• Long service life of the machines

• Low operating costs

• Quiet, economical machines

• Less stress on the machine

• Economical improvement

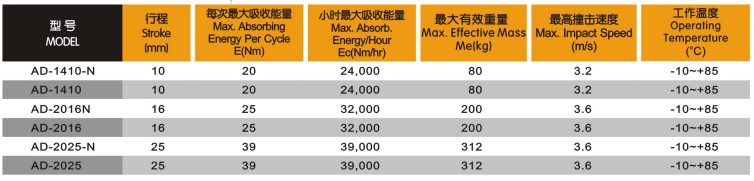

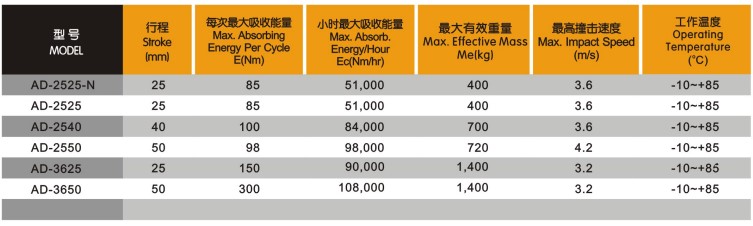

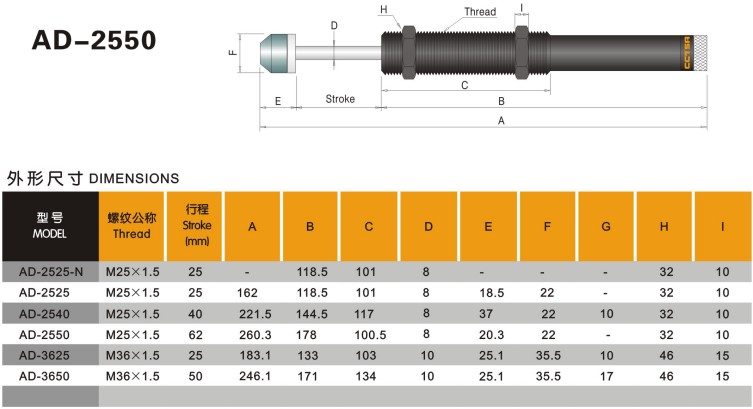

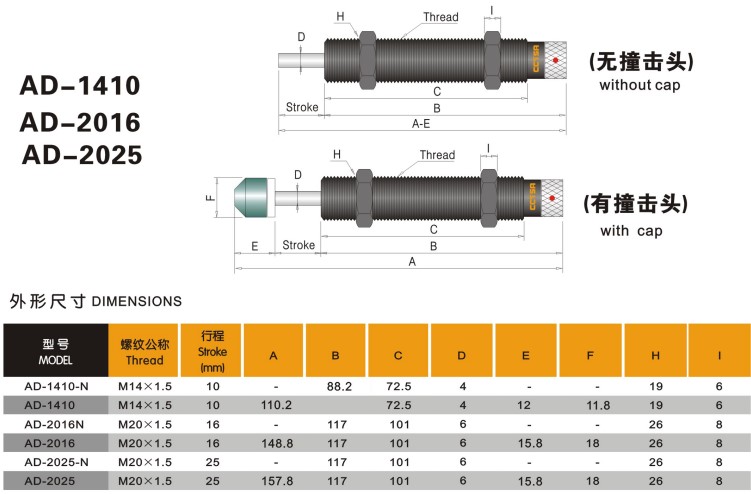

PARAMETER AND DIMENSIONS

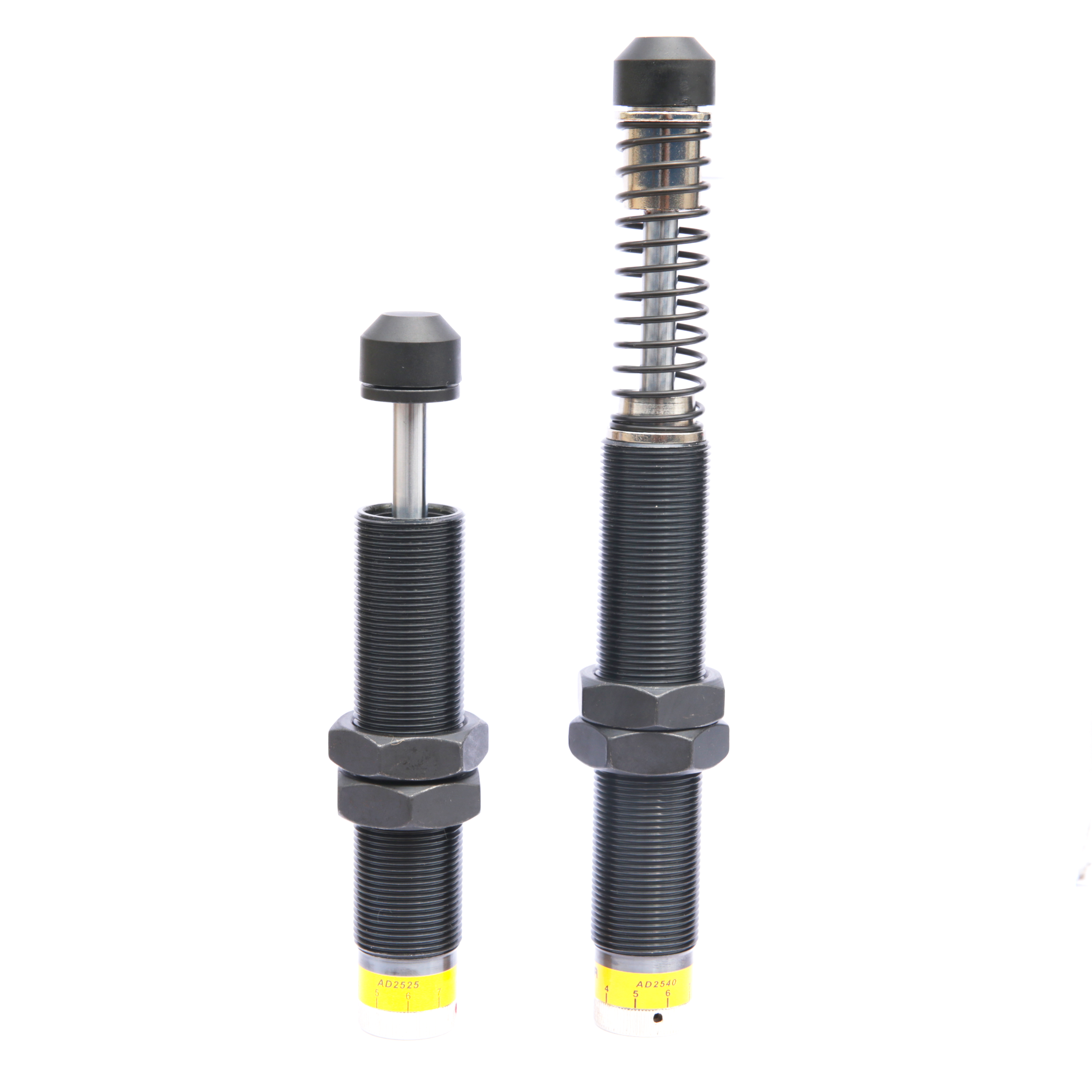

High Precision Adjustable Pneumatic Industrial Shock Absorber for Robot
