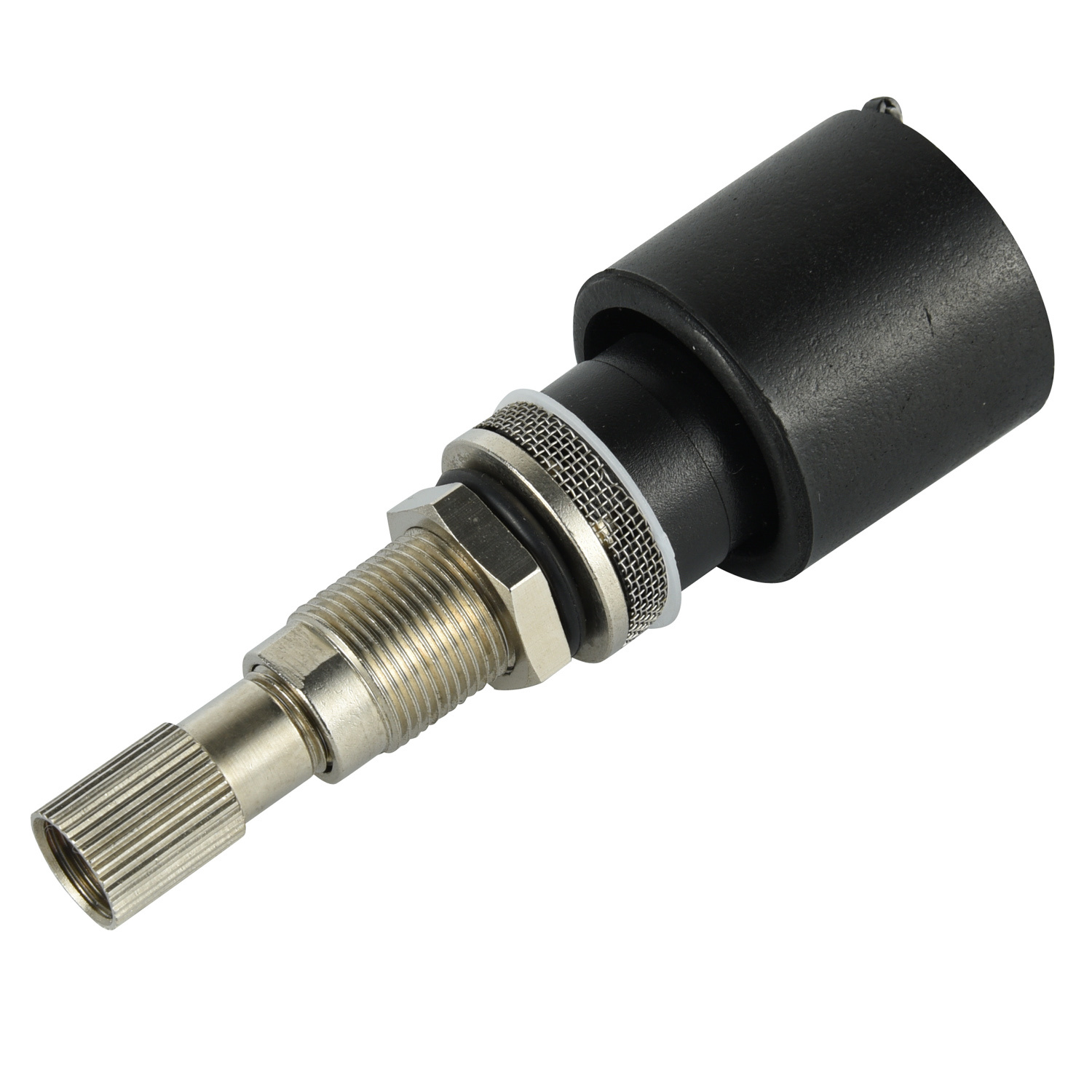

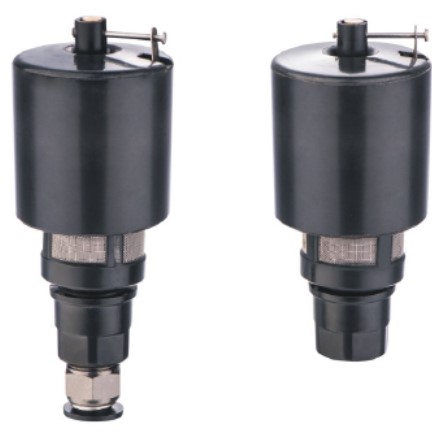

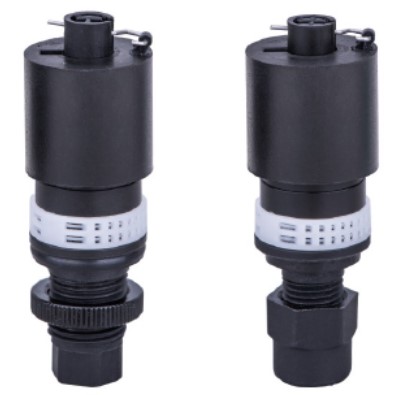

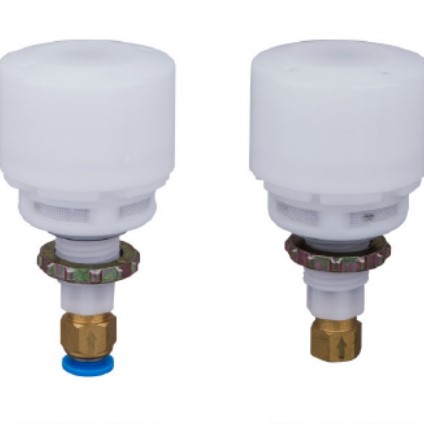

An auto drain valve floater operates using a float mechanism:
1. Float Mechanism: The valve contains a float that rises and falls with the level of condensate in the reservoir.
2. Valve Actuation: As condensate accumulates, the float rises. When it reaches a certain level, it triggers the valve to open, allowing the condensate to drain out.
3. Automatic Operation: Once the condensate level drops, the float descends, causing the valve to close and stop the drainage. This cycle repeats automatically, ensuring that condensate is regularly removed without manual intervention.
Key Features
1. Automatic Operation: Eliminates the need for manual draining, reducing maintenance efforts and ensuring consistent condensate removal.
2. Float Mechanism: Provides reliable operation by using a simple mechanical principle that is less prone to failure.
3. Durability: Often made from robust materials like brass, stainless steel, or high-quality plastics to withstand harsh conditions and corrosive condensates.

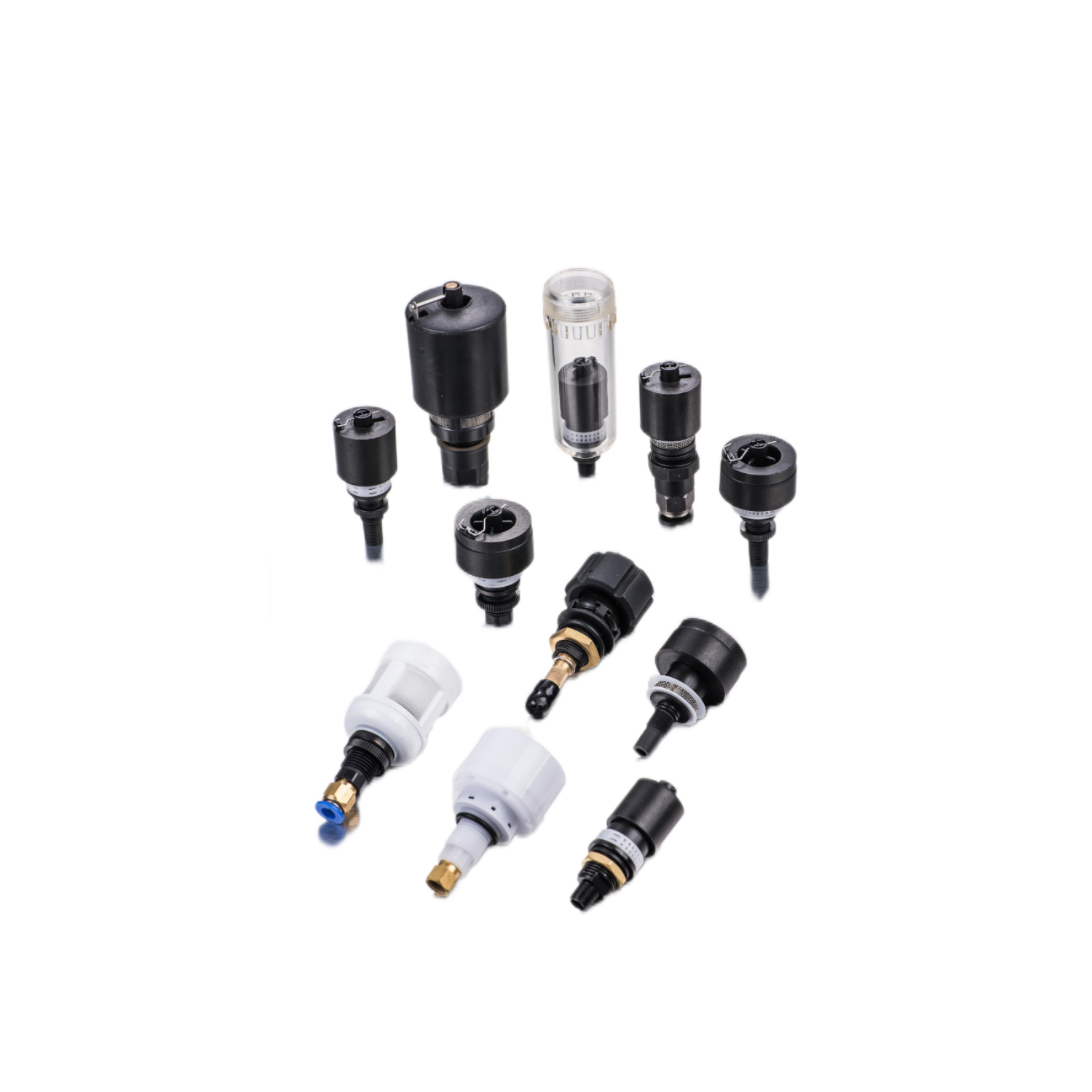

4. Variety of Sizes: Available in different sizes to fit various system requirements and condensate volumes.
Benefits
• Enhanced Efficiency: Regular removal of condensate prevents moisture buildup, which can reduce system efficiency and damage components.
• Reduced Maintenance: Automatic operation reduces the need for manual monitoring and drainage, saving time and labor.
• Extended Equipment Life: Preventing moisture and contaminants from accumulating in the system helps to reduce corrosion and wear, extending the lifespan of pneumatic equipment.
• Improved Air Quality: Removing condensate helps maintain clean, dry air, which is crucial for the proper functioning of pneumatic tools and processes.
Common Applications
• Compressed Air Systems: In industrial settings where compressed air is used for various tools and processes.
• Air Receivers: Storage tanks that hold compressed air and where condensate can accumulate.
• Air Dryers: Equipment designed to remove moisture from compressed air, which still needs to handle the condensate that collects.
• Filter Units: In-line filters that trap water, oil, and other contaminants from compressed air lines.
Installation and Maintenance
• Installation: Typically installed at the lowest point of air receivers, air dryers, and other components where condensate collects.
• Maintenance: Regular inspection is needed to ensure the float mechanism is not clogged or damaged. Some designs allow for easy cleaning and servicing.
Selection Criteria
• System Pressure: Ensure the drain valve is rated for the operating pressure of the compressed air system.
• Condensate Volume: Choose a valve capable of handling the expected volume of condensate.
• Material Compatibility: Select materials that are compatible with the type of condensate (e.g., oil, water, chemicals) and the environmental conditions.
Using an auto drain valve floater is a practical solution for maintaining the efficiency and reliability of compressed air systems by ensuring regular and automatic removal of condensate.
