Solenoid valve is an electromechanically operated valve that uses an electric current to generate a magnetic field, which actuates a mechanism to open or close the valve. These valves are widely used in fluid control applications, including air, water, gas, and oil systems, due to their precision, reliability, and ease of integration with automated systems.
Key Components of a Solenoid Valve:
1. Solenoid Coil:
- Function: Converts electrical energy into magnetic energy when energized.
- Construction: Made of wire (usually copper) wound into a coil around a ferromagnetic core.
2. Plunger (Armature):
- Function: Moves in response to the magnetic field generated by the solenoid coil.
- Construction: Typically a cylindrical piece of ferromagnetic material that moves linearly inside the coil.
3. Valve Body:
- Function: Houses the internal components and provides ports for fluid entry and exit.
- Materials: Commonly made from brass, stainless steel, or plastic, depending on the application.
4. Spring:
- Function: Returns the plunger to its original position when the solenoid coil is de-energized.
- Construction: Typically a helical spring that provides a restoring force.
5. Seal (Diaphragm or Poppet):
- Function: Provides a tight seal to control fluid flow when the valve is closed.
- Materials: Often made from rubber, Teflon, or other materials suitable for the specific fluid and operating conditions.
Types of Solenoid Valves:
1. Direct-Acting Solenoid Valves:
- Operation: The solenoid directly opens or closes the valve without requiring line pressure.
- Application: Suitable for low flow rates and low pressure applications.

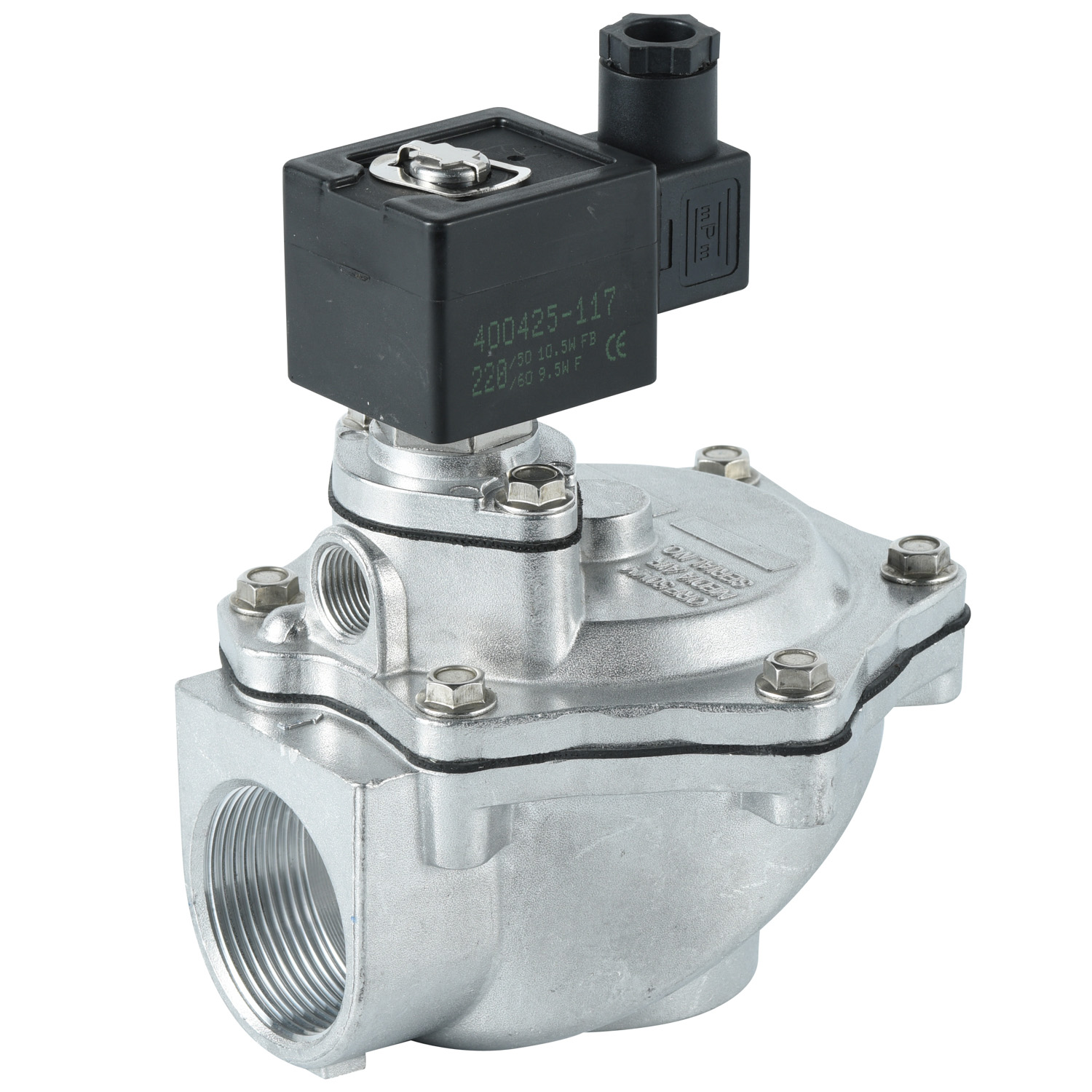

2. Pilot-Operated (Servo-Assisted) Solenoid Valves:
- Operation: Use line pressure to assist in opening and closing the valve, allowing them to control larger flow rates with smaller solenoids.
- Application: Common in higher flow and higher pressure systems.

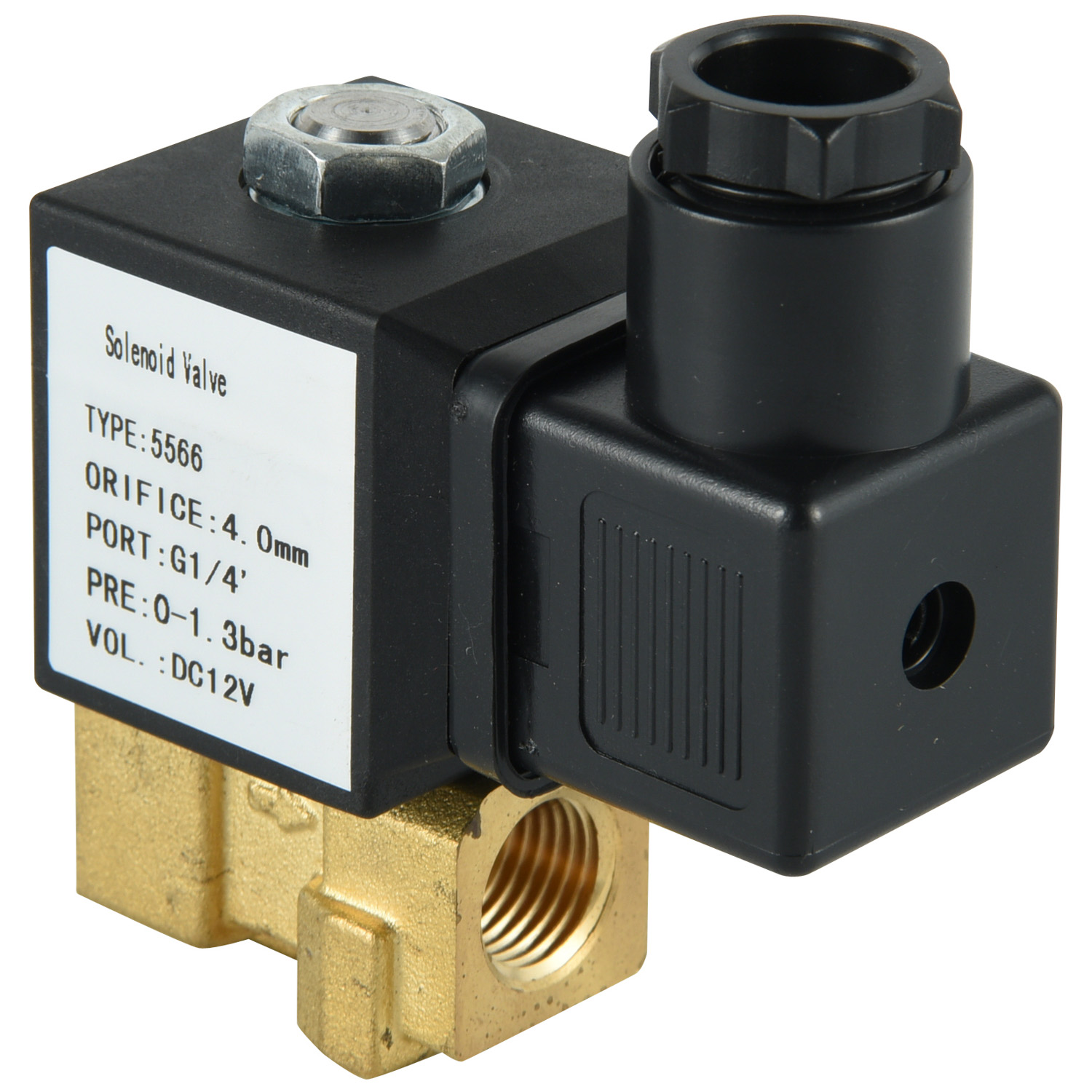

3. Two-Way Solenoid Valves:
- Configuration: Have two ports (inlet and outlet) and can be normally closed (NC) or normally open (NO).
- Function: Used to start or stop the flow of fluid.

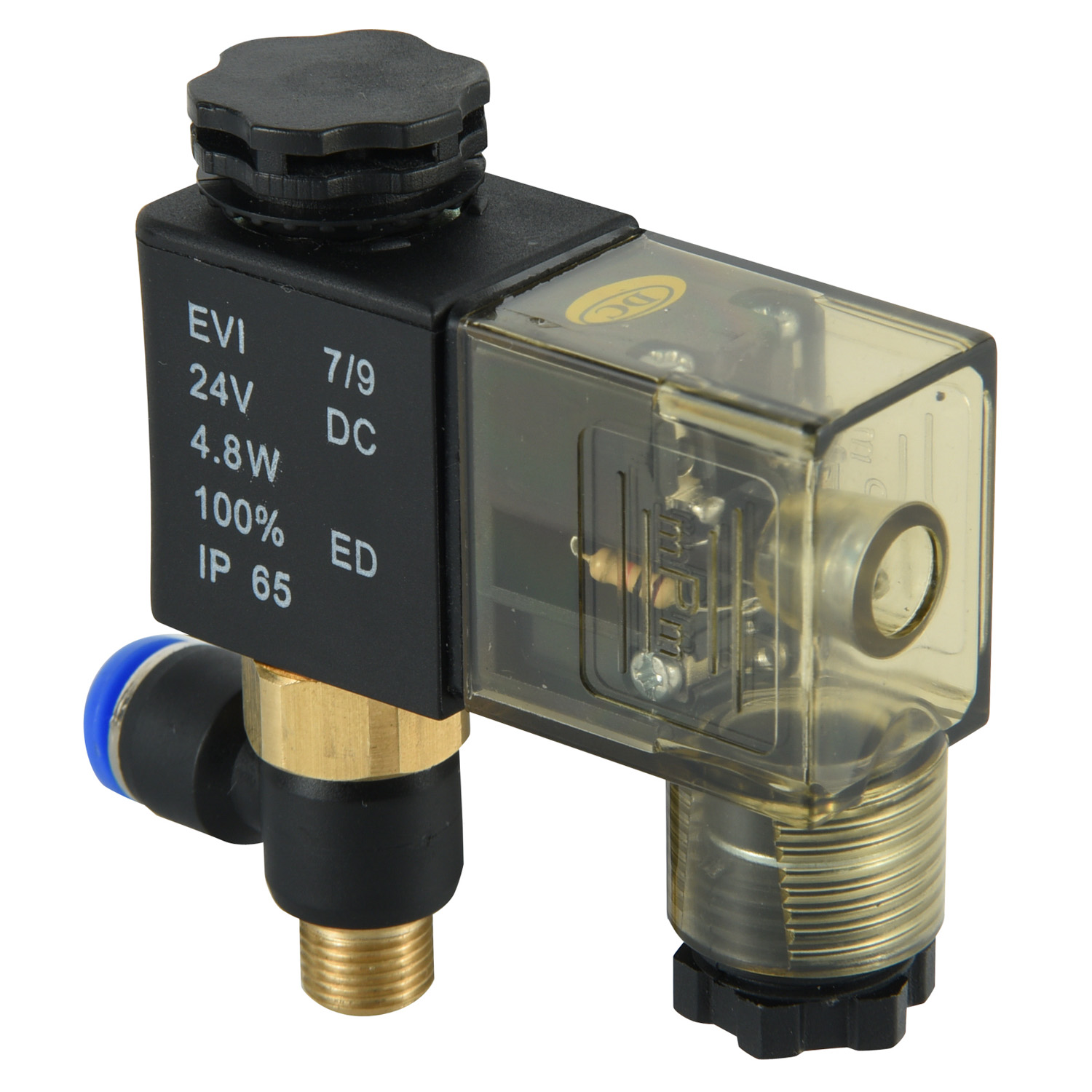

4. Three-Way Solenoid Valves:
- Configuration: Have three ports (one common port, one normally open port, and one normally closed port).
- Function: Used to divert flow between two different paths.

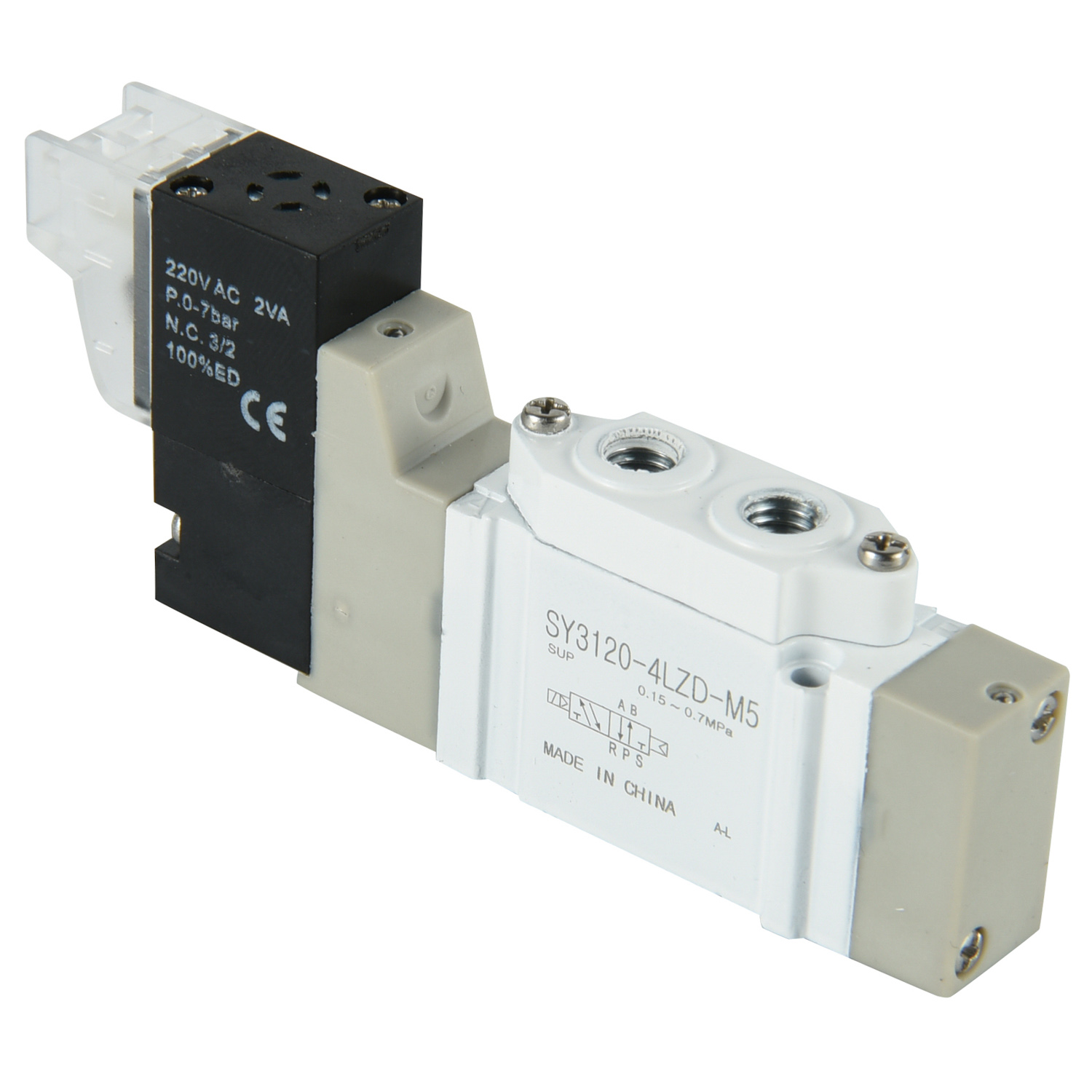

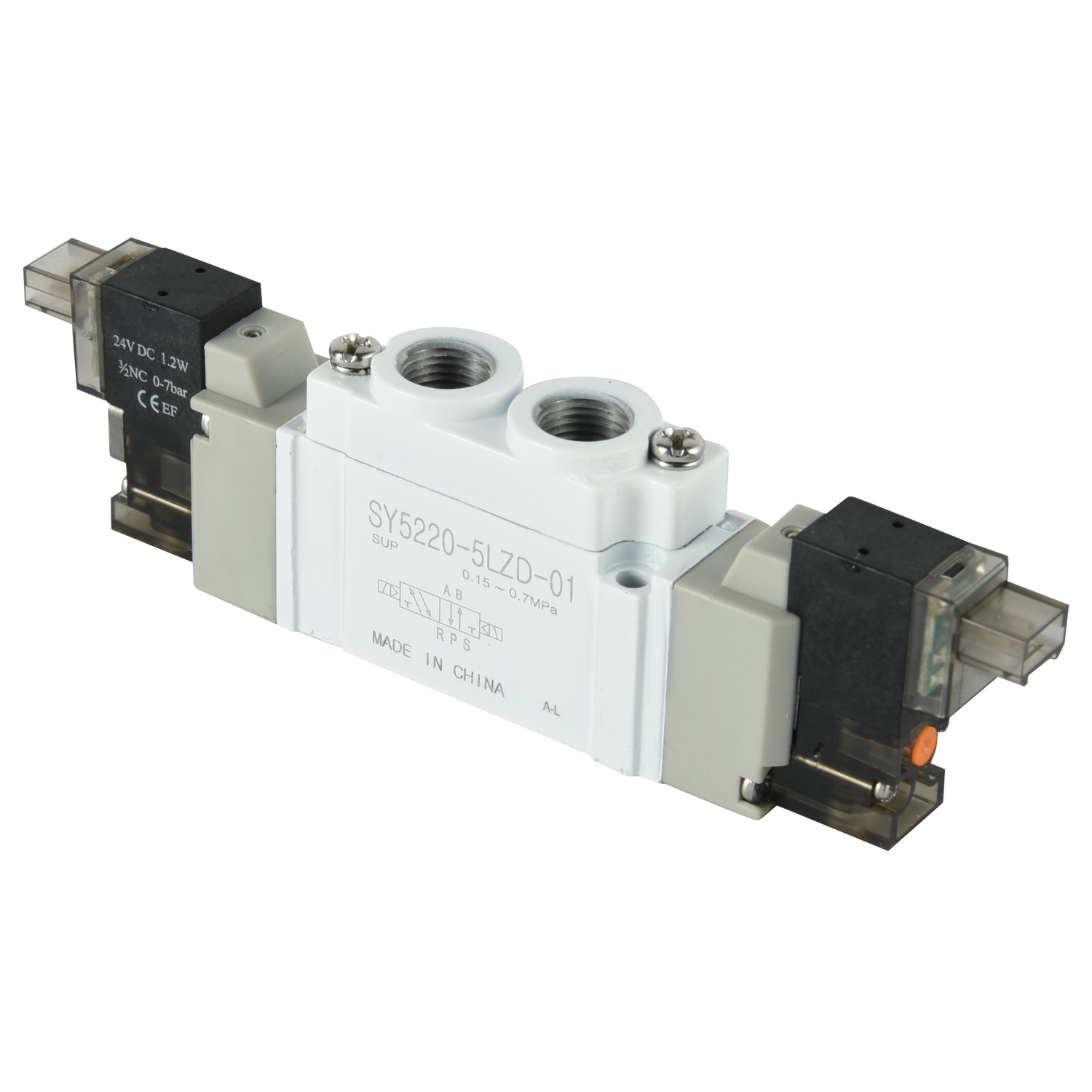

5. Four-Way Solenoid Valves:
- Configuration: Have four or five ports and are used to direct flow in complex systems, such as double-acting cylinders.
- Function: Typically used in pneumatic and hydraulic systems to control actuators.
Applications of Solenoid Valves:
1. Industrial Automation: Control the flow of air, water, and other fluids in automated machinery.
2. HVAC Systems: Regulate the flow of refrigerants and other fluids in heating, ventilation, and air conditioning systems.
3. Medical Equipment: Used in devices such as ventilators and dialysis machines to control precise fluid flow.
4. Automotive Systems: Manage fuel, air, and coolant flow in various automotive applications.
5. Irrigation Systems: Control the flow of water in irrigation and sprinkler systems.
6. Process Control: Used in chemical and pharmaceutical industries to regulate the flow of gases and liquids in various processes.
Operation of a Solenoid Valve:
1. Energizing the Coil:
- An electrical current passes through the solenoid coil, generating a magnetic field.
- The magnetic field pulls the plunger or armature towards the coil.
2. Opening the Valve:
- As the plunger moves, it lifts or depresses the seal, allowing fluid to flow through the valve.
3. De-Energizing the Coil:
- When the electrical current is stopped, the magnetic field collapses.
- The spring returns the plunger to its original position, closing the valve and stopping fluid flow.
Advantages of Solenoid Valves:
1. Fast Response Time: Can switch on and off rapidly, providing quick control of fluid flow.
2. Remote Control: Easily operated by electrical signals, allowing integration with automated control systems.
3. Compact Design: Small size and simple construction make them suitable for various applications.
4. Reliability: Fewer moving parts lead to longer service life and low maintenance requirements.
Maintenance and Troubleshooting:
1. Regular Inspection:
- Check for signs of wear, damage, or corrosion.
- Ensure electrical connections are secure.
2. Cleaning:
- Remove debris and buildup from the valve ports and seals to ensure proper operation.
3. Seal Replacement:
- Replace worn or damaged seals to prevent leaks and maintain performance.
4. Coil Check:
- Measure the resistance of the solenoid coil to ensure it is within the specified range.
- Replace the coil if it is open or shorted.
Conclusion
Solenoid valves are versatile, reliable components used to control fluid flow in a wide range of applications. Their ability to be remotely controlled, rapid response time, and compact design make them essential in industrial automation, automotive systems, medical devices, and many other fields. Understanding their operation, types, and maintenance requirements is crucial for ensuring efficient and effective fluid control.
