Langch

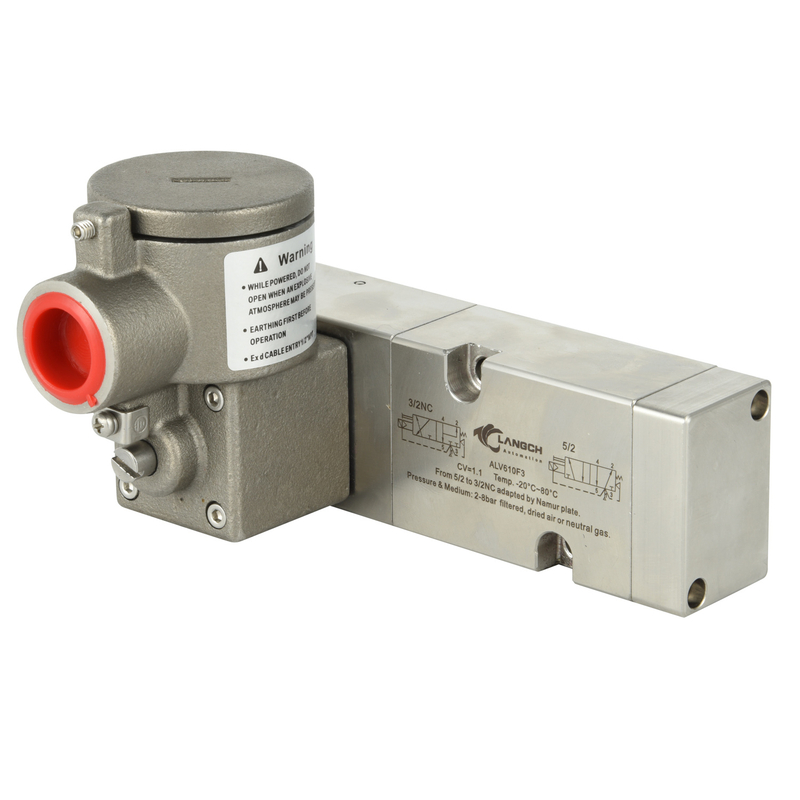

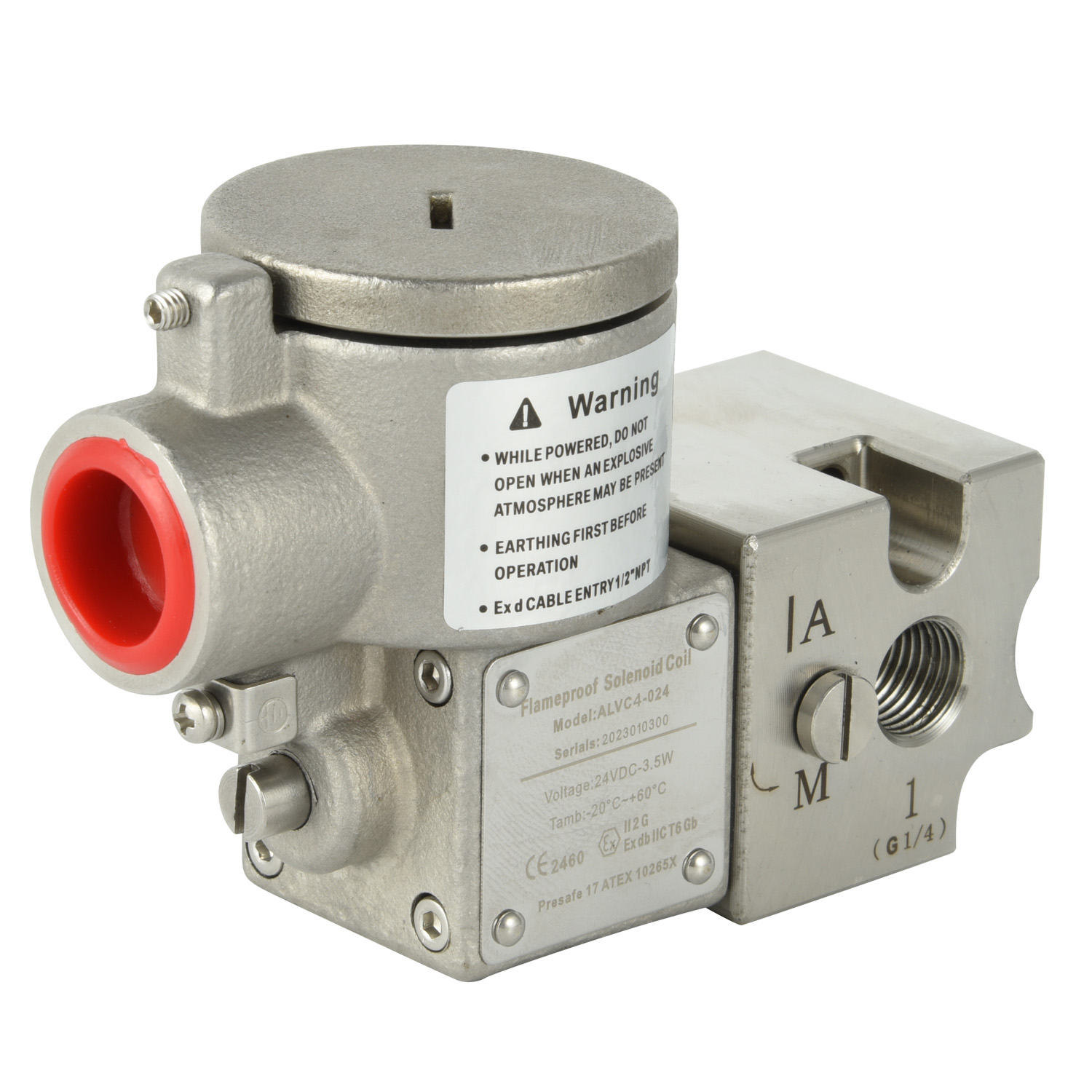

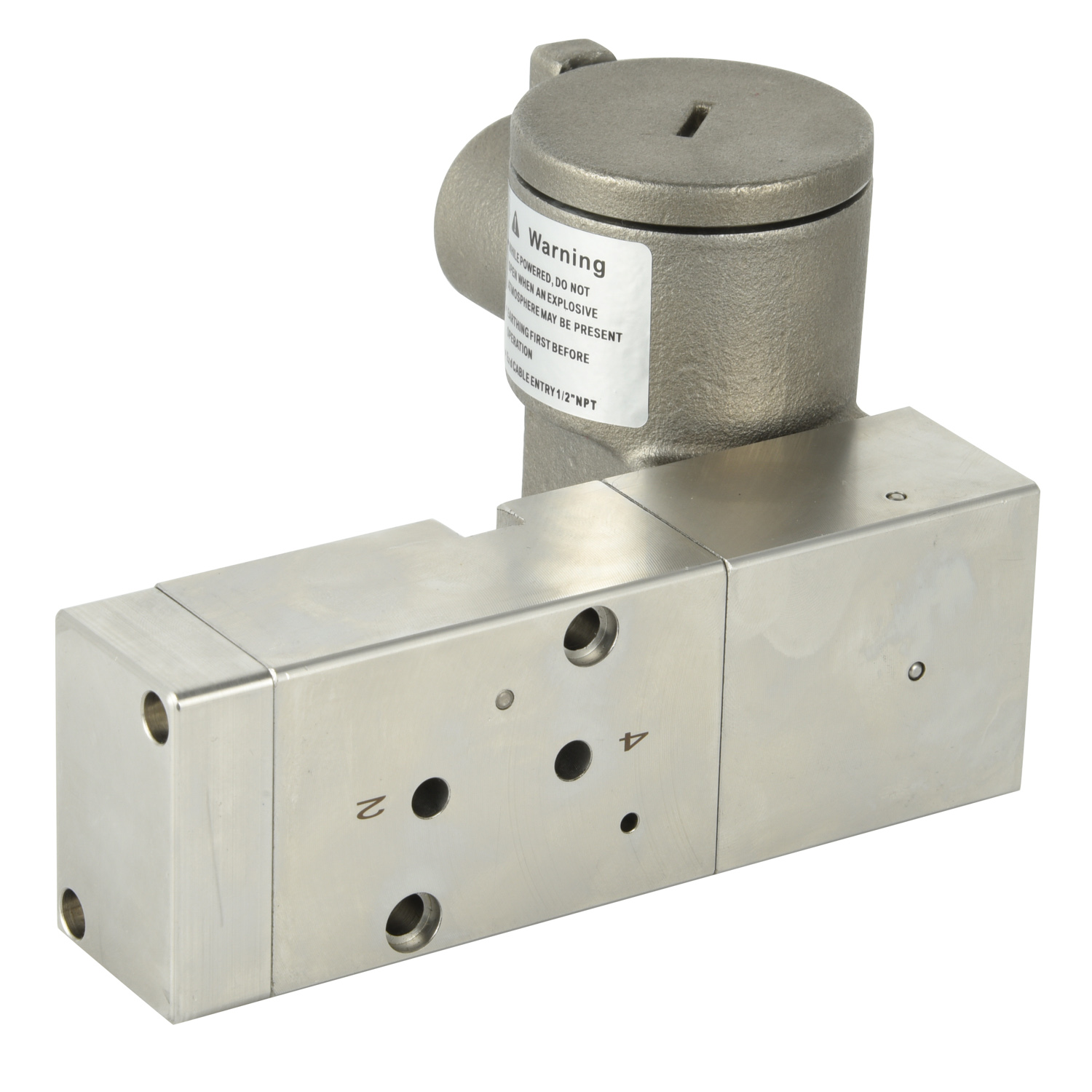

Explosion-proof (Ex-proof) solenoid valve is a specialized valve designed for use in hazardous environments where there is a risk of explosion due to the presence of flammable gases, vapors, or dust. These valves are engineered to prevent the ignition of explosive atmospheres, ensuring safe operation in such conditions.
Key Features of Explosion-Proof Solenoid Valves
1. Durable Housing:
• Constructed from robust materials like stainless steel or brass to withstand harsh environments.
• The housing is designed to contain any sparks or heat that might be generated within the valve.
2. Sealed Enclosure:
• The internal components are enclosed in a sealed housing to prevent the ingress of hazardous substances.
• Ensures that no internal components can ignite the surrounding atmosphere.
3. Certification and Compliance:
• Certified to meet international safety standards such as ATEX (Europe), IECEx (global), and UL (United States).
• These certifications ensure the valves are suitable for use in specific hazardous locations.
4. Temperature and Pressure Ratings:
• Capable of operating under a wide range of temperatures and pressures.
• Designed to maintain functionality and safety even under extreme conditions.
5. Manual Override:
• Some models feature a manual override to allow for operation during power failures or emergency situations.
Applications
Explosion-proof solenoid valves are used in various industries, including:
• Oil and Gas: For controlling the flow of crude oil, natural gas, and other hydrocarbons.
• Chemical Processing: In handling volatile chemicals and solvents.
• Mining: For ventilation systems and handling explosive dust.
• Pharmaceuticals: Where flammable solvents are used in the manufacturing process.
• Food and Beverage: In environments where alcohol or other flammable substances are present.
Safety Standards and Certifications
• ATEX: A European certification for equipment used in explosive atmospheres.
• IECEx: An international certification that ensures compliance with global standards for explosive environments.
• UL (Underwriters Laboratories): A certification primarily used in North America, focusing on safety standards.
Selection Criteria
When selecting an explosion-proof solenoid valve, consider the following:
1. Hazardous Area Classification: Ensure the valve is rated for the specific classification of the hazardous area.
2. Material Compatibility: Choose a valve made from materials compatible with the fluids or gases it will control.
3. Environmental Conditions: Consider the ambient temperature, pressure, and exposure to corrosive substances.
4. Operational Requirements: Assess the required flow rate, response time, and whether a manual override is necessary
