Selecting a power source for linear motion is not just about finding raw horsepower. It requires matching precise fluid dynamics to strict mechanical output demands. Engineers must constantly balance system force, actuation speed, and tight spatial constraints. An improperly sized setup quickly leads to severe fluid overheating. It causes highly inconsistent actuation speeds during critical operational phases. This mismatch often triggers premature component failure. You will likely see rapid seal degradation or destructive pump cavitation. You simply cannot afford unexpected downtime in modern industrial operations. This guide provides a deeply evidence-based framework for evaluating these systems. We help you size and shortlist fluid power setups accurately. We deliberately shift the focus from basic catalog specifications to long-term lifecycle reliability. You will learn how to effectively audit your load requirements. You will discover how to select control valves correctly. Finally, you will understand how to shortlist the best vendor solutions.
Accurate HPU sizing requires calculating the exact push/pull force and speed requirements of your linear actuator, rather than relying on standard catalog estimates.
The choice between standalone HPUs and systems with an integrated push rod depends on spatial constraints, duty cycle, and maintenance access.
Evaluating a hydraulic power unit means analyzing thermal management, valve configurations, and vendor support as heavily as pressure and flow limits.
You must clearly define operational targets before selecting any hardware. Evaluating the physical realities of your machinery ensures long-term reliability.
Begin by thoroughly auditing the exact physical requirements of your application. You must calculate the precise mechanical clamping force needed. Determine definitively if your application needs 5 tons or 80 tons of force. Measure the required stroke length down to the millimeter. Engineers frequently underestimate the peak breakaway friction of heavy loads. This critical oversight causes sluggish initial cylinder movements. It also leads to unexpected pressure spikes in the manifold.
Here are the critical load factors to audit:
Maximum extension force.
Maximum retraction force.
Peak breakaway mechanical friction.
Unsupported load holding requirements.
Understanding these specific forces helps you specify the right linear actuator for the job. Do not guess these metrics. Use digital load cells to capture empirical force data. Do not rely on theoretical estimations alone.
Establish a clear and accurate operational cadence. Differentiate clearly between continuous operation requirements and intermittent heavy-load cycles. A system actuating once an hour faces minor thermal stresses. A machine cycling every ten seconds generates immense, compounding heat. Continuous motion cycles rapidly degrade the viscosity of standard hydraulic fluids. You must also account for extreme ambient temperatures. Cold environments drastically thicken standard AW32 hydraulic oil. This thickening causes pump cavitation during cold morning startups. Hot environments rapidly destroy standard nitrile rubber seals. You must specify Viton seals for high-temperature operational zones.
Frame your primary evaluation criteria around the actual required motion type. Does your unique application require micrometer-level positioning accuracy? Or does it rely entirely on brute-force material handling? High-precision manufacturing applications need highly sophisticated proportional control valves. They also require high-resolution linear encoders for position feedback. Brute-force applications prioritize raw volumetric flow and highly durable gear pumps. Match your internal component tolerances directly to your overall precision goals. Over-engineering a brute-force system wastes valuable capital. Under-engineering a precision system destroys product yield rates.
Matching fluid generation to mechanical output demands precise math. You must flawlessly align pressure, flow, and cooling capacities.
System operating pressure directly correlates to the mechanical force generated by the cylinder. Higher system pressure yields significantly more force from the exact same bore size. Do not arbitrarily maximize your pressure settings just to save space. Excessive internal pressure heavily strains cylinder seals over time. It increases leakage risks across all threaded manifold connections. Running a system at 3000 PSI requires vastly different plumbing than running at 1000 PSI. High-pressure setups demand robust steel tubing instead of standard flexible hoses.
Table: Cylinder Force and Pressure Relationship
Bore Size (Inches) | Pressure (PSI) | Approximate Force (Lbs) |
|---|---|---|
2.0 | 1000 | 3,140 |
2.0 | 2000 | 6,280 |
3.0 | 1000 | 7,065 |
3.0 | 2000 | 14,130 |
Pump flow rates directly dictate your final actuation speed. You must map the exact gallons per minute (GPM) to the internal cylinder volume. This vital calculation tells you the precise extension and retraction cycle times. Always watch out for hidden fluid velocity bottlenecks. Forcing extremely high flow rates through small internal hoses creates excessive fluid friction. This friction generates rapid, destructive heat spikes throughout the fluid circuit. Keep all fluid velocities well within established industry-standard limits. The National Fluid Power Association (NFPA) strictly recommends keeping pressure line fluid velocities below 20 feet per second. Return line velocities must stay below 10 feet per second.
Follow strict, time-tested engineering rules for your reservoir capacity. A standard industry rule of thumb sizes the main reservoir at three to five times the maximum pump GPM. This generous volume allows trapped air bubbles to escape the fluid safely. It also provides crucial exterior surface area for ambient thermal dissipation. Continuous linear motion setups face extreme thermal management risks. You must deeply evaluate ambient air cooling conditions around the machinery. An undersized tank mathematically guarantees eventual fluid overheating. A properly sized hydraulic power unit always balances flow rate demands against sufficient fluid cooling capacity.
Architectural choices dictate your installation footprint and maintenance routine. You must decide between centralized power and decentralized containment.
Centralized pumping units drive multiple remote cylinders across large factory floors.
Pros: Easier maintenance access for cooling components. Highly scalable electrical motor power output. Isolated noise generation far away from operators. Simplified single-point fluid sampling and filtration.
Cons: Extremely complex and costly hose routing requirements. Noticeable fluid pressure drops over long factory distances. High environmental leakage risks across multiple connection points. Vulnerability to total system shutdowns if the main pump fails.

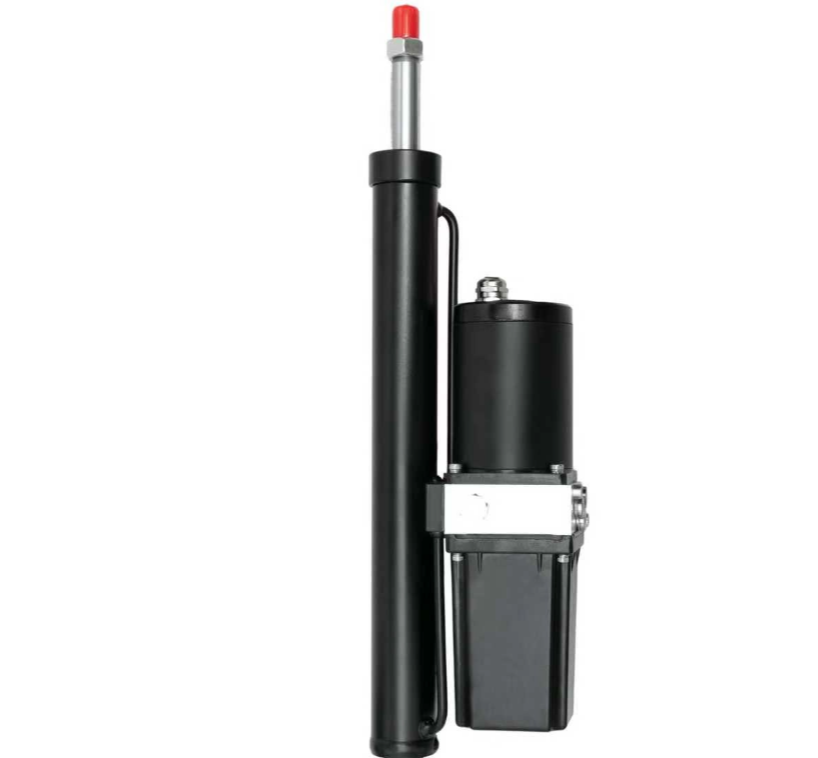

Modern mechanical engineering heavily favors compact, self-contained electro-hydraulic systems. An integrated push rod cleanly combines the pump, reservoir, and cylinder into one sealed envelope. This elegant design reduces mechanical installation complexity drastically. It completely eliminates external plumbing risks on the factory floor. You actively avoid routing rigid steel tubes or vulnerable flexible hoses. These fully sealed units thrive in harsh outdoor mobile environments. They actively prevent abrasive dirt and ambient moisture from entering the sensitive fluid stream. They require significantly less structural mounting space.
Look closely at specialized product lines for niche industrial standards. Specific machinery footprints often require highly tailored physical form factors. For example, evaluating a high-precision NH series actuator makes perfect sense for strict aerospace or medical needs. Specialized component series comply strictly with distinct footprint limitations. They handle harsh environmental compliance standards effortlessly. Always carefully cross-reference the exact vendor specifications against your physical space constraints. Do not force a standard commercial unit into a highly specialized operational role.
Internal components dictate operational lifespan and motion quality. You must scrutinize the pumps, valves, and filters relentlessly.
Be highly skeptical of default catalog pump selections. External gear pumps offer incredibly cost-effective durability. They handle fluid contamination significantly better than other alternatives. However, gear pumps operate quite loudly and lose volumetric efficiency at extreme pressures. Axial piston pumps deliver exceptional high-pressure mechanical efficiency. They adjust their internal fluid displacement dynamically. But they cost significantly more upfront and demand pristine fluid cleanliness. Compare the published efficiency curves closely before buying. Choose your electric motors based strictly on starting torque requirements under full mechanical load.
Your directional valve selection dictates the ultimate smoothness of your linear motion. Standard bang-bang solenoid valves cause sudden, jarring mechanical jolts. These harsh jolts create severe internal hydraulic shock. This pressure shock eventually fractures mounting brackets and tears internal cylinder seals. Proportional control valves offer highly refined acceleration and deceleration profiles. They ramp the fluid flow up and down perfectly smoothly. You must tune the electronic control logic to match your physical mechanical inertia. Smooth valve transitions actively protect the entire downstream mechanical assembly.
Never treat fluid filtration as an optional aftermarket accessory. It remains a critically vital system reliability factor. Microscopic dirt destroys close-tolerance pumps incredibly rapidly. Follow the ISO 4406 fluid cleanliness standards strictly. Frame your overarching filtration strategy around highly specific target cleanliness codes. Install high-quality fiberglass return line filters immediately. Add desiccant air breathers to block all airborne moisture. Proper conditioning extends the operational life of the entire Hydraulic Power Unit indefinitely.
Evaluating vendors requires looking far beyond standard catalog numbers. You need reliable engineering support and long-term maintainability.
Advise your purchasing buyers to scrutinize the manufacturer carefully. Exceptional vendors provide highly robust online sizing calculators. They willingly supply accurate 3D CAD models for your mechanical assemblies. They also offer fully custom manifold design capabilities for unique footprints. Avoid vendors who stubbornly refuse to share detailed internal performance data. You desperately need fully transparent engineering partners. They must help you troubleshoot complex fluid dynamics issues quickly.
Outline the harsh realities of servicing pumps and replacing dirty fluid. Your factory maintenance team needs exceptionally easy access to all critical components. Favor physical designs featuring easily accessible breathers and simple spin-on filters. Demand perfectly clear sight glasses for instant fluid level visual checks. Hidden drain plugs consistently cause severely neglected maintenance routines. Choose structural layouts prioritizing highly human-centric servicing workflows. Fast maintenance directly reduces your unplanned operational downtime.
Use a highly strict checklist for your formal RFQ (Request for Quote) process. Insist on asking vendors for highly specific pump efficiency curves. Demand hard data on precise duty-cycle limitations under your specific load. Verify their warranty conditions under your actual operational assumptions. Never accept generic sales brochures as technical proof.
Vendor Evaluation Checklist:
Request detailed pump efficiency curves at maximum pressure.
Verify the cooling capacity for your specific duty cycle.
Confirm 3D CAD model availability before purchasing.
Review warranty terms regarding seal degradation and fluid heat limits.
The right fluid power setup intelligently bridges the gap between mechanical demand and fluid efficiency. You secure long-term system reliability by meticulously matching fluid dynamics to physical loads.
Actionable Next Steps:
Audit your exact force, speed, and spatial requirements today.
Calculate your specific duty cycle and ambient temperature ranges.
Engage a manufacturer or system integrator using these hard numbers.
Request custom efficiency data before committing to an off-the-shelf solution.
A: First, determine the total internal volume of your cylinder. Multiply the bore area by the required stroke length. Divide this total volume by your desired extension or retraction time. Convert this final figure into gallons per minute (GPM) or liters per minute (LPM). This precise mathematical calculation dictates your required pump size exactly.
A: Choose an integrated system when facing severe space constraints or strict leak prevention mandates. They excel in applications requiring plug-and-play installation without any external hose routing. Mobile equipment, sterile clean rooms, and outdoor marine environments benefit heavily from these completely sealed, self-contained architectures.
A: Overheating usually stems from severely undersized fluid reservoirs and continuous fluid bypass over pressure relief valves. High-frequency actuation without proper cooling circuits traps heat rapidly. Excessive fluid pressure drops through undersized internal hoses also generate significant friction. You must increase reservoir capacity or add dedicated external heat exchangers to survive.
A: Yes, provided you carefully verify strict compatibility metrics beforehand. You must successfully match the maximum pressure ratings. Ensure internal port sizes do not create flow bottlenecks. Additionally, confirm your system control valves can seamlessly handle the precise proportional logic required by high-performance specialized actuators.
