A common misconception plagues the fluid power industry. Many buyers search for a Hydraulic Power Unit vs Hydraulic Cylinder comparison as if they are competing alternatives. In reality, they rarely compete. They are interdependent components forming a single fluid power system. The power unit acts as the "heart" of the machine. It generates essential fluid flow and pressure. Conversely, the hydraulic cylinder serves as the "muscle." It converts this fluid energy into precise linear motion.
When engineers debate these terms, they actually face a deeper architectural decision. You must choose between building a traditional split system or adopting a modern, self-contained solution. Traditional systems rely on centralized pumps pushing fluid through hoses to remote cylinders. Modern alternatives integrate these elements into a single package. In this guide, you will learn how these components interact. We will also explore when decentralized systems make more sense for your unique application requirements.
Symbiotic Function: HPUs generate the hydraulic pressure and flow; hydraulic cylinders consume it to create mechanical force and speed.
Sizing Dependencies: A cylinder's force capacity is dictated by HPU pressure, while its stroke speed relies on the HPU's flow rate (GPM/LPM).
The True Alternative: The actual decision point for modern engineers is choosing between a traditional centralized HPU driving remote cylinders versus deploying decentralized electro-hydraulic actuators.
Cost vs. Scalability: Centralized HPUs are highly cost-effective for operating multiple cylinders simultaneously, whereas integrated actuators reduce footprint and leak risks for single-axis automation.
To design an efficient system, we must first separate fluid conditioning from physical actuation. These two halves of the hydraulic equation perform vastly different roles. Understanding their mechanical boundaries helps prevent costly specification errors.
The hydraulic power unit operates as the centralized energy source for the entire circuit. It does not perform any physical lifting or pushing. Instead, it conditions, stores, and pressurizes the fluid. A standard unit contains several critical sub-components.
Prime Mover: An electric motor or internal combustion engine supplies rotational mechanical energy.
Hydraulic Pump: The pump draws fluid from the tank and pushes it into the system. It dictates the fluid volume moved per minute.
Reservoir: The tank stores hydraulic fluid. It allows air bubbles to escape and dissipates excess heat.
Directional Control Valves: These manifolds route the pressurized fluid to the correct ports on the external actuators.
The primary role of this unit is maintaining specific pressure thresholds. If the system demands 3,000 PSI to move a heavy load, the power unit must generate and sustain that pressure consistently.
The cylinder executes the physical work. It receives pressurized fluid and translates it into linear push or pull force. The internal construction is mechanically straightforward but requires tight machining tolerances.
Barrel: The robust outer tube holds the fluid under extreme pressure.
Piston: A precisely machined disc separates the internal chambers. Fluid pushing against this piston generates movement.
Rod: Connected to the piston, the rod extends outside the barrel to interface with external loads.
Specialized applications demand unique variations of this mechanism. For example, heavy-duty mobile equipment often requires multi-stage telescopic lifting. Engineers frequently specify a TG oil cylinder for these scenarios. These specific cylinders provide massive lifting force in highly constrained retracted spaces. They excel in dump trucks and industrial lifts where space is limited but load demands are extreme.
You cannot specify a cylinder without knowing the output capabilities of your power unit. The two components share a direct mathematical dependency. Modifying the power source instantly alters the physical performance of the linear actuator.
The maximum operating pressure of the fluid power unit determines the physical load the cylinder can move. This relationship relies on surface area. When pressurized fluid enters the barrel, it presses against the surface area of the piston. Higher pressure (PSI or Bar) yields higher linear force (Pounds or kilonewtons).
If you pair a massive cylinder with a weak pump, the system will stall under heavy loads. Conversely, pushing excess pressure into an undersized actuator risks structural failure or seal blowouts. You must align the system pressure rating with the specific mechanical load requirements.
While pressure dictates strength, fluid flow dictates speed. The volume of fluid moved by the pump controls how quickly the actuator extends and retracts. We measure this flow in Gallons Per Minute (GPM) or Liters Per Minute (LPM).
A high-flow pump fills the internal barrel chamber rapidly. This rapid filling pushes the piston forward at higher velocities. If an application requires rapid cycle times, you need a larger pump displacement. Keep in mind, forcing high flow through narrow ports creates excessive heat. You must size your hoses and fittings correctly to handle the desired velocity.
Continuous operation generates significant thermal energy. Fluid forced through tight valves at high velocities naturally heats up. The reservoir size becomes your primary defense against overheating. A properly sized tank holds enough fluid to allow thermal dissipation between cycles. If you run high-frequency cycles continuously, inadequate tank volume will cause fluid breakdown. Degraded fluid destroys pump bearings and degrades internal actuator seals.
System Performance Dependency Chart
HPU Output Metric | Cylinder Reaction Metric | Design Impact |
|---|---|---|
Operating Pressure (PSI/Bar) | Push/Pull Force (Lbs/kN) | Determines the maximum weight the system can lift. |
Fluid Flow Rate (GPM/LPM) | Extension Speed (Inches/Sec) | Determines the cycle time for a complete mechanical movement. |
Reservoir Volume (Gallons/Liters) | Thermal Stability | Prevents fluid overheating during continuous duty cycles. |
Modern fluid power design goes beyond matching pumps to bore sizes. Today, engineers face a distinct choice regarding system architecture. You must decide how to physically route and manage your fluid power. This decision profoundly impacts maintenance, footprint, and installation complexity.
The traditional approach separates fluid generation from physical movement. You install a large, centralized power unit in a dedicated location. You then route flexible hoses and rigid steel lines to various actuators distributed across the machine.
Best for:
Multi-axis systems requiring synchronized movements.
Heavy mobile equipment like excavators or cranes.
Large industrial stamping presses.
Environments where extreme vibration might damage integrated electronics.
This architecture centralizes your maintenance points. You can check fluid levels, change filters, and inspect the electric motor from one location. However, it requires extensive plumbing. Running long hoses increases the risk of pressure drops and fluid leaks.

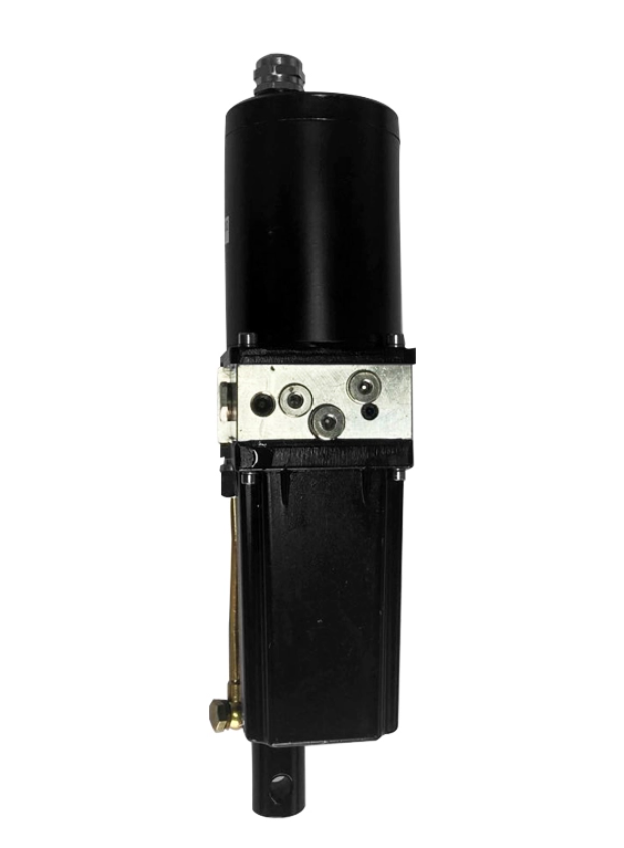

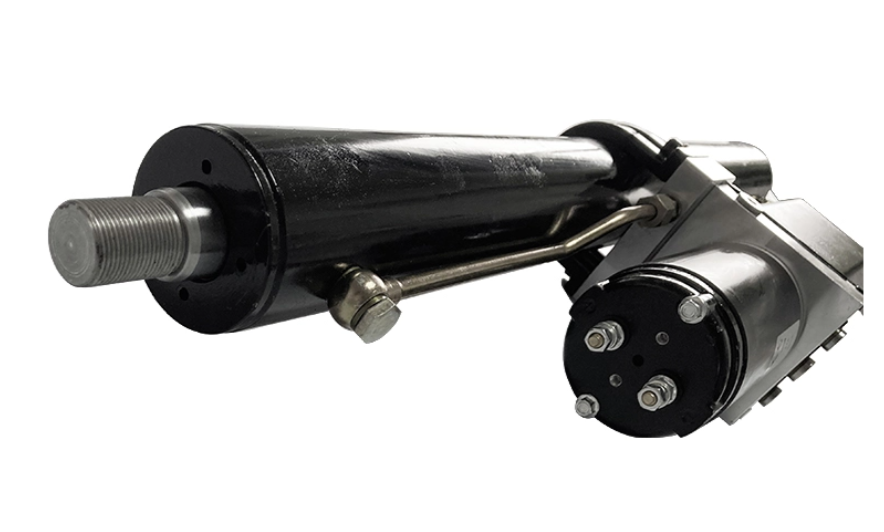

The industry rapidly embraces decentralized architectures. An electro-hydraulic actuator represents this shift perfectly. It functions as a compact, hybrid device. The manufacturer integrates a micro-pump, a small reservoir, control valves, and the cylinder itself into one self-contained footprint.
This design eliminates external hoses entirely. You simply supply electrical power and control signals directly to the unit. The internal pump shuttles fluid back and forth across the internal piston to create motion.
Best for:
Clean manufacturing environments like medical device assembly.
Space-constrained applications lacking room for a central tank.
Single-axis movements where routing complex hydraulic lines is cost-prohibitive.
Outdoor applications requiring strict environmental compliance against fluid spills.
Choosing between a centralized system and localized actuators requires careful analysis. You must evaluate your specific operational environment. Different industries prioritize different metrics when designing automation.
Space considerations often dictate your final architecture. Traditional systems demand significant floor space. The central tank must remain accessible for maintenance. Furthermore, routing rigid steel lines requires careful engineering. You must design pathways protecting hoses from abrasion and external damage.
Integrated hybrid units solve this problem. They only occupy the physical space required for the actuator body itself. You eliminate the need for centralized fluid storage. This compact footprint proves invaluable in robotic cells and tightly packed mobile chassis designs.
Fluid leaks represent a major liability. In traditional systems, every hose connection, fitting, and manifold block introduces a potential leak point. Constant vibration loosens fittings over time. Hose materials degrade when exposed to UV light or harsh chemicals. Maintaining a split system requires rigorous inspection schedules to prevent environmental spills.
Self-contained units mitigate this risk entirely. Manufacturers seal these fluid systems for life. Because they lack external hoses, the risk of a catastrophic fluid blowout drops to near zero. This sealed design ensures compliance in food processing and agricultural environments.
Budgetary constraints heavily influence architectural choices. We must compare the upfront capital expenditure of both approaches. Centralized systems offer excellent economies of scale. Purchasing one large electric motor and pump to run four standard cylinders is highly cost-effective. The incremental cost of adding a fifth cylinder remains low. You simply add another valve block and run more hose.
Conversely, buying four independent hybrid units carries a high upfront cost. Each unit contains its own electric motor and precision pump. However, if your machine only requires a single isolated movement, purchasing one integrated unit is significantly cheaper than building an entire central power station just to run one axis.
Deploying fluid power successfully requires foresight. Design flaws often emerge during installation or early testing phases. Understanding common pitfalls helps you specify better hardware.
Fluid contamination destroys hydraulic components faster than any other factor. In split systems, the initial assembly poses a massive risk. Cutting hoses and threading fittings introduces metal shavings and debris into the circuit. This contamination travels directly into the pump housing. It scores the internal gears and ruins volumetric efficiency. It also damages the delicate rod seals on the actuators.
You must flush traditional lines thoroughly before commissioning. Decentralized units avoid this risk. They arrive from the factory pre-filled, sealed, and tested under clean-room conditions.
Power availability dictates hardware selection. Large centralized units demand robust electrical infrastructure. Industrial pumps frequently require heavy 3-phase power drops. You must also design structural mounting pads. High-flow pumps generate significant vibration. You need isolation mounts to prevent structural fatigue.
Localized actuators offer easier integration. Many run on standard single-phase AC or low-voltage DC power. You can plug them directly into existing electrical networks. They integrate seamlessly alongside standard electric servo motors.
Mismatched components cripple system performance. Engineers often over-specify physical hardware for safety margins. For instance, selecting an unnecessarily massive lifting mechanism ensures structural safety but demands enormous fluid volume. If you pair this oversized mechanism with an average-sized pump, you experience sluggish cycle times.
The Speed Trap: Under-specifying flow capacity ruins production throughput. The machine will lift the weight, but it will do so at a fraction of the required speed.
The Heat Trap: Over-specifying flow pushes too much fluid through small directional valves, generating extreme heat and breaking down oil viscosity.
The Force Trap: Under-specifying pressure ratings causes system stalls. The fluid will simply bypass over the relief valve instead of moving the load.
Moving from theory to procurement requires a systematic approach. You must translate your physical requirements into mechanical specifications.
Start by counting every distinct linear movement your machine requires. Map out their locations. Are they clustered close together, or spread far apart? Use a simple rule of thumb. If your machine requires multiple synchronized movements, favor a centralized fluid source. If you only need one or two isolated movements, heavily consider integrated hybrid units.
Never browse hardware catalogs without establishing your math first. Define the absolute maximum push and pull force required for your application. Factor in worst-case friction and payload weight. Next, define your required cycle time. How many seconds do you have to fully extend and retract the mechanism? These two numbers dictate your required system pressure and flow rate.
Fluid dynamics involve complex variables. Pressure drops occur over long hose runs. Fluid viscosity changes based on ambient temperature. We highly recommend engaging a certified fluid power engineer before finalizing your bill of materials. They utilize specialized software to run exact calculations on fluid velocity, thermal load, and system efficiency.
The perceived debate between fluid sources and actuators is easily resolved. They do not compete; they collaborate. The true engineering challenge lies in how you structure their relationship. You must align your power generation precisely with your physical force requirements.
Understand the dependency: Your power source dictates the pressure and flow. Your linear actuator consumes them to dictate physical force and speed.
Evaluate your environment: Decide if your application tolerates external hoses or demands a sealed, decentralized approach.
Prevent early failures: Focus heavily on contamination control and proper thermal management during the design phase.
Calculate before buying: Always establish your maximum load and minimum cycle time before selecting hardware sizes.
Your final procurement decision rests entirely on system architecture. By carefully evaluating footprint constraints, maintenance capabilities, and necessary scalability, you will build a more reliable and efficient automated system.
A: Yes. Through the use of manifolds and directional control valves, a correctly sized central unit can operate multiple cylinders. The system can sequence them individually or drive them simultaneously, provided the pump supplies adequate total flow.
A: Match the power unit’s maximum pressure rating to the cylinder’s heavy load requirements. More importantly, ensure the fluid reservoir holds enough volume to fully extend all telescopic stages simultaneously without drawing air into the pump.
A: Choose an integrated actuator when you need the extreme power density of fluid mechanics but lack the physical space for a centralized tank. They are also ideal when environmental compliance strictly prohibits the risk of hose leaks.
