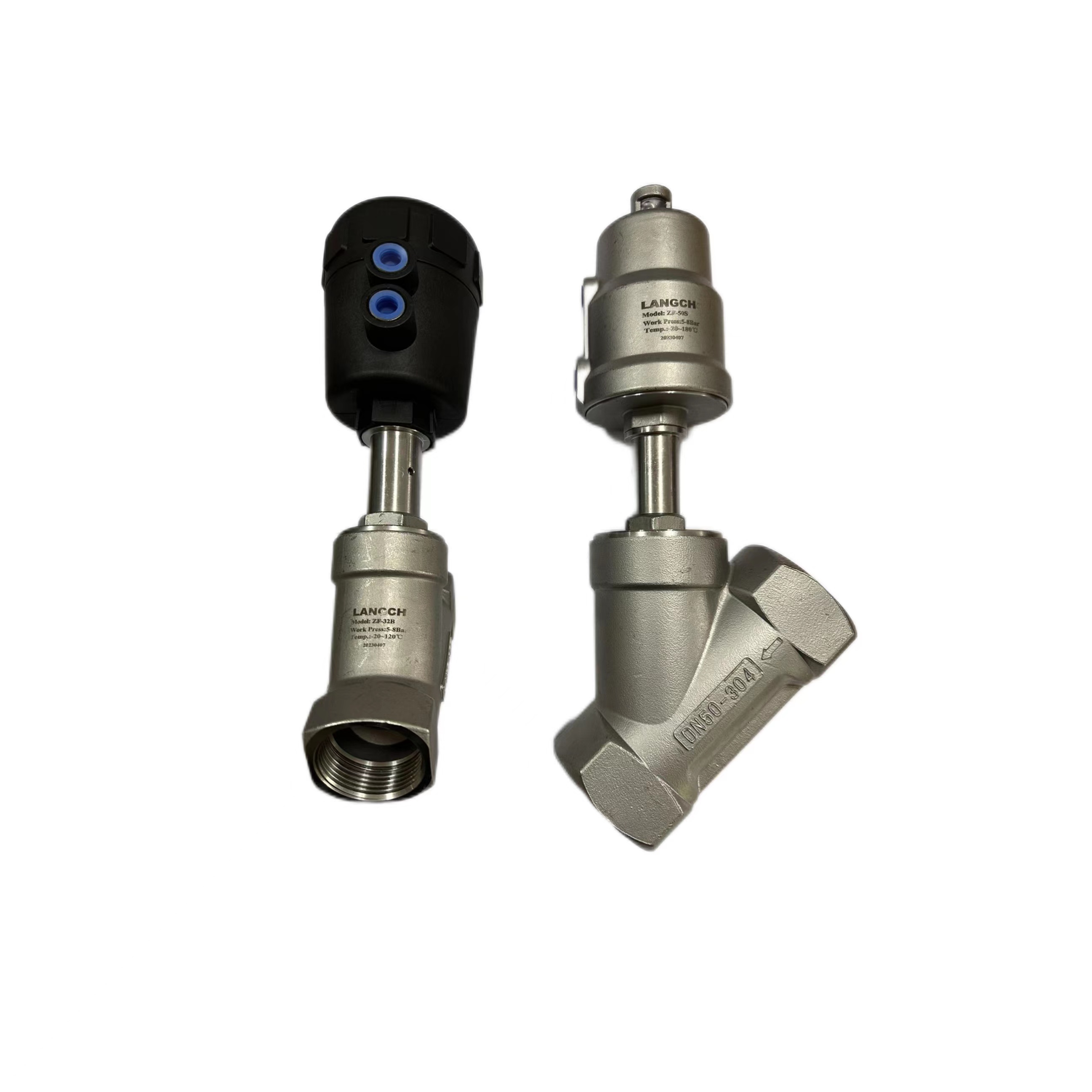

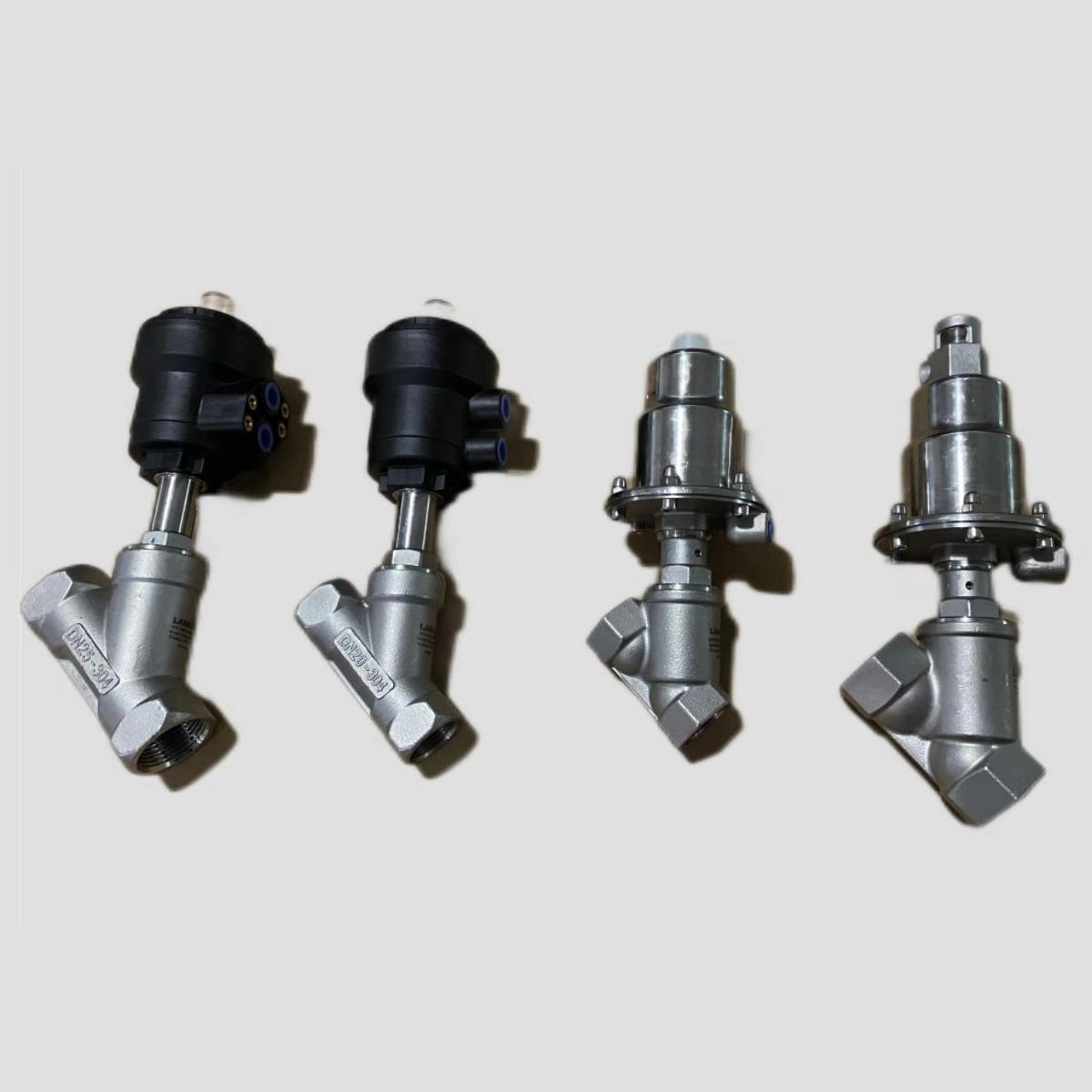

Pneumatic angle seat valve is a type of valve used to control the flow of liquids, gases, or steam in a system. It operates with the help of a pneumatic actuator, which uses compressed air to move the valve’s seat in and out of the flow path. Here are some key features and applications of pneumatic angle seat valves:
Key Features:
1. Design: These valves have a compact design with an angled seat, which allows for a straight-through flow path and minimal pressure drop.
2. Actuation: The pneumatic actuator can be single-acting (spring return) or double-acting (air to open and close).
3. Material: The valve body is often made from stainless steel or brass, making it durable and resistant to corrosion.
4. Seals: The sealing materials, such as PTFE or EPDM, ensure tight shut-off and compatibility with a range of media.
5. Control: They offer fast response times and are capable of handling high-pressure and high-temperature applications.
Applications:
1. Industrial Automation: Used in systems requiring frequent on-off control or modulation, such as in chemical processing, water treatment, and food and beverage industries.
2. Steam and Gas Handling: Ideal for controlling the flow of steam and gases in heating, ventilation, and air conditioning (HVAC) systems.
3. Fluid Control: Employed in the pharmaceutical and biotech industries for precise control of various fluids.
4. High-Temperature Systems: Suitable for applications involving high-temperature media due to their robust construction and material choices.
Advantages:
• Durability: Long-lasting operation due to high-quality materials.
• Efficiency: Minimal pressure loss due to the valve’s design.
• Reliability: Consistent performance in various industrial environments.
• Ease of Maintenance: Simple design allows for easy maintenance and replacement of parts.
Installation and Maintenance:
• Ensure proper alignment and support of the piping system to prevent undue stress on the valve.
• Regularly check and replace seals and other wear components to maintain optimal performance.
• Verify that the actuator and control systems are correctly calibrated for accurate operation.
Pneumatic angle seat valves are essential components in many automated systems, offering reliable and efficient control of media flow in demanding industrial applications.
