While the basic physics of fluid power remain constant, industrial demands on modern hydraulic systems have dramatically shifted. Plant managers and design engineers no longer just look for raw force. They actively evaluate system efficiency, facility footprint, and maintenance predictability. Modern facilities require reliable operation without excessive energy waste.
A Hydraulic Power Unit acts as the prime mover for heavy-duty applications. However, specifying the right unit requires deeply understanding the trade-offs between centralized fluid power and decentralized architectures. Selecting the wrong setup causes severe operational bottlenecks. You must match the system to your exact load profile to ensure longevity.
This guide breaks down the functional mechanics of HPUs. We compare them against modern integrated alternatives. You will also learn the primary criteria for evaluating and shortlisting fluid power systems for industrial applications. By understanding these core elements, you can design a highly resilient mechanical system.
Operational Core: An HPU converts mechanical or electrical energy into fluid power, driving downstream components like a hydraulic cylinder or hydraulic motor to perform high-force work.
Component Synergies: Reliability hinges on the precise matching of the prime mover, pump type, filtration system, and thermal management capabilities to the specific duty cycle.
Architecture Shifts: Evaluators must increasingly weigh traditional centralized HPUs against self-contained alternatives like the integrated hydraulic actuator for applications requiring smaller footprints and fewer leak points.
Specification Reality: Over-sizing an HPU leads to chronic energy waste and overheating, while under-sizing causes premature component failure.
Industrial operations frequently require immense power density. Purely mechanical or electrical systems cannot always generate massive, controllable force inside a constrained space. Standard electric motors grow physically massive when required to output extreme torque. They also overheat quickly under stalled loads. You need fluid power to bridge this gap effectively.
A hydraulic power unit serves as the self-contained heartbeat of a fluid power system. It generates, regulates, and delivers pressurized fluid. This fluid travels through robust piping networks. It eventually drives remote linear or rotary actuators reliably. The unit ensures consistent pressure delivery regardless of minor load fluctuations.
Heavy manufacturing, mobile construction equipment, aerospace ground support, and marine applications heavily rely on these systems. Centralized power distribution becomes necessary when operating multiple tools simultaneously. It is equally vital when driving a large, remote hydraulic cylinder across a factory floor. A single robust unit replaces the need for dozens of localized electric motors. This consolidation significantly streamlines facility architecture.
Understanding a power unit requires looking beyond the steel enclosure. Every unit relies on a tightly integrated chain of mechanical components. A single weak link compromises the entire fluid system. Evaluators must scrutinize these parts to ensure maximum reliability.
The Prime Mover (Electric Motor or Engine): This acts as the primary energy source. You must match motor horsepower to maximum pump flow and pressure requirements. Accurate matching prevents stalling. It also prevents excessive energy draw during peak operational spikes.
The Hydraulic Pump (Gear, Vane, or Piston): The pump converts mechanical energy into fluid flow. Gear pumps offer excellent durability for lower pressures. They resist minor contamination well. Conversely, piston pumps become mandatory for high-pressure applications. They provide variable-displacement efficiency but demand exceptionally clean fluid.
The Reservoir (Tank): The tank stores hydraulic fluid. Critically, it also acts as the primary heat sink and de-aeration chamber. Internal baffles slow the fluid down. This allows trapped air bubbles to escape and heavy dirt to settle. Sizing typically runs two to three times the pump's gallons per minute (GPM). This ratio dictates overall thermal stability.
Filtration and Fluid Conditioning: Filters act as the frontline defense against contamination. Contamination remains the leading cause of hydraulic failure. You must carefully plan the siting of filters. Engineers debate placing them on the return line versus the pressure line. Extreme environments also demand active cooling or heating circuits to maintain stable fluid viscosity.
Valving and Manifolds: Valves direct and limit fluid flow and pressure. Custom manifold blocks consolidate these valves into a single piece of machined metal. They reduce external plumbing significantly. This integration successfully mitigates potential leak points and limits internal pressure drops.
Engineering teams face a major architectural choice. They must decide between generating fluid power centrally or locally. Both approaches carry distinct engineering advantages and distinct environmental drawbacks.
Traditional centralized HPUs drive multiple actuators effectively. They easily isolate noise and heat away from the primary work zone. They also offer highly scalable power for expanding facilities. However, they require extensive hoses and hard piping. Long pipe runs remain vulnerable to system-wide fluid contamination. Installation complexity is notably higher, requiring specialized pipefitters and extensive flushing procedures.

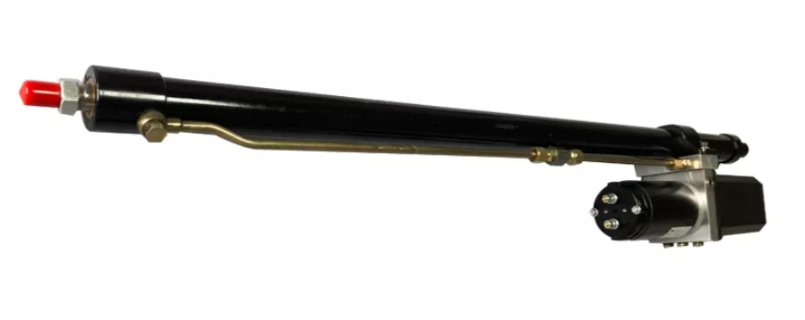

For single-axis or remote applications, engineers increasingly shift toward decentralization. They frequently substitute large central systems with an electro-hydraulic linear actuator or an integrated hydraulic actuator.

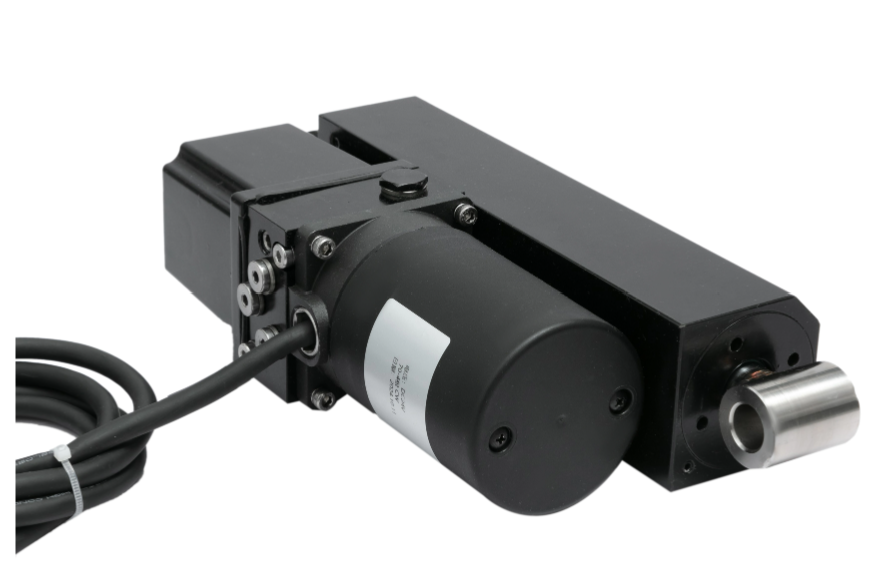

These modern alternatives package the motor, pump, reservoir, and cylinder into one sealed unit. They eliminate complex hose routing entirely. They drastically reduce environmental leak risks on the factory floor. Furthermore, they simplify control system integration via standard electrical interfaces. They offer a compelling alternative when facility footprint limits remain strict.
System Architecture Comparison
Feature | Centralized HPU | Integrated Electro-Hydraulic Actuator |
|---|---|---|
Footprint | Requires dedicated floor space and routing pathways. | Highly compact. Mounts directly at the point of work. |
Leak Potential | High risk due to dozens of external hose connections. | Extremely low. Fully self-contained and sealed. |
Scalability | Excellent. Can add more valves to drive new circuits. | Limited. Designed for single-axis operation. |
Installation | Complex pipe fitting, welding, and system flushing required. | Plug-and-play. Requires only electrical power and control cables. |
Specifying a fluid power system requires precise mathematical calculation. Guesswork leads to catastrophic system failures or massive energy waste. You need a rigorous framework for vetting vendors and aligning hardware features to your specific operational outcomes.
Load and Speed Requirements (Flow & Pressure): You must establish accurate pressure parameters to meet exact force requirements. You must determine the correct flow rate to meet desired cylinder extension speeds. Estimating these metrics based on historical specs poses a massive risk. It often results in oversized, highly inefficient systems. Always calculate the actual physical load.
Duty Cycle Profiling: You must differentiate between continuous and intermittent operation. A unit running constantly generates significant heat. Systems handling highly variable duty cycles justify variable frequency drives (VFDs). You might also specify variable displacement pumps. These technologies minimize energy consumption by dialing back flow when the machine idles.
Environmental and Compliance Constraints: Operating environments dictate component selection.
Temperature Extremes: Cold environments thicken oil, causing pump cavitation. Hot environments thin the oil, reducing lubrication. You often require specialized seals or active fluid heaters and coolers.
Acoustic Limits: Standard gear pumps generate loud, whining noises. Workplace safety standards often demand low-noise vane pumps or dedicated sound-dampening enclosures.
Fluid Requirements: Heavy industries sometimes mandate fire-resistant or biodegradable fluids. These specialized fluids heavily dictate seal material compatibility. Standard nitrile seals may dissolve if exposed to incorrect synthetic fluids.
Procuring the unit solves only half the engineering challenge. Post-purchase realities often determine the actual success of the installation. Poor adoption practices and ignored maintenance burdens quickly destroy premium hardware.
Installation and commissioning carry the severe risk of initial contamination. Metal shavings from newly cut pipes easily enter the fluid stream. These microscopic shards shred internal pump tolerances within hours. Proper flushing protocols are absolutely non-negotiable. Rigorous commissioning tests ensure long-term warranty validity and reliable daily operation. Facilities should demand certified ISO cleanliness fluid standards before starting the primary motor.
Long-term reliability is largely driven by strict fluid management. Many operators treat fluid power as a "set and forget" technology. This mindset guarantees failure. Facilities must commit to routine fluid analysis. They must execute timely, schedule-based filter replacements. Constant thermal monitoring prevents catastrophic pump failures. Oil running consistently above normal parameters breaks down chemically, creating harmful sludge.
Energy inefficiency represents a hidden operational burden. Poorly specified systems constantly bypass excess fluid over a relief valve. This action turns mechanical energy directly into wasted heat. It heavily taxes your electrical infrastructure. It also requires outsized, energy-hungry cooling systems to stabilize oil temperatures. Shortlisting logic must prioritize overall system efficiency. Evaluators should focus intensely on the exact ratio of electrical input to actual mechanical output.
Understanding how a hydraulic system works acts as only the first step. The true engineering challenge lies in accurately sizing the internal components. We must manage thermal loads and fluid contamination risks diligently. Deciding between a centralized architecture or decentralized integrated actuators ultimately defines system reliability.
Before issuing an RFQ, operational teams should audit their specific load, speed, duty cycle, and spatial constraints. Engage directly with a fluid power application engineer. Map these physical variables against both traditional and electro-hydraulic solutions. This rigorous process ensures a system optimized for absolute reliability and peak operational efficiency.
A: The pump merely moves the fluid by converting mechanical energy into flow. The power unit (HPU) acts as the complete, self-contained system. It includes the pump, the electric motor driving it, the fluid reservoir, and the specialized valving necessary to control the entire circuit safely.
A: Sizing begins at the actuator, such as the cylinder. You must calculate the exact physical force and speed required to move your load. This calculation dictates the necessary system pressure and flow rate. Consequently, it dictates the required pump displacement, motor horsepower, and minimum reservoir capacity.
A: Integrated units work beautifully when physical space is exceptionally limited. They are perfect when you need to eliminate external hydraulic hoses to prevent fluid leaks. They also excel when upgrading a single mechanical axis to fluid power while utilizing existing electrical control infrastructure.
