MIQ001-1,MIQ002,MIQ009,MIQ017-3,MIQ021,MIQ023
LANGCH
A solenoid valve armature is a critical component in solenoid-operated valves, which control the flow of liquids or gases in various applications. Here’s a detailed explanation of the solenoid valve armature and its function:
Components and Function:

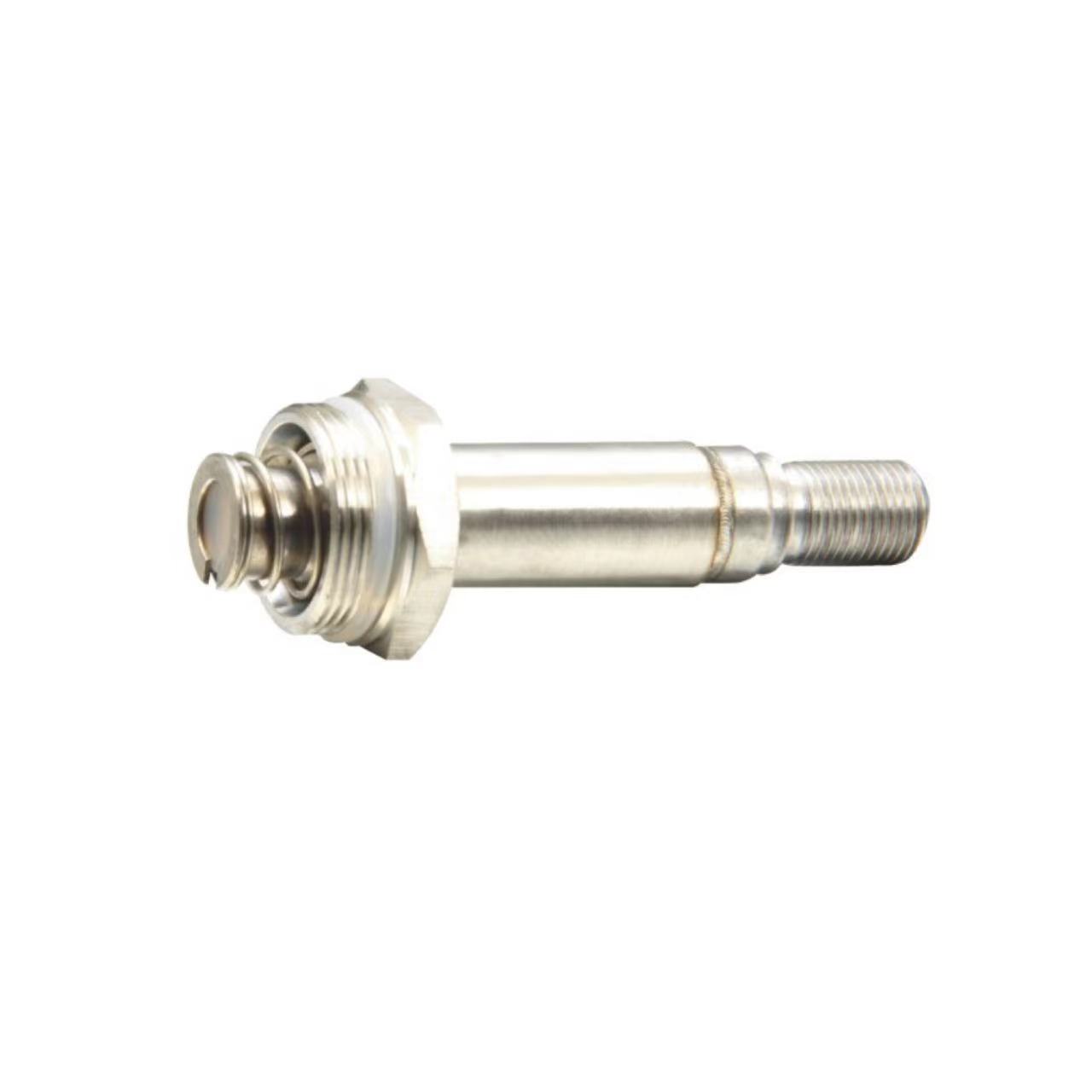

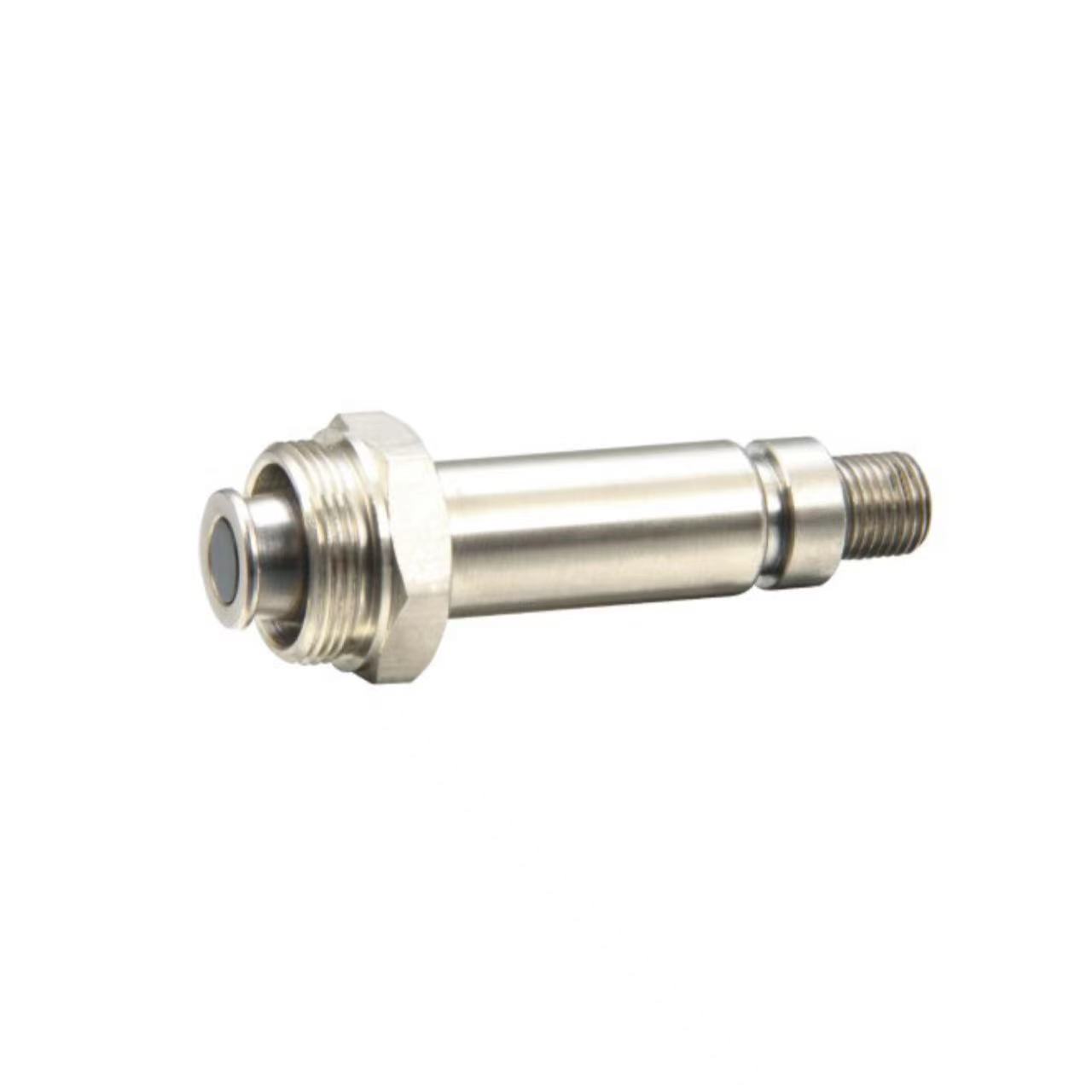

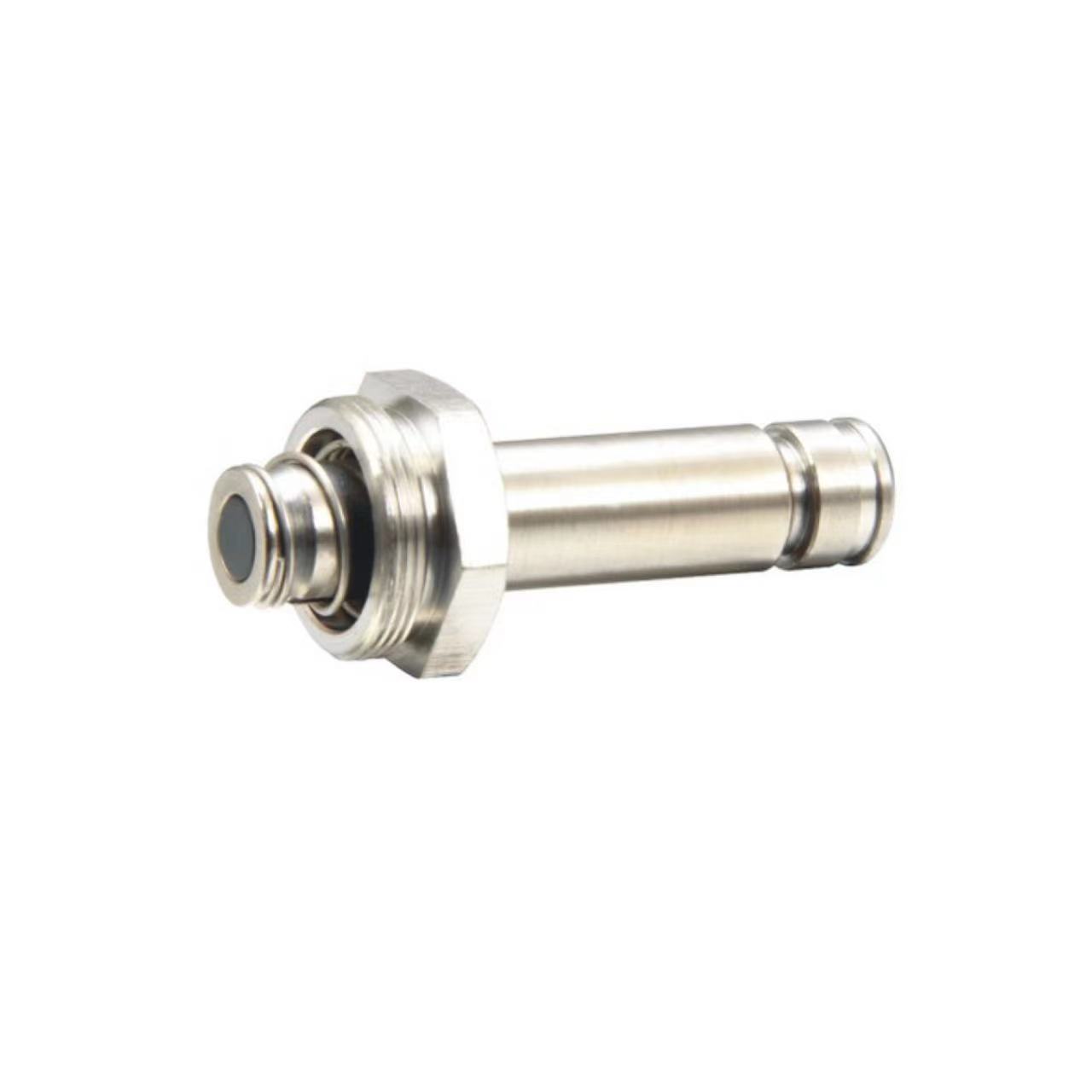

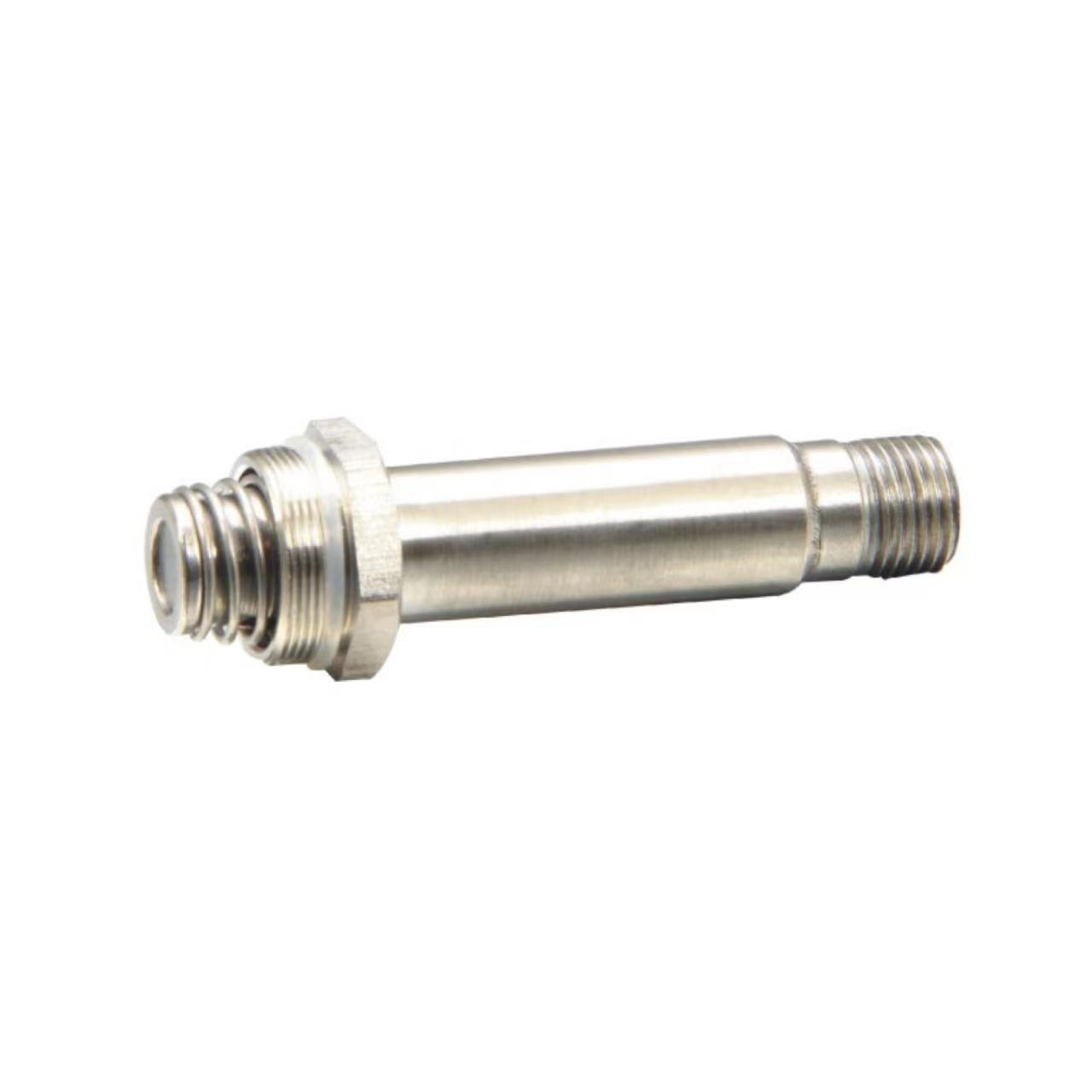

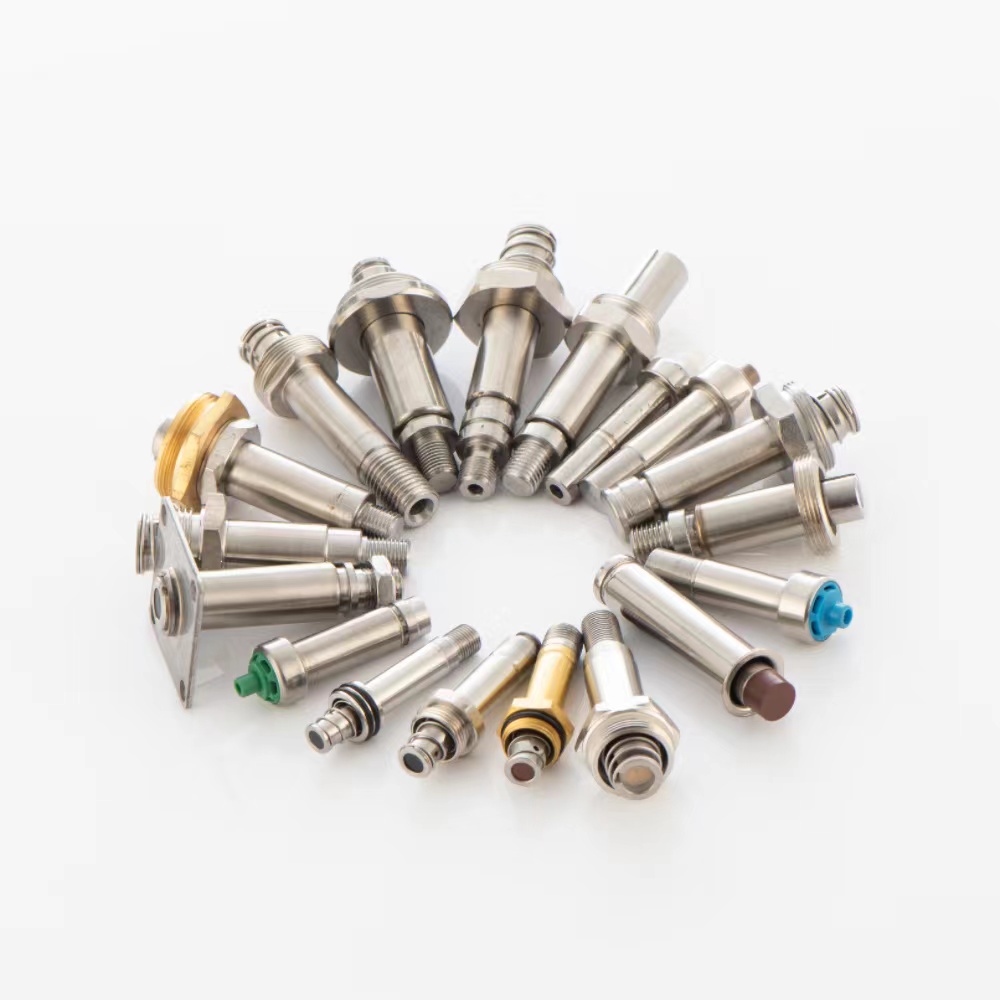

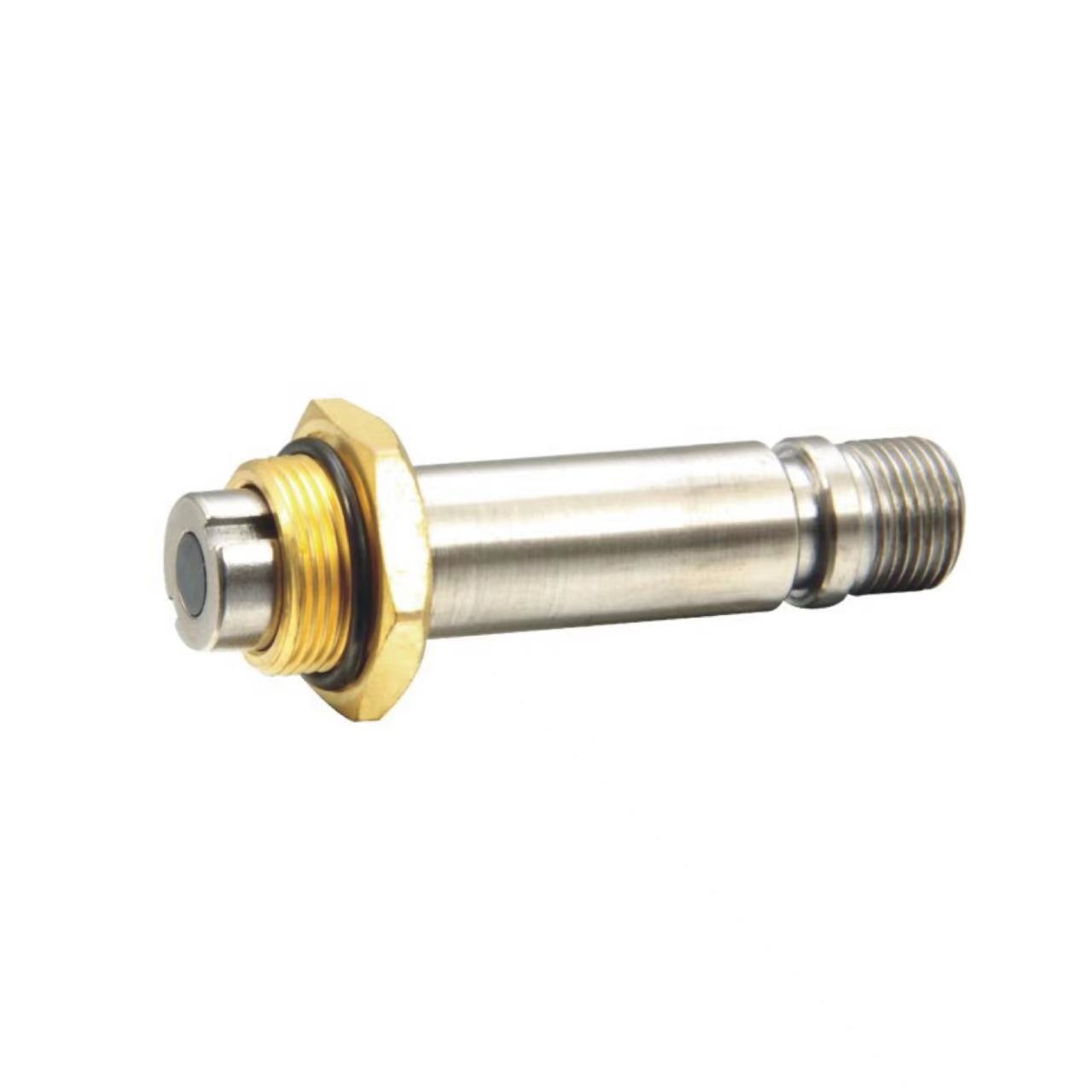

1. Armature (Plunger): The armature in a solenoid valve, often referred to as the plunger or core, is typically made of a ferromagnetic material like iron. It is designed to move within the solenoid coil’s magnetic field when the coil is energized.
2. Solenoid Coil: This is a coil of wire that generates a magnetic field when an electric current passes through it. The coil is typically wound around a cylindrical tube.
3. Valve Body: The housing that contains the flow passage, inlet, and outlet ports, along with the seat against which the armature presses to control the flow.
4. Spring: In most solenoid valves, a spring is used to return the armature to its default position when the coil is de-energized.
Operating Principle:
1. De-energized State: When the solenoid coil is not energized, the armature is usually held in place by the spring, sealing the valve’s orifice and preventing fluid or gas flow (normally closed valve) or allowing flow (normally open valve).
2. Energized State: When an electric current flows through the solenoid coil, it creates a magnetic field that pulls the armature against the spring force. This movement opens the valve (normally closed) or closes it (normally open), allowing or stopping the flow of the fluid or gas.
Types of Solenoid Valves:
1. Direct-Acting Solenoid Valves: The armature directly opens or closes the orifice. These valves are used for low flow rates and simple on/off control.
2. Pilot-Operated Solenoid Valves: The armature controls a pilot orifice that, in turn, controls a larger main orifice. These valves are used for higher flow rates and can operate with lower power consumption.
Applications:
• Industrial Automation: For controlling the flow of air, water, oil, and other fluids in manufacturing processes.
• HVAC Systems: For regulating refrigerants and controlling air and water flow.
• Medical Devices: For precise control of gases and liquids in devices like ventilators and anesthesia machines.
• Automotive Systems: In fuel injection systems, emission control systems, and various fluid control mechanisms.
• Irrigation Systems: For controlling water flow in sprinkler and drip irrigation systems.
Advantages:
• Precision Control: Solenoid valves provide precise control of fluid and gas flow with quick response times.
• Remote Operation: They can be easily controlled remotely by electrical signals, allowing integration into automated systems.
• Reliability and Durability: Made with robust materials and designed for repeated operation, solenoid valves are reliable and long-lasting.
In summary, the armature in a solenoid valve is a movable component that interacts with the solenoid coil’s magnetic field to control fluid or gas flow. Its efficient and precise operation makes it indispensable in various industrial, medical, and automotive applications.
